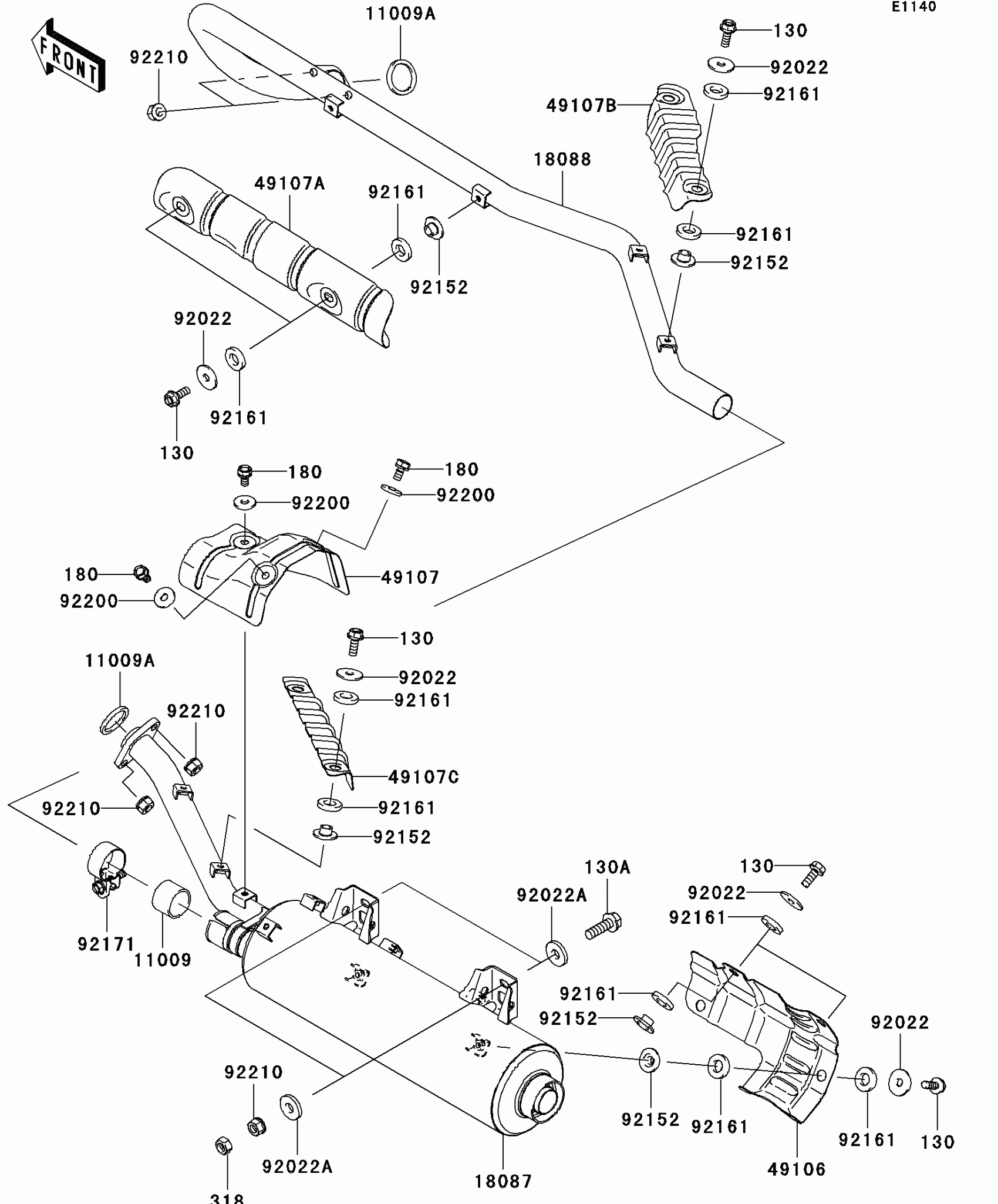

Kawasaki Brute Force® 650 4x4i Muffler(s) Diagram

Description

Price

11009

GASKET,MUFFLER CONNECTING

11009-1865

Unavailable

11009A

GASKET,EXHAUST HOLDER

11009-1894

$8.03

130

BOLT-FLANGED,6X16

130Y0616

$3.63

130A

BOLT-FLANGED,8X25

130Z0825

$2.52

180

BOLT-UPSET-WS,6X12

180Y0612

$2.24

18087

MUFFLER

18087-0098

$295.92

18088

PIPE-EXHAUST

18088-0146

Unavailable

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

49106

COVER-MUFFLER

49106-0048

$20.67

49107

COVER-EXHAUST PIPE,RR

49107-0050

$9.08

49107A

COVER-EXHAUST PIPE,FR

49107-0065

$25.80

49107B

COVER-EXHAUST PIPE,MIDDLE LH

49107-0066

$15.78

49107C

COVER-EXHAUST PIPE,MIDDLE RH

49107-0067

$15.78

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92022A

WASHER,8.5X22X3.2

92022-276

$9.97

92152

COLLAR

92152-0423

$3.90

92161

DAMPER

92161-0319

$3.90

92171

CLAMP

92171-1330

$22.35

92200

WASHER,6.5X18X2.0

92200-2035

$0.43

92210

NUT,8MM

92210-1242

$2.41
