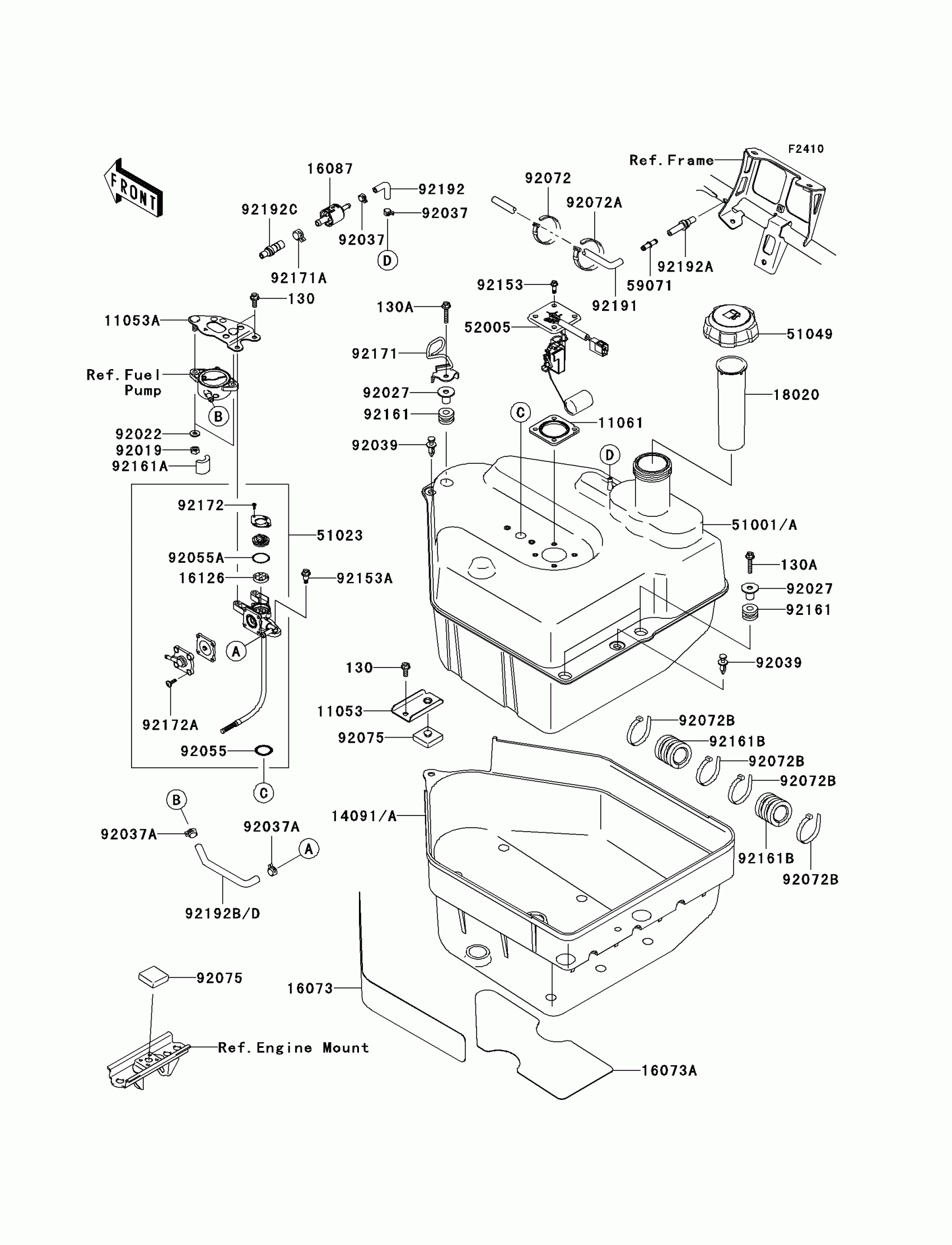

Kawasaki Brute Force 650 4x4i Hardwoods Green HD (Canada Only) Fuel Tank Diagram

Description

Price

11053

BRACKET,FUEL TANK,TOP

11053-0936

$3.62

11053A

BRACKET,FUEL PUMP

11053-1247

$8.03

11061

GASKET,FUEL GAUGE

11061-0071

$23.75

14091A

COVER,FUEL TANK,LWR

14091-0608

Unavailable

16073

INSULATOR,FUEL TANK COVER,SIDE

16073-0033

$7.01

16073A

INSULATOR,FUEL TANK COVER,LWR

16073-0034

$8.10

16087

VALVE-CHECK

16087-0002

$49.02

16126

VALVE

16126-0027

$6.68

18020

BAFFLE,FUEL TANK

18020-0008

$10.54

51001A

TANK-COMP-FUEL

51001-0198

$225.63

51023

TAP-ASSY,FUEL

51023-0022

$139.71

51049

CAP-TANK,FUEL

51049-0001

Unavailable

52005

GAUGE,FUEL

52005-0011

$208.51

59071

JOINT

59071-3717

$3.55

92019

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER,6.2X15X1.2

92022-2373

$0.43

92027

COLLAR,L=16.1

92027-1847

$6.22

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP,TUBE

92037-1505

$4.76

92039

RIVET

92039-1229

$1.19

92055

RING-O,FUEL TAP

92055-0081

$8.12

92055A

RING-O

92055-0111

$5.33

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=186

92072-056

$5.00

92072B

BAND,L=188

92072-1239

$1.73

92075

DAMPER

92075-1882

$8.10

92153

BOLT,FLANGED,5MM

92153-0361

$4.18

92153A

BOLT,6MM

92153-0824

$4.80

92161

DAMPER

92161-0106

$1.73

92161A

DAMPER,FUEL PUMP

92161-0125

$5.92

92161B

DAMPER,FUEL TANK,RR

92161-1111

$6.37

92171

CLAMP,FUEL TUBE

92171-0380

$13.58

92171A

CLAMP

92171-0515

$6.38

92172

SCREW,3X6

92172-0259

$3.39

92172A

SCREW,4X15

92172-0260

$3.55

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,6X30

130BA0630

$1.46

92191

TUBE,CANISTER-SEPARATOR,BLUE

92191-1384

$15.08

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.87

92192A

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.90

92192C

TUBE,FRAME PIPE-CHECK VALVE

92192-0128

$10.95

92192D

TUBE,FUEL

92192-0492

$32.72
