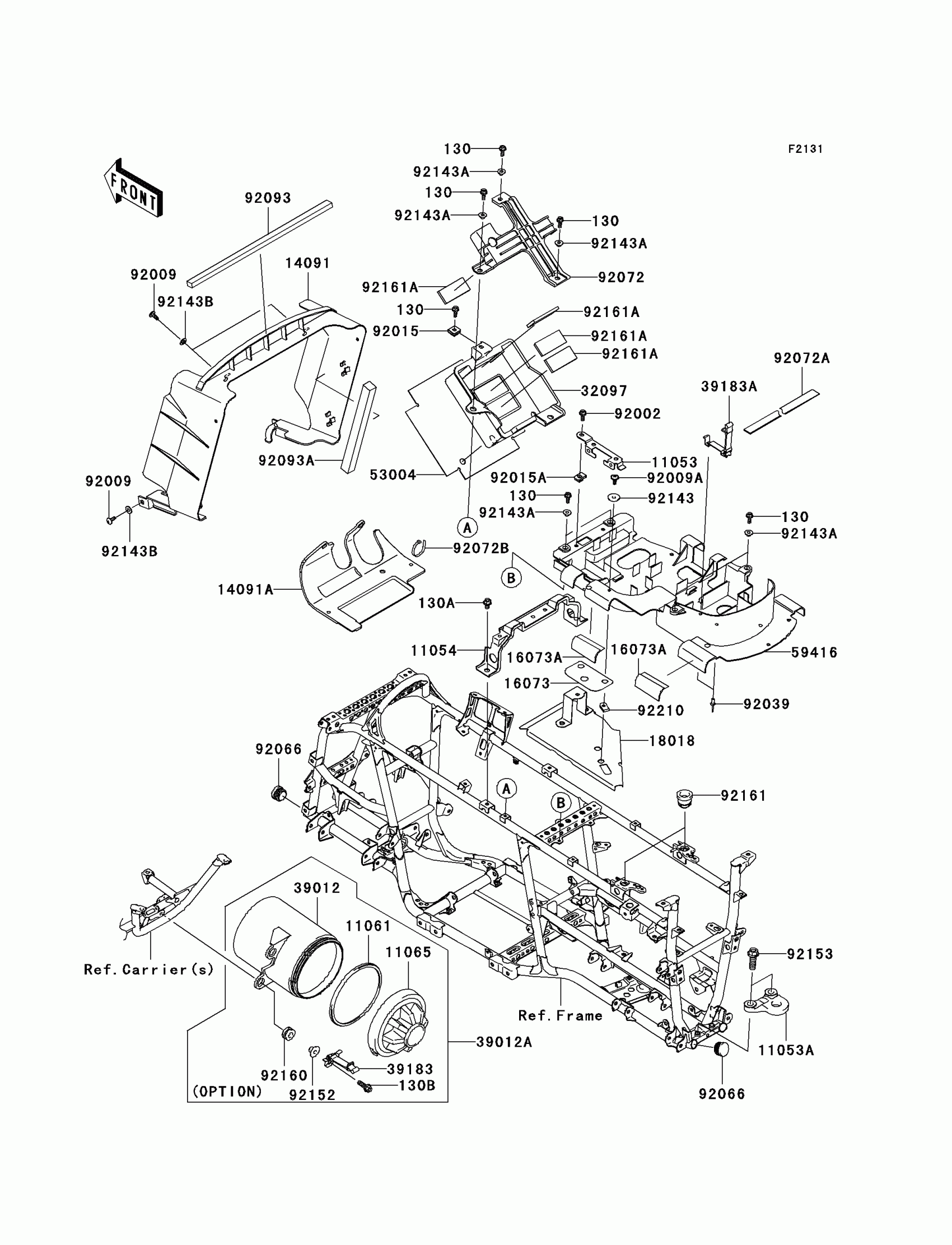

Kawasaki Brute Force 650 4x4i Hardwoods Green HD (Canada Only) Frame Fittings Diagram

Description

Price

11053

BRACKET,FUSE ASSY

11053-0937

$9.26

11053A

BRACKET,TRAILER HITCH

11053-1638

$29.20

11054

BRACKET,SEAT&BATTERY BAND

11054-1236

$44.03

11061

GASKET,TOOL CASE

11061-0072

$2.66

11065

CAP,TOOL CASE

11065-0088

$10.01

14091

COVER,RADIATOR

14091-0338

$19.21

14091A

COVER,AIR CLEANER

14091-0540

$23.61

16073

INSULATOR,ELECTRIC CASE

16073-0035

$4.34

16073A

INSULATOR,ELECTRIC CASE

16073-0036

$4.34

18018

PLATE-HEAT GUARD

18018-0009

$15.97

32097

CASE-BATTERY

32097-0009

$16.95

39012

CASE-STORAGE

39012-0005

$28.27

39012A

CASE-STORAGE,ASSY

39012-5013

$77.36

39183

BAND-ASSY,TOOL BAG

39183-0003

$9.95

39183A

BAND-ASSY,TOOL BAG

39183-1065

$9.49

53004

MAT,BATTERY CASE

53004-0002

$14.87

59416

CASE-ELECTRIC

59416-0004

$30.24

92002

BOLT,6X16

92002-1571

$4.69

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,6MM

92015-1094

$8.58

92015A

NUT,6MM

92015-1602

$7.34

92039

RIVET,4.8MM

92039-3719

$6.22

92066

PLUG

92066-0036

$2.10

92072

BAND,BATTERY

92072-0033

$6.96

92072A

BAND,MAGIC TAPE

92072-0040

$17.77

92072B

BAND,L=188

92072-1239

$1.73

92093

SEAL,L=408

92093-0024

$5.73

92093A

SEAL,L=250

92093-0028

$8.53

92143

COLLAR,L=6.5

92143-1025

$6.22

92143A

COLLAR

92143-1057

$5.00

92143B

COLLAR

92143-1087

$4.31

92152

COLLAR

92152-0155

$12.21

92153

BOLT,FLANGED,12X35

92153-0847

$8.19

92160

DAMPER,MUFFLER CONNECTOR

92160-1151

$17.22

130

BOLT-FLANGED,6X16

130BB0616

$2.06

130A

BOLT-FLANGED,8X12

130BB0812

$0.68

130B

BOLT-FLANGED,8X25

130BB0825

$4.45

92161

DAMPER

92161-0048

$6.37

92161A

DAMPER,30X70X5

92161-1127

$7.65

92210

NUT

92210-1331

$5.53
