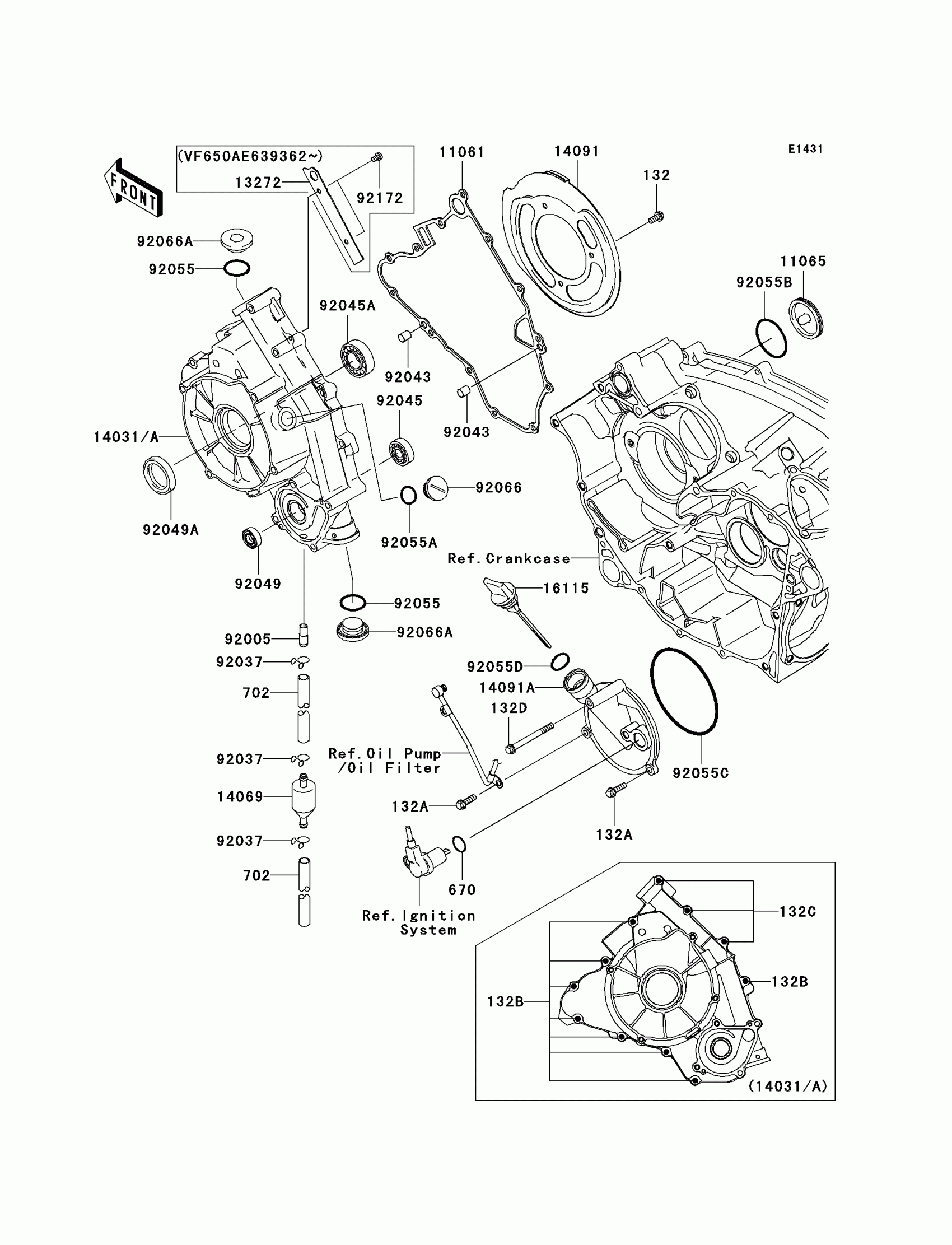

Kawasaki Brute Force 650 4x4i Hardwoods Green HD (Canada Only) Engine Cover(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

132C

BOLT-FLANGED-SMALL,6X55

132BD0655

$5.05

132D

BOLT-FLANGED-SMALL,6X65

132BD0665

$4.76

670

O RING,18MM

670D2018

$1.91

702

TUBE-RUBBER,7X10X35

702A07035

$3.40

11061

GASKET

11061-1119

$21.13

11065

CAP

11065-1151

$16.26

13272

PLATE

13272-0707

Unavailable

14031A

COVER-GENERATOR

14031-0112

Unavailable

14069

BREATHER

14069-1051

$10.19

14091

COVER,BELT CONVERTER

14091-0309

Unavailable

14091A

COVER

14091-1365

$73.61

16115

CAP-OIL FILLER

16115-1072

$14.87

92005

FITTING

92005-1369

$7.56

92037

CLAMP,TUBE

92037-147

$7.34

92043

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,6901

92045-1246

$29.76

92045A

BEARING-BALL

92045-1403

$22.70

92049

SEAL-OIL,SC 12X22X5

92049-1228

$9.28

92049A

SEAL-OIL,HTC 28X45X7

92049-1576

$14.71

92055

RING-O,25.7X2.4

92055-1136

$5.00

92055A

RING-O,20X2

92055-1146

$8.58

92055B

RING-O,44.7X2.4

92055-1279

$7.34

92055C

RING-O,99.5X2.0

92055-1632

$11.16

92055D

RING-O,20X3

92055-2185

$1.03

92066

PLUG,COVER

92066-0011

$15.94

92066A

PLUG,25X8

92066-0012

$11.70

92172

SCREW,5X8

92172-0119

$2.12
