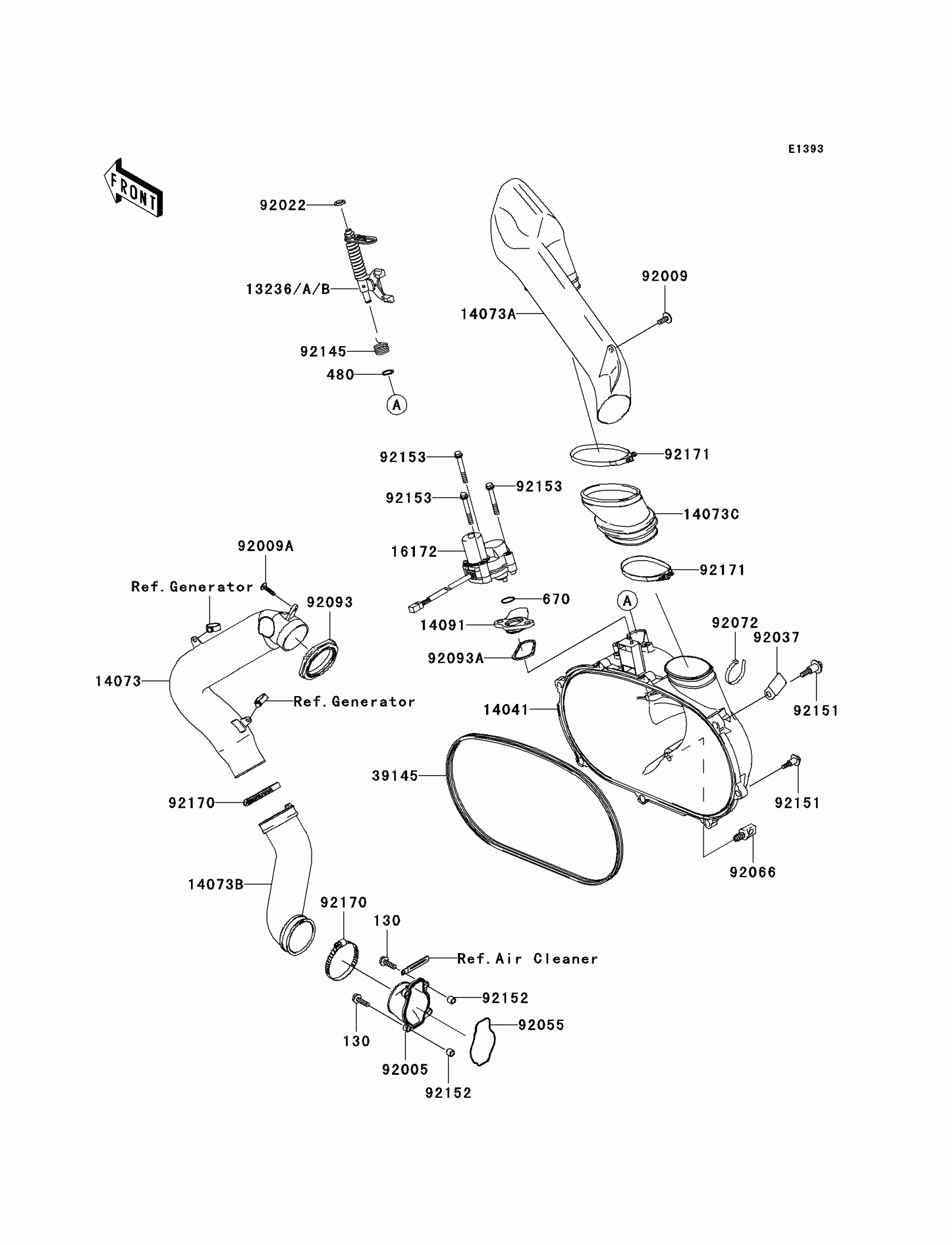

Kawasaki Brute Force 650 4x4i Hardwoods Green HD (Canada Only) Converter Cover Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CD0620

$1.76

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

670

O RING

670D3022

$2.80

13236

LEVER-COMP,YELLOW

13236-0046

Unavailable

13236A

LEVER-COMP,GREEN

13236-0047

Unavailable

13236B

LEVER-COMP,PAINT LESS

13236-0048

$131.68

14041

COVER-COMP

14041-0004

$217.24

14073

DUCT,INTAKE

14073-0025

$23.44

14073A

DUCT,EXHAUST

14073-0026

$30.63

14073B

DUCT,INTAKE JOINT

14073-0027

$22.31

14073C

DUCT,EXHAUST JOINT

14073-0028

$16.47

14091

COVER

14091-1421

Unavailable

16172

ACTUATOR

16172-0006

Unavailable

39145

TRIM-SEAL

39145-1135

Unavailable

92005

FITTING

92005-1387

$8.10

92009

SCREW,6X16

92009-1694

$3.92

92009A

SCREW,TAPPING,5X20

92009-1993

$1.03

92022

WASHER,10.2X16X1

92022-1829

$4.31

92037

CLAMP

92037-1780

$6.57

92055

RING-O

92055-1630

$10.49

92066

PLUG,DRAIN,11X19

92066-1580

$6.28

92072

BAND,L=188

92072-1239

$1.73

92093

SEAL

92093-0016

$7.59

92093A

SEAL

92093-1548

$10.06

92145

SPRING

92145-1567

$2.78

92151

BOLT,FLANGED,6X30

92151-1686

$9.43

92152

COLLAR

92152-1332

$4.18

92153

BOLT,6X47

92153-0678

$3.07

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0208

Unavailable
