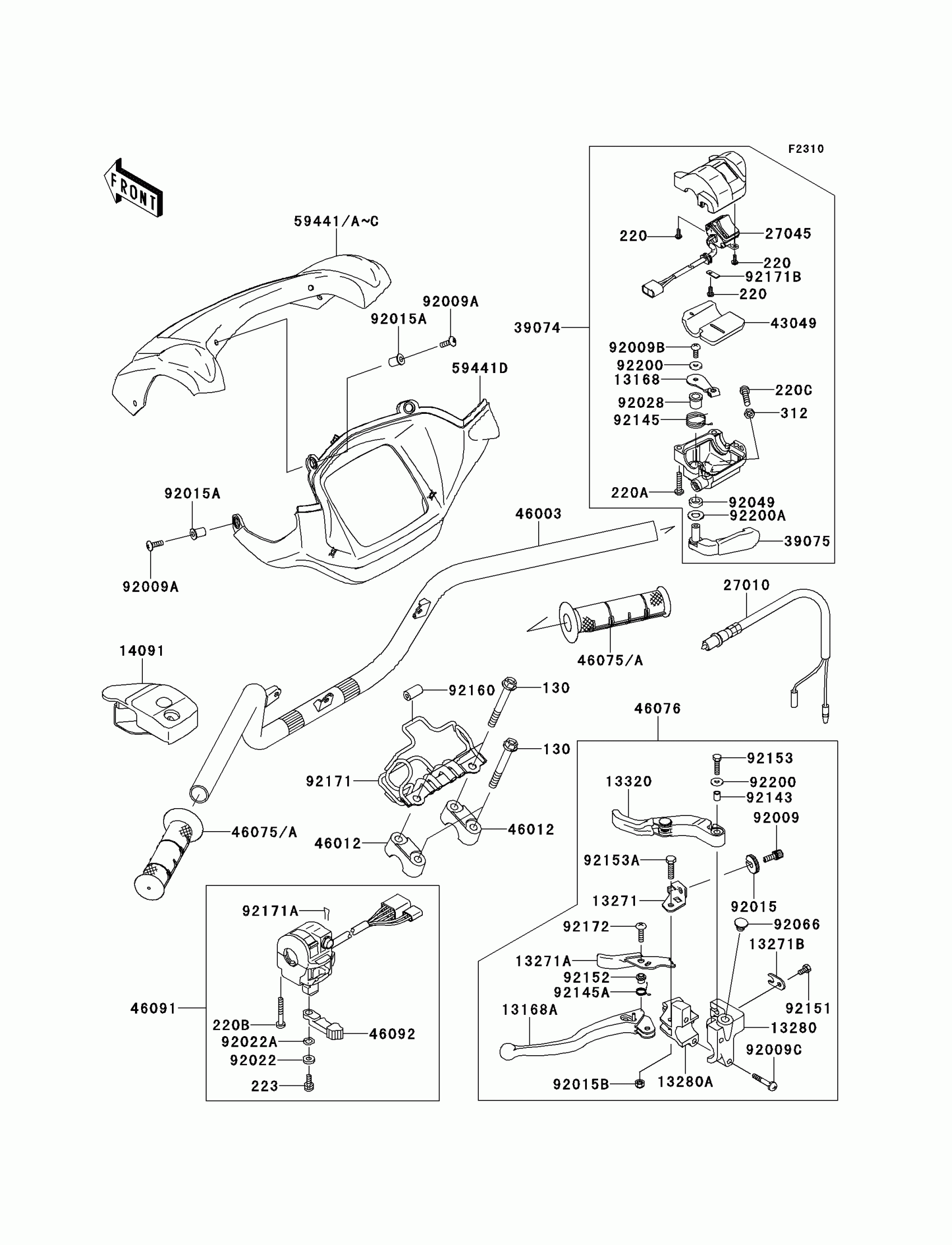

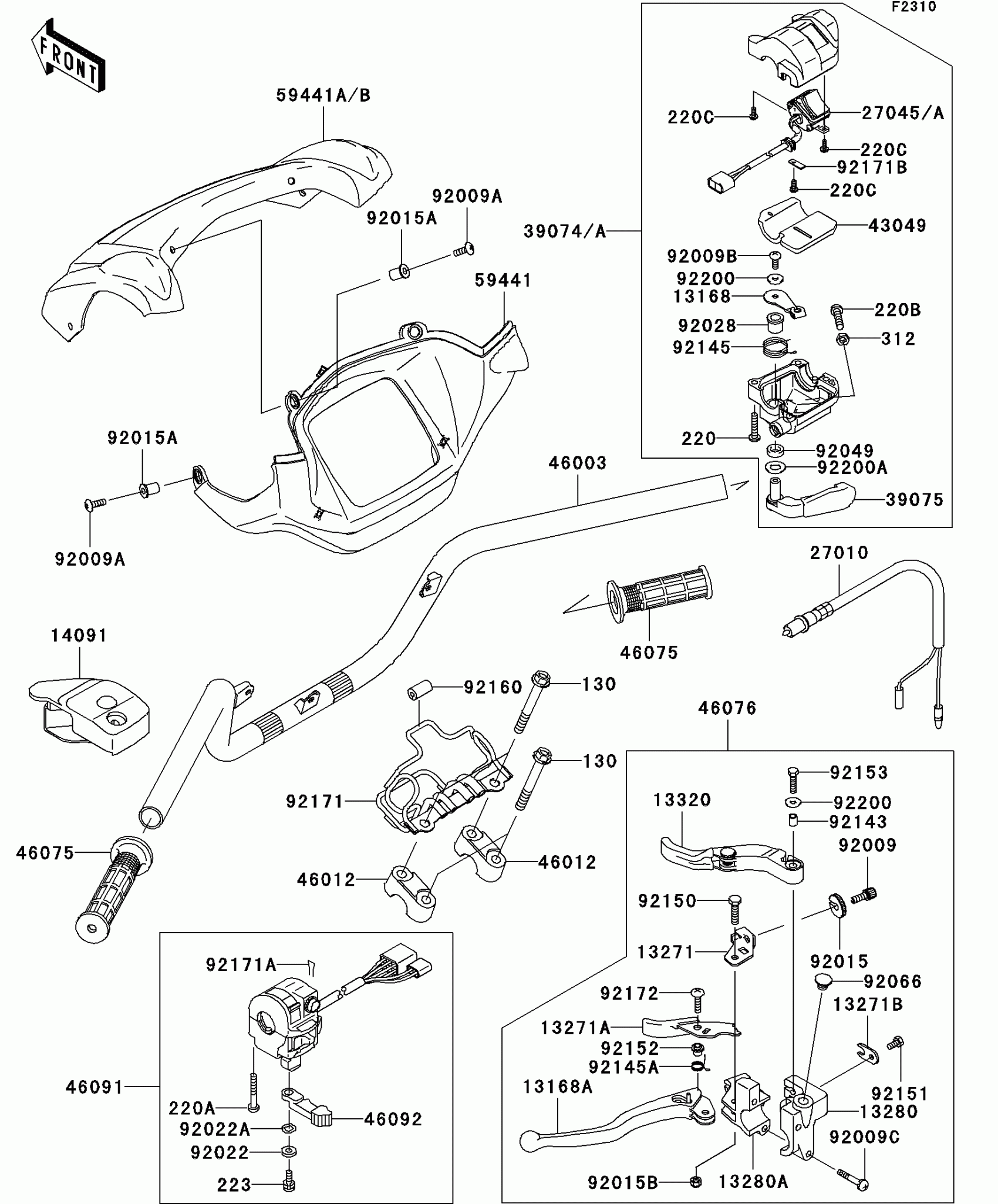

Kawasaki Brute Force® 650 4x4i Handlebar Diagram
#
13168
LEVER
13168-1715
$8.58
13168A
LEVER,LH
13168-1736
$26.86
13271
PLATE,LOCK
13271-1259
$17.76
13271A
PLATE,LEVER LOCK
13271-1635
$14.02
13271B
PLATE,WIRE OUTER STOPPER
13271-1636
$4.18
13280
HOLDER,DIFF LOCK LEVER
13280-1226
$28.44
13280A
HOLDER,LEVER,LH
13280-1227
$28.44
13320
LEVER-ASSY,DIFF LOCK
13320-1018
$63.90
14091
COVER,DIFF LOCK LEVER
14091-1403
$18.20
27010
SWITCH,BRAKE
27010-1294
$35.18
27045
SWITCH-ASSY
27045-0010
$34.82
39074
LEVER-ASSY-THROTTLE
39074-0002
$183.68
39075
LEVER-THROTTLE
39075-1062
$28.70
43049
PACKING
43049-1088
$11.06
46003
HANDLE
46003-1580
$75.62
46012
HOLDER-HANDLE
46012-1168
$16.33
46075
GRIP,HANDLE
46075-7501
$19.78
46076
LEVER-ASSY-GRIP,DIFF LOCK
46076-1238
$103.23
46091
HOUSING-ASSY-CONTROL,LH
46091-1847
$209.09
46092
LEVER-GRIP,CHOKE
46092-1217
$5.47
59441
COVER-HANDLE,RR,F.BLACK
59441-0006-6Z
$22.64
59441A
COVER-HANDLE,FR,C.T.BLUE
59441-0028-11L
$54.88
92009
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92009A
SCREW,5X16,BLACK
92009-1654
$3.13
92009B
SCREW
92009-1959
$2.41
92009C
SCREW,6X30
92009-1961
$2.80
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92015A
NUT,WELL,5MM
92015-1757
$7.29
92015B
NUT
92015-1829
$4.26
92022
WASHER,5MM
92022-1837
$3.35
92022A
WASHER,WAVE,5MM
92022-1838
$3.35
92028
BUSHING
92028-1986
$4.14
92049
SEAL-OIL
92049-1578
$4.67
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92143
COLLAR
92143-1216
$6.34
92145
SPRING
92145-1392
$3.70
92145A
SPRING
92145-1429
$7.58
130
BOLT-FLANGED,8X60
130P0860
$1.74
220
SCREW-PAN-CROS,5X25
220C0525
$3.52
220A
SCREW-PAN-CROS,5X35
220C0535
$2.06
220B
SCREW-PAN-CROS,6X25,B
220C0625
$3.41
220C
SCREW-PAN-CROSS
220D0308
$0.58
223
SCREW-PAN-WS-CROS,5X12
223C0512
$4.32
312
NUT-HEX,6MM,BLACK
312C0600
$3.57
92150
BOLT
92150-1420
Unavailable
92151
BOLT,5X10
92151-1975
$2.41
92152
COLLAR
92152-1176
$4.31
92153
BOLT,5X20
92153-1129
$3.26
92160
DAMPER,4.5X11X20
92160-1074
$7.45
92171
CLAMP,BREATHER TUBE
92171-0378
$78.73
92171A
CLAMP,CLIP
92171-1095
$3.09
92171B
CLAMP
92171-1344
$2.41
92172
SCREW,5X20
92172-0078
$2.80
92200
WASHER
92200-1558
$5.00
92200A
WASHER
92200-1559
$5.00
