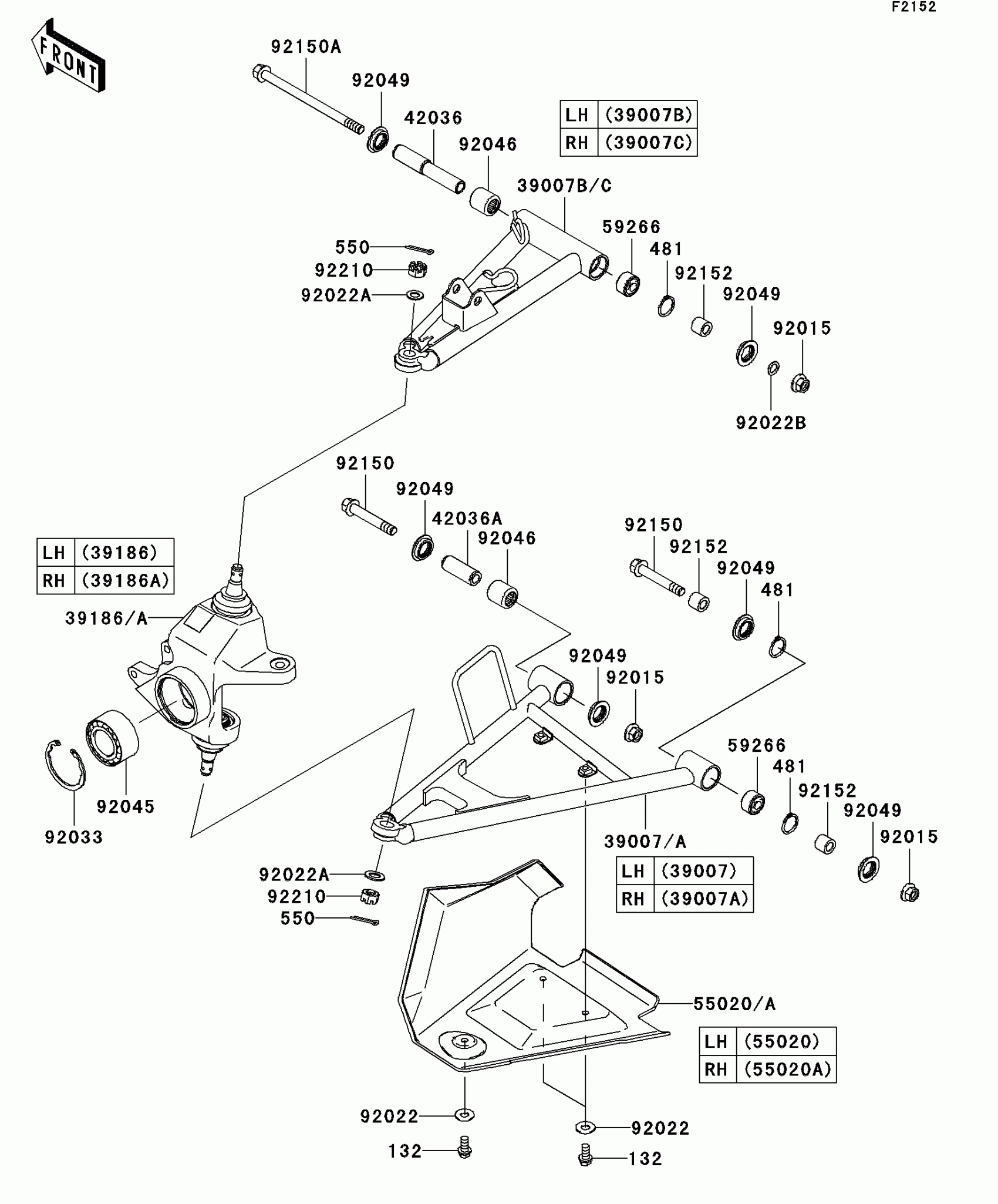

Kawasaki Brute Force® 650 4x4i Front Suspension Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
39007
ARM-SUSP,FR,LWR,LH
39007-0064
$87.50
39007A
ARM-SUSP,FR,LWR,RH
39007-0065
$87.50
39007B
ARM-SUSP,FR,UPP,LH
39007-0066
$87.50
39007C
ARM-SUSP,FR,UPP,RH
39007-0067
$87.50
39186
KNUCKLE ASSY,FR,LH
39186-0033
$296.64
39186A
KNUCKLE ASSY,FR,RH
39186-0034
$296.64
42036
SLEEVE,SUSPENSION ARM
42036-0016
$28.82
42036A
SLEEVE
42036-1376
$14.71
481
CIRCLIP-TYPE-C,24MM
481J2400
$3.40
550
PIN-COTTER,3.0X25
550D3025
$0.58
55020
GUARD,FRONT ARM,LH,F.BLACK
55020-0109-6Z
$33.78
55020A
GUARD,FRONT ARM,RH,F.BLACK
55020-0110-6Z
$33.78
59266
JOINT-BALL
59266-0013
$65.53
92015
NUT,FLANGED,10MM
92015-1415
$4.69
92022
WASHER PLAIN
92022-024
$3.65
92022A
WASHER,12.3X22X1.6
92022-1065
$3.96
92022B
WASHER,10.2X16X1
92022-1829
Unavailable
92033
RING-SNAP,55MM
92033-1274
$9.43
92045
BEARING-BALL,30BWD08ACA13
92045-0095
Unavailable
92046
BEARING-NEEDLE
92046-1046
$27.88
92049
SEAL-OIL,MHA17245.7F
92049-1223
$8.86
92150
BOLT,FLANGED,10X63
92150-1384
$13.75
92150A
BOLT,FLANGED,10X150
92150-1686
$16.01
92152
COLLAR,10X17X14.5
92152-1455
$9.07
92210
NUT,CASTLE,12MM
92210-0395
$3.86
