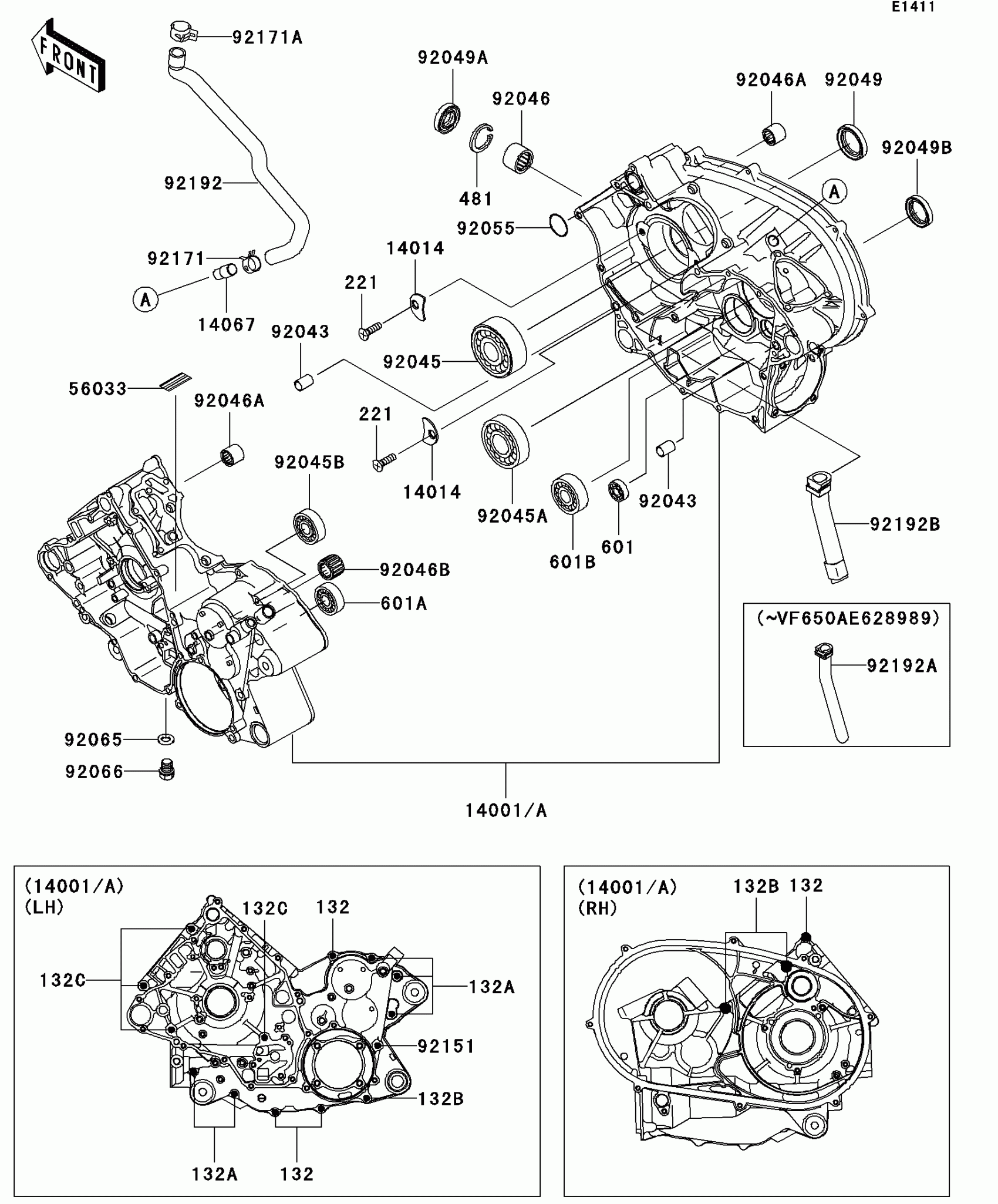

Kawasaki Brute Force® 650 4x4i Crankcase Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X40
132Y0640
$4.80
132A
BOLT-FLANGED-SMALL
132Y0665
$4.44
132B
BOLT-FLANGED-SMALL,8X110
132Y08110
$4.86
132C
BOLT-FLANGED-SMALL,8X75
132Y0875
$2.92
14001
SET-CRANKCASE
14001-0015
Unavailable
14001A
SET-CRANKCASE
14001-0109
Unavailable
14014
PLATE-POSITION
14014-0006
$14.71
14067
FITTING,BREATHER
14067-006
$21.09
221
SCREW-CSK-CROS,6X16
221B0616
$0.59
481
CIRCLIP-TYPE-C,37MM
481J3700
$3.04
56033
LABEL-MANUAL,OIL LEVEL
56033-0078
$5.86
601
BEARING-BALL
601A6000
$12.89
601A
BEARING-BALL,#6004
601A6004
$11.91
601B
BEARING-BALL,#6304
601A6304
$14.55
92043
PIN,10X14
92043-1506
$3.32
92045
BEARING-BALL,5208X2-A-ECG45
92045-0012
$127.71
92045A
BEARING-BALL,6306SH2
92045-1190
$40.80
92045B
BEARING-BALL,6303LUA
92045-1389
$21.65
92046
BEARING-NEEDLE
92046-0022
$24.97
92046A
BEARING-NEEDLE,TA202715ZE
92046-1118
$22.05
92046B
BEARING-NEEDLE
92046-1143
Unavailable
92049
SEAL-OIL,TC 35X50X8
92049-1452
$13.75
92049A
SEAL-OIL,TCY 28X42X8
92049-1570
$17.31
92049B
SEAL-OIL,HTC 30X45X8
92049-1575
$16.41
92055
RING-O,25.7X2.4
92055-1136
$5.00
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
92151
BOLT,8X110
92151-1689
$5.00
92171
CLAMP
92171-0329
$8.89
92171A
CLAMP
92171-0514
$8.03
92192
TUBE,BREATHER
92192-0054
Unavailable
92192A
TUBE,OIL RETURN
92192-0057
Unavailable
92192B
TUBE,OIL RETURN
92192-0703
$24.10
