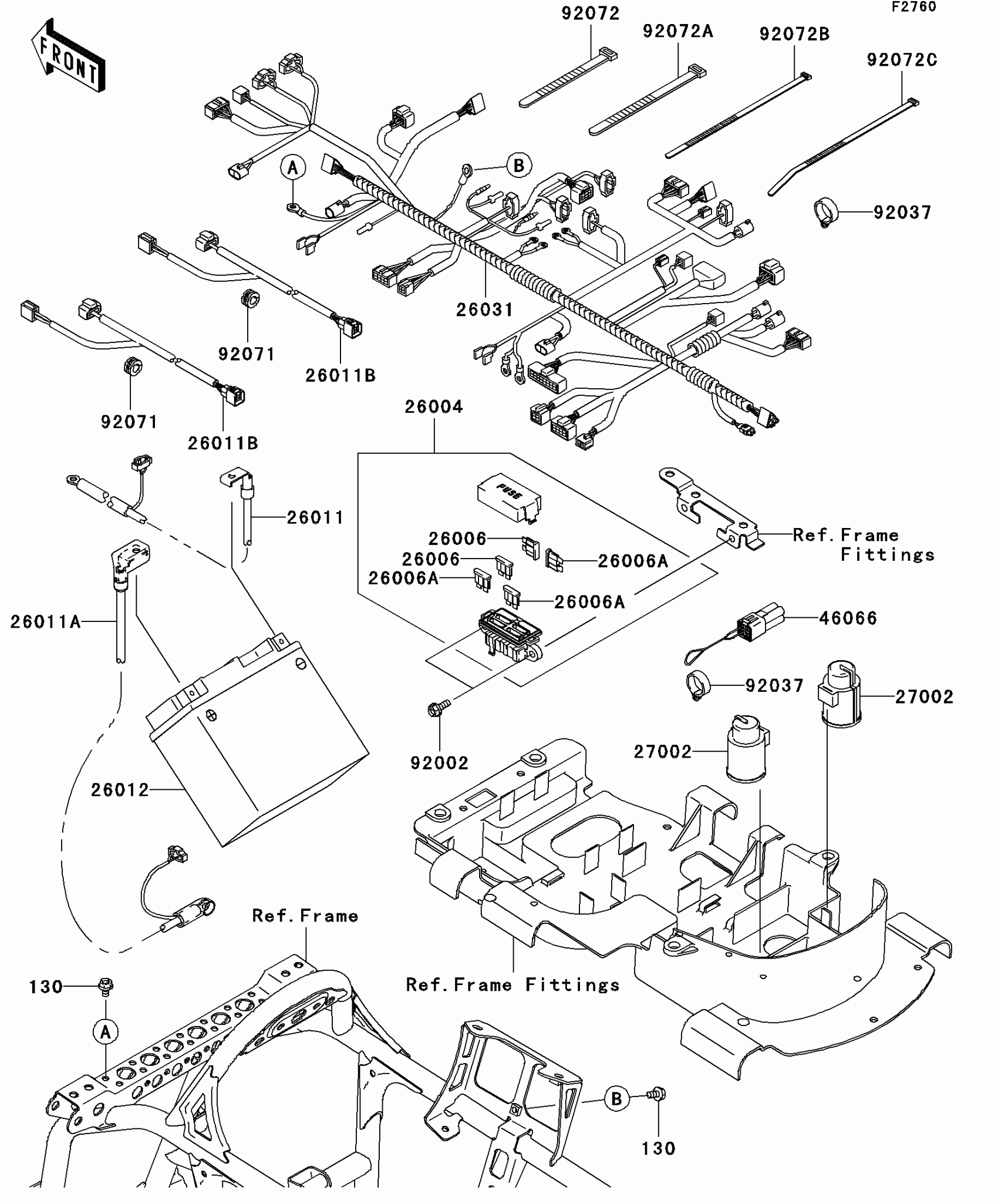

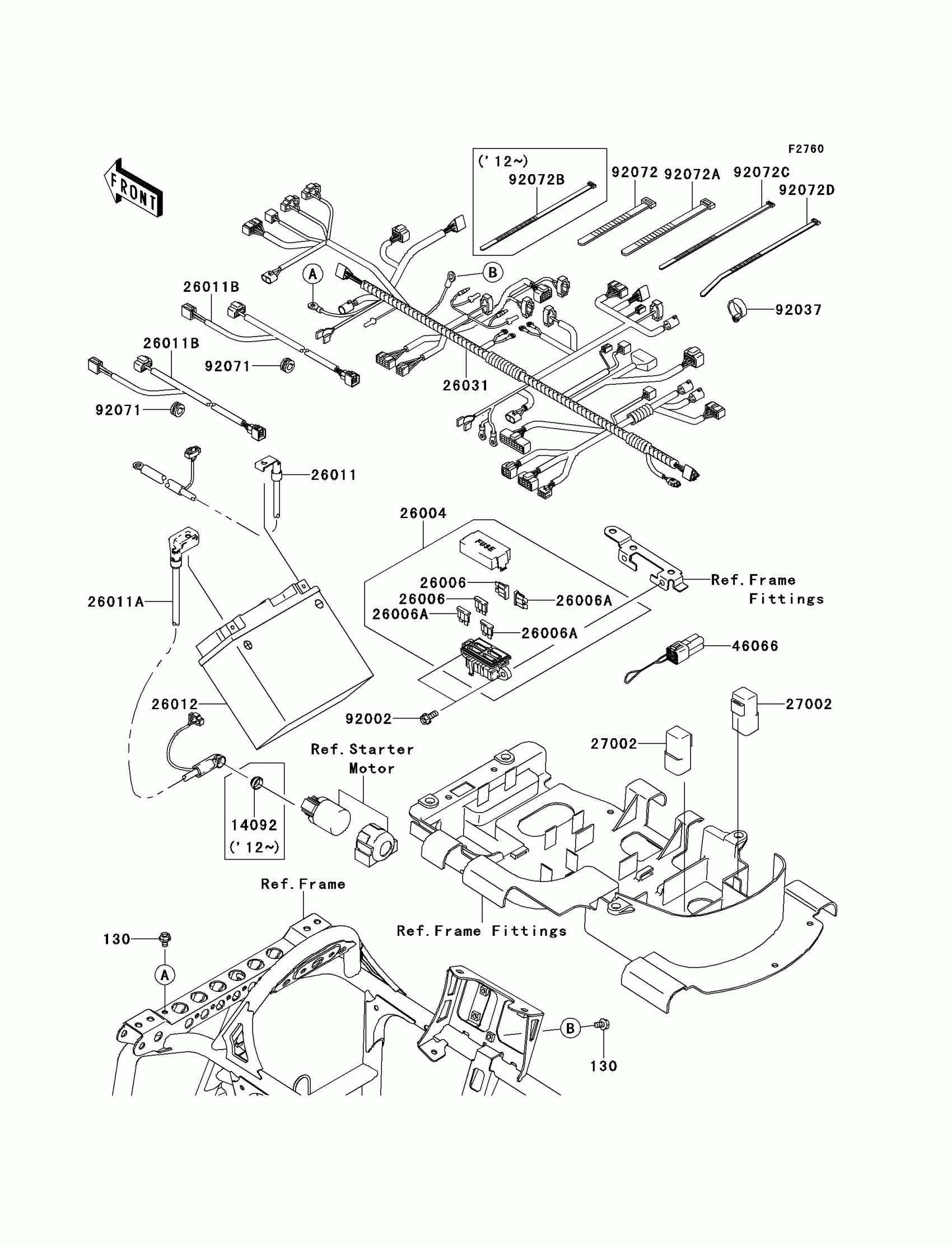

Kawasaki BRUTE FORCE® 650 4x4i Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$1.20

14092

COVER,MAGNETIC SW.

14092-0851

$1.93

26004

FUSE-ASSY

26004-0011

$43.88

26006

FUSE,BLADE,30A,GREEN

26006-0004

$6.02

26006A

FUSE,BLADE,10A,RED

26006-0005

$6.02

26011

WIRE-LEAD,BATTERY(-)

26011-0137

$53.43

26011A

WIRE-LEAD,BATTERY(+)

26011-0138

$53.43

26011B

WIRE-LEAD,HEAD LAMP

26011-0141

$33.39

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

Unavailable

26031

HARNESS,MAIN

26031-0928

$364.30

27002

RELAY-ASSY

27002-1088

$42.06

46066

CONNECTOR-ASSY,RESET

46066-0001

$26.91

92002

BOLT,6X16

92002-1571

$4.69

92037

CLAMP,HOSE

92037-1827

$7.45

92071

GROMMET

92071-1128

$5.43

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=186

92072-056

$5.00

92072C

BAND,L=188

92072-1239

$1.73

92072D

BAND,L=292.1

92072-3509

Unavailable
