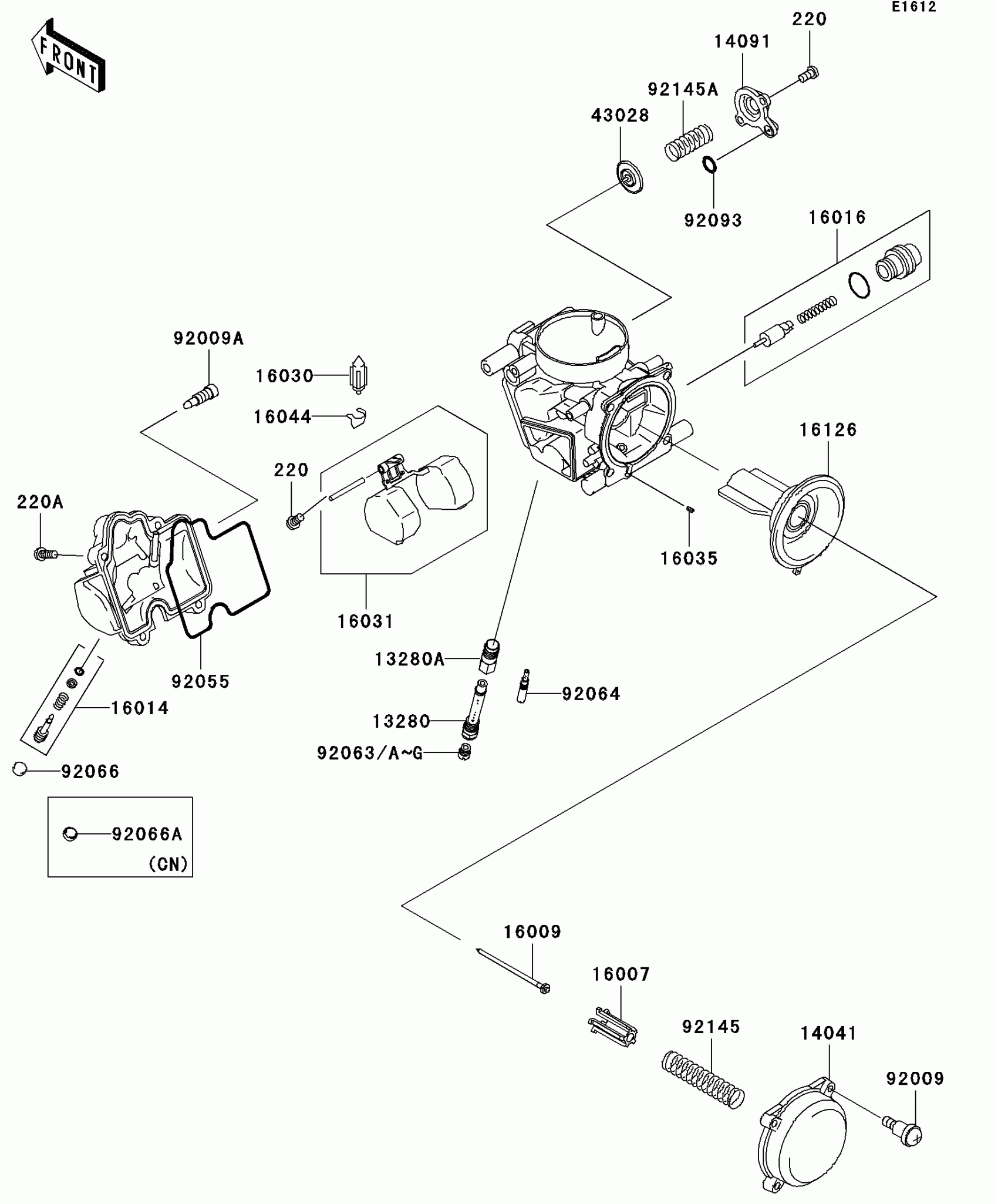

Kawasaki Brute Force® 650 4x4i Carburetor Parts Diagram
#
Description
Price
13280
HOLDER
13280-0185
$32.72
13280A
HOLDER,JET
13280-1096
$29.82
14041
CAP-CHAMBER,MIXING
14041-1091
$67.66
14091
COVER,AIR CUT VALVE
14091-1246
$33.04
16007
SEAT-SPRING,VALVE
16007-1117
$25.03
16009
NEEDLE-JET,N60N
16009-1544
$38.66
16014
SCREW-PILOT AIR
16014-1101
$22.70
16016
PLUNGER
16016-1117
$64.19
16030
VALVE-FLOAT
16030-1007
$47.99
16031
FLOAT
16031-1097
$59.28
16035
JET-AIR,LEAK
16035-1055
$15.74
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16126
VALVE
16126-0015
$197.42
43028
DIAPHRAGM,AIR CUT VALVE
43028-1085
$27.45
92009
SCREW,4X4.4
92009-1549
$5.24
92009A
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92055
RING-O,FLOAT CHAMBER
92055-1589
$32.69
92063
JET-MAIN,#138
92063-1015
Unavailable
92063A
JET-MAIN,#142
92063-1016
Unavailable
92063B
JET-MAIN,#148
92063-1324
Unavailable
92063C
JET-MAIN,#150
92063-1330
Unavailable
92063D
JET-MAIN,#152
92063-1331
Unavailable
92063E
JET-MAIN,#155
92063-1332
$14.79
92063F
JET-MAIN,#158
92063-1344
Unavailable
92063G
JET-MAIN,#160
92063-1345
Unavailable
92064
JET-PILOT,#38
92064-0011
$18.63
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92066A
PLUG,PILOT AIR SCREW
92066-3769
$4.28
92093
SEAL-"U"RING
92093-1046
$6.51
92145
SPRING
92145-0267
$7.65
92145A
SPRING,AIR CUT VALVE
92145-1450
$7.91
220
SCREW-PAN-CROS,4X8
220D0408
$0.68
220A
SCREW-PAN-CROS,4X14
220D0414
$4.60
