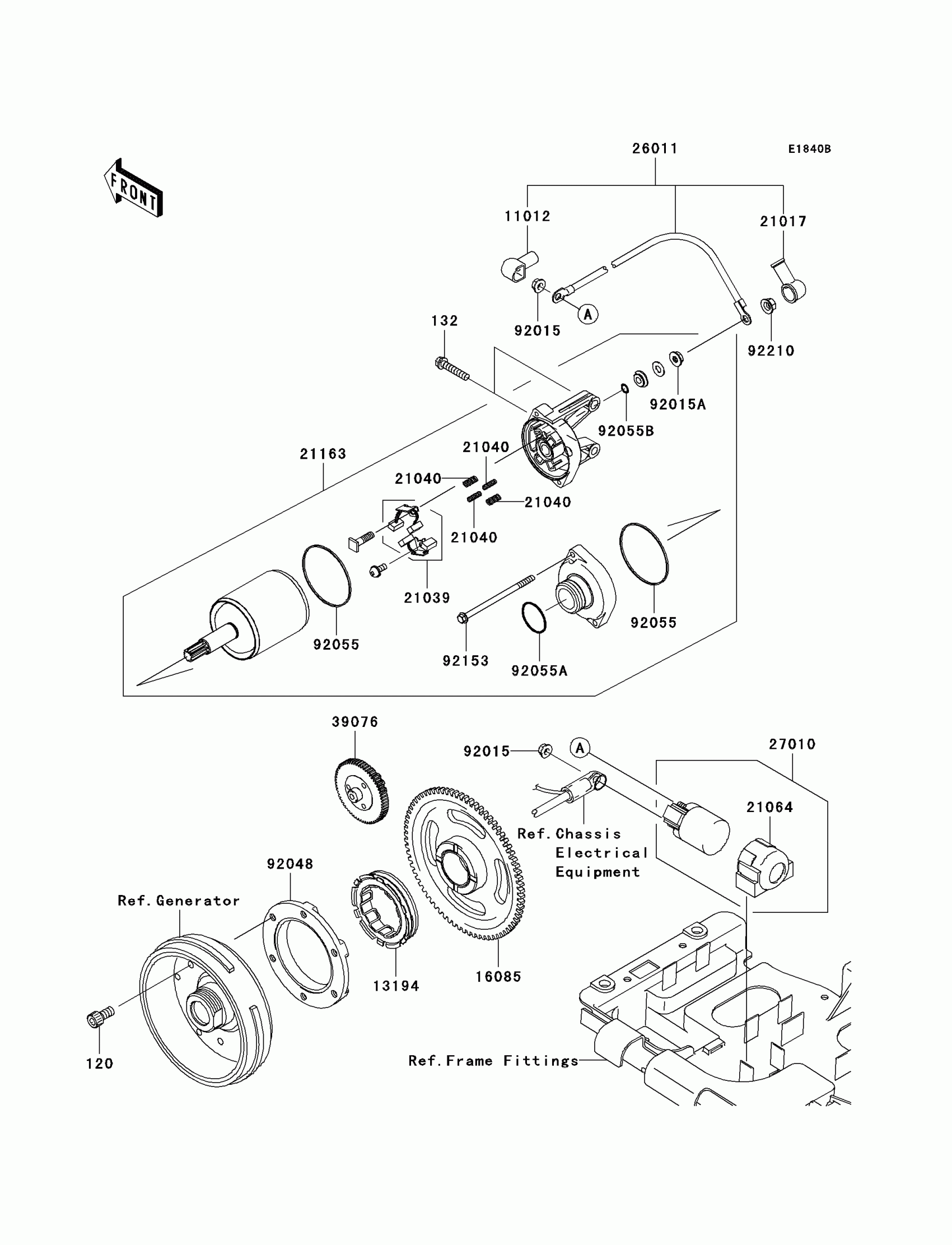

Kawasaki Brute Force 650 4x4i (Canada Only) Starter Motor(F9F/FAF) Diagram

Description

Price

120

BOLT-SOCKET,8X16

120CA0816

$4.45

132

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

11012

CAP,TERMINAL

11012-1354

$10.19

13194

CLUTCH-ONEWAY

13194-1094

$126.13

16085

GEAR,STARTER

16085-1238

$125.04

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-0037

$746.53

26011

WIRE-LEAD,STARTER CABLE

26011-0111

$39.63

27010

SWITCH,MAGNETIC

27010-1098

Unavailable

39076

LIMITER,STARTER

39076-0005

$242.50

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92048

RACE,ONE WAY CLUTCH

92048-0002

$108.96

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92153

BOLT

92153-1850

$11.93

92210

NUT,6MM

92210-0188

$2.15
