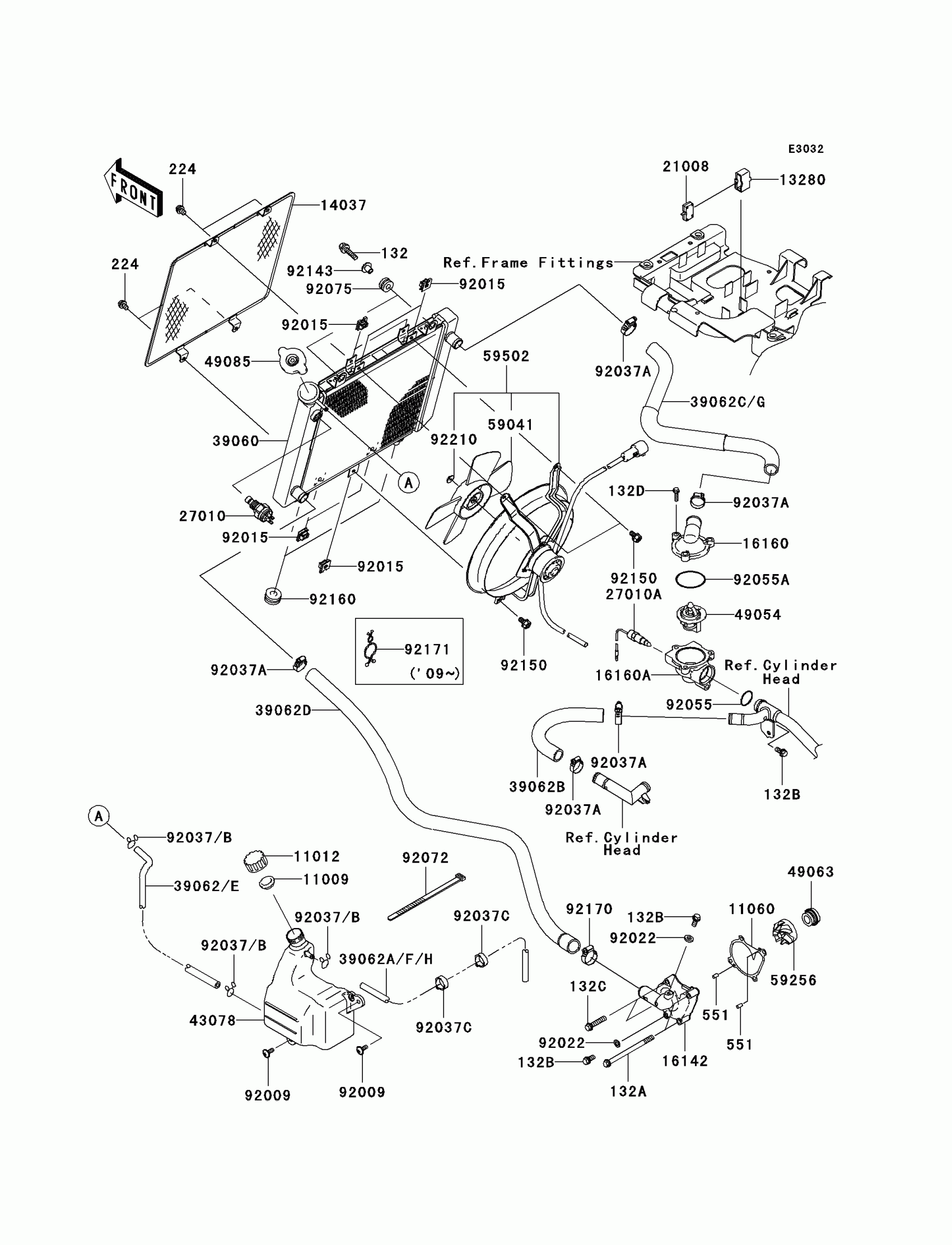

Kawasaki Brute Force 650 4x4i (Canada Only) Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11060

GASKET,WATER PUMP

11060-1964

$5.79

13280

HOLDER,BREAKER

13280-0082

$4.92

14037

SCREEN

14037-0045

$81.08

16142

COVER-PUMP,WATER

16142-0002

$85.44

16160

BODY,THERMOSTAT,UPP

16160-0046

$69.63

16160A

BODY,THERMOSTAT,LWR

16160-0067

$83.39

21008

BREAKER,CIRCUIT

21008-0002

$25.66

27010

SWITCH,FAN

27010-1202

$88.04

27010A

SWITCH,SENSOR WATER

27010-1346

$107.46

39060

RADIATOR

39060-0016

$947.36

39062B

HOSE-COOLING,FR HEAD-THERMO

39062-0178

$12.83

39062D

HOSE-COOLING,RAD-WATER PUMP

39062-0180

$39.68

39062E

HOSE-COOLING

39062-0226

$9.32

39062G

HOSE-COOLING,THERMO-RADIATOR

39062-0241

$19.56

39062H

HOSE-COOLING,5X9X800

39062-0321

$7.44

43078

RESERVOIR

43078-0024

$48.41

49054

THERMOSTAT

49054-1055

$48.15

49063

SEAL-MECHANICAL

49063-1055

$16.33

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

59041

FAN

59041-0003

$48.39

59256

IMPELLER

59256-1069

$17.30

59502

FAN-ASSY

59502-0022

$610.65

92009

SCREW,6X16

92009-1694

$2.99

92015

NUT

92015-1487

$3.64

92022

WASHER,6.2X11X1

92022-304

$2.76

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132A

BOLT-FLANGED-SMALL,6X90

132BB0690

$5.93

132B

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132C

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

132D

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

224

SCREW-PAN-WP-CROS,6X10

224AB0610

$1.59

551

PIN-DOWEL,4X8

551A0408

$0.68

92037A

CLAMP,COOLING HOSE

92037-1589

$14.01

92037B

CLAMP

92037-1712

$3.81

92037C

CLAMP,HOSE

92037-1827

$5.69

92055

RING-O,22.1X2.4

92055-1081

$3.57

92055A

RING-O,44.7X2.4

92055-1279

$5.61

92072

BAND,L=123

92072-030

$3.81

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92143

COLLAR

92143-1353

$6.54

92150

BOLT,6X12

92150-1186

$2.56

92160

DAMPER

92160-1007

$4.18

92170

CLAMP

92170-1497

$12.75

92171

CLAMP

92171-1736

$5.17

92210

NUT

92210-0258

$3.66
