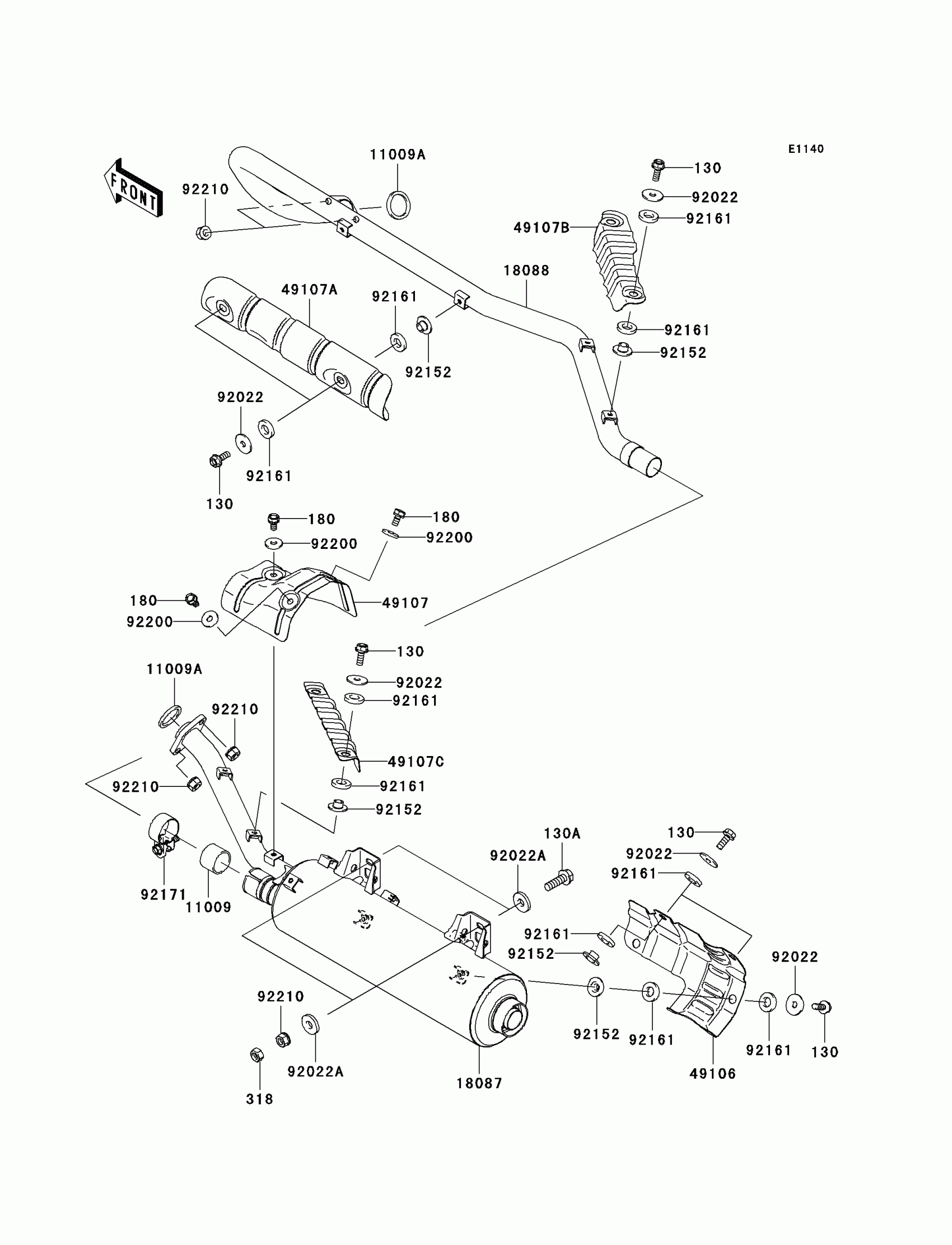

Kawasaki Brute Force 650 4x4i (Canada Only) Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BD0616

$3.51

130A

BOLT-FLANGED,8X25

130CD0825

$1.68

180

BOLT-UPSET-WS,6X12

180BD0612

$1.61

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

11009

GASKET,MUFFLER CONNECTING

11009-1865

Unavailable

11009A

GASKET,EXHAUST HOLDER

11009-1894

$6.13

18087

MUFFLER

18087-0167

$301.86

18088

PIPE-EXHAUST

18088-0379

$250.14

49106

COVER-MUFFLER

49106-0048

$19.41

49107

COVER-EXHAUST PIPE,RR

49107-0050

Unavailable

49107A

COVER-EXHAUST PIPE,FR

49107-0065

$24.24

49107B

COVER-EXHAUST PIPE,MIDDLE LH

49107-0066

$14.93

49107C

COVER-EXHAUST PIPE,MIDDLE RH

49107-0067

$14.93

92022

WASHER,6.5X22X1.6

92022-237

$2.99

92022A

WASHER,8.5X22X3.2

92022-276

$7.59

92152

COLLAR

92152-0423

$2.98

92161

DAMPER

92161-0319

$2.98

92171

CLAMP

92171-1330

$18.06

92200

WASHER,6.5X18X2.0

92200-2035

$0.46

92210

NUT,8MM

92210-1242

$1.73
