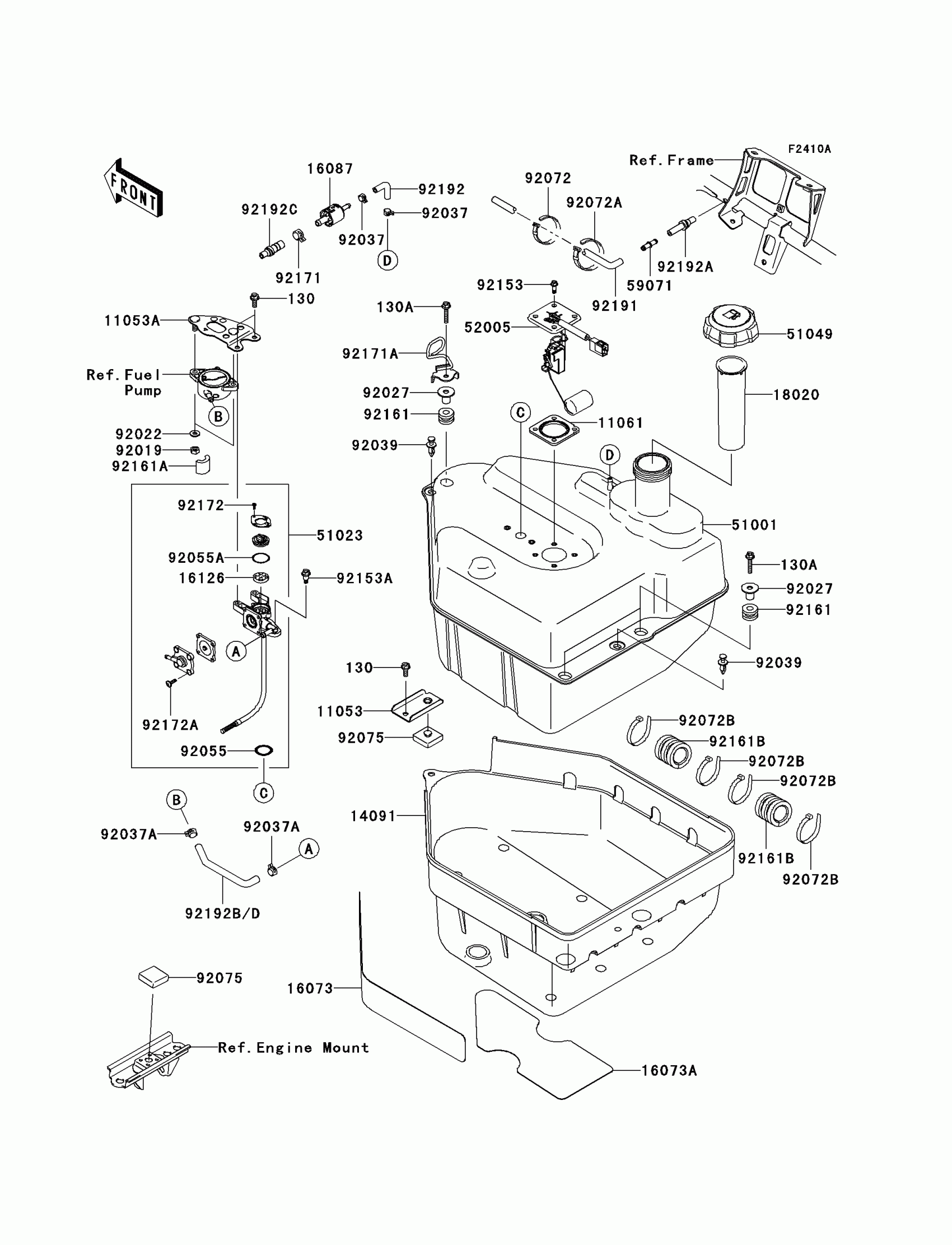

Kawasaki Brute Force 650 4x4i (Canada Only) Fuel Tank(F7F-FAF) Diagram

#

Description
Price

11053

BRACKET,FUEL TANK,TOP

11053-0936

$3.17

11053A

BRACKET,FUEL PUMP

11053-1247

$7.88

11061

GASKET,FUEL GAUGE

11061-0071

$19.29

14091

COVER,FUEL TANK,LWR

14091-0608

Unavailable

16073

INSULATOR,FUEL TANK COVER,SIDE

16073-0033

$6.64

16073A

INSULATOR,FUEL TANK COVER,LWR

16073-0034

$7.92

16087

VALVE-CHECK

16087-0002

$43.67

16126

VALVE

16126-0027

$5.80

18020

BAFFLE,FUEL TANK

18020-0008

$10.12

51001

TANK-COMP-FUEL

51001-0198

$230.14

51023

TAP-ASSY,FUEL

51023-0022

$124.68

51049

CAP-TANK,FUEL

51049-0001

Unavailable

52005

GAUGE,FUEL

52005-0011

$186.09

59071

JOINT

59071-3717

$3.07

92019

NUT,LOCK,6MM

92019-008

$3.12

92022

WASHER,6.2X15X1.2

92022-2373

$0.46

92027

COLLAR,L=16.1

92027-1847

$4.67

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP,TUBE

92037-1505

$3.63

92039

RIVET

92039-1229

$0.80

92055

RING-O,FUEL TAP

92055-0081

$7.95

92055A

RING-O

92055-0111

$4.68

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=186

92072-056

$3.81

92072B

BAND,L=188

92072-1239

$1.30

92075

DAMPER

92075-1882

$6.18

92153

BOLT,FLANGED,5MM

92153-0361

$3.75

92153A

BOLT,6MM

92153-0824

$4.25

92161

DAMPER

92161-0106

$1.30

92161A

DAMPER,FUEL PUMP

92161-0125

$5.17

92161B

DAMPER,FUEL TANK,RR

92161-1111

$5.53

92171

CLAMP

92171-0515

$5.56

92171A

CLAMP,FUEL TUBE

92171-1741

$13.32

92172

SCREW,3X6

92172-0259

$2.71

92172A

SCREW,4X15

92172-0260

$3.14

92191

TUBE,CANISTER-SEPARATOR,BLUE

92191-1384

$14.90

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$2.95

92192A

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.49

92192C

TUBE,FRAME PIPE-CHECK VALVE

92192-0128

Unavailable

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X30

130BA0630

$1.13

92192D

TUBE,FUEL

92192-0492

$33.34
