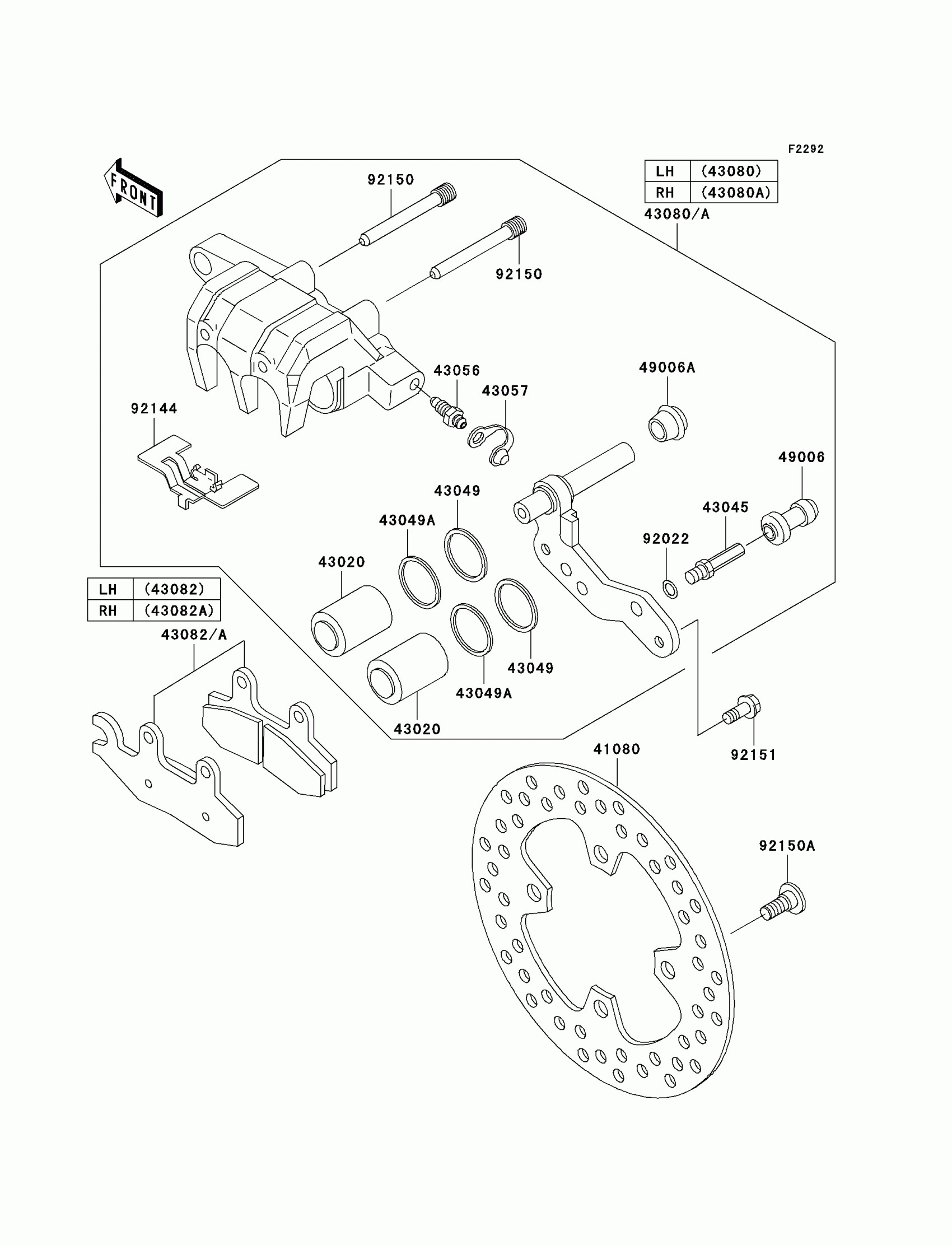

Kawasaki Brute Force 650 4x4i (Canada Only) Front Brake Diagram

Description

Price

41080

DISC,FR

41080-1513

Unavailable

43020

PISTON-COMP-BRAKE

43020-1101

$53.01

43045

SHAFT-CALIPER

43045-1010

$20.77

43049

PACKING

43049-1063

$8.03

43049A

PACKING

43049-1064

$6.16

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0019-DJ

$407.13

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0020-DJ

$407.13

43082

PAD-ASSY-BRAKE,FR,LH

43082-0022

$70.29

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0023

$70.29

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92144

SPRING,PAD

92144-1319

$7.77

92150

BOLT

92150-1144

$9.91

92150A

BOLT,SOCKET,8X20

92150-1800

$7.29

92151

BOLT,FLANGED,8X19

92151-1793

$2.45
