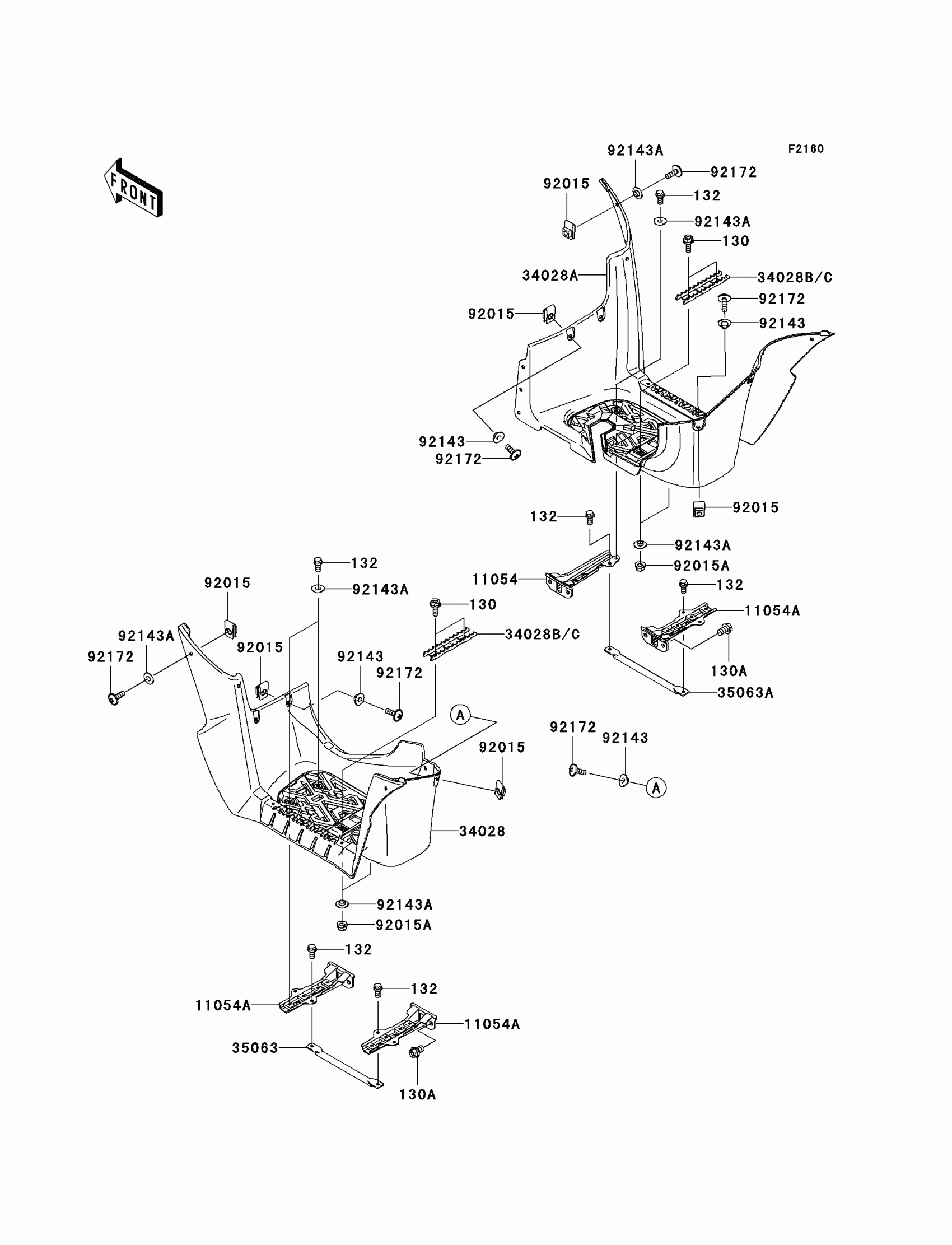

Kawasaki Brute Force 650 4x4i (Canada Only) Footrests Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BB0616

$2.06

130A

BOLT-FLANGED,10X16

130CB1016

$4.99

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

11054

BRACKET,FOOT BOARD,RH

11054-1229

Unavailable

11054A

BRACKET,FOOT BOARD

11054-1232

Unavailable

34028

STEP,FOOT BOARD,LH,F.BLACK

34028-0054-6Z

Unavailable

34028A

STEP,FOOT BOARD,RH,F.BLACK

34028-0055-6Z

$64.26

34028B

STEP,FOOT PEG,F.BLACK

34028-1487-21

$8.79

35063

STAY,STEP,LH

35063-0394

$8.76

35063A

STAY,STEP,RH

35063-0395

$8.76

92015

NUT,6MM

92015-1602

$7.34

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92172

SCREW,6X18

92172-0002

$2.80
