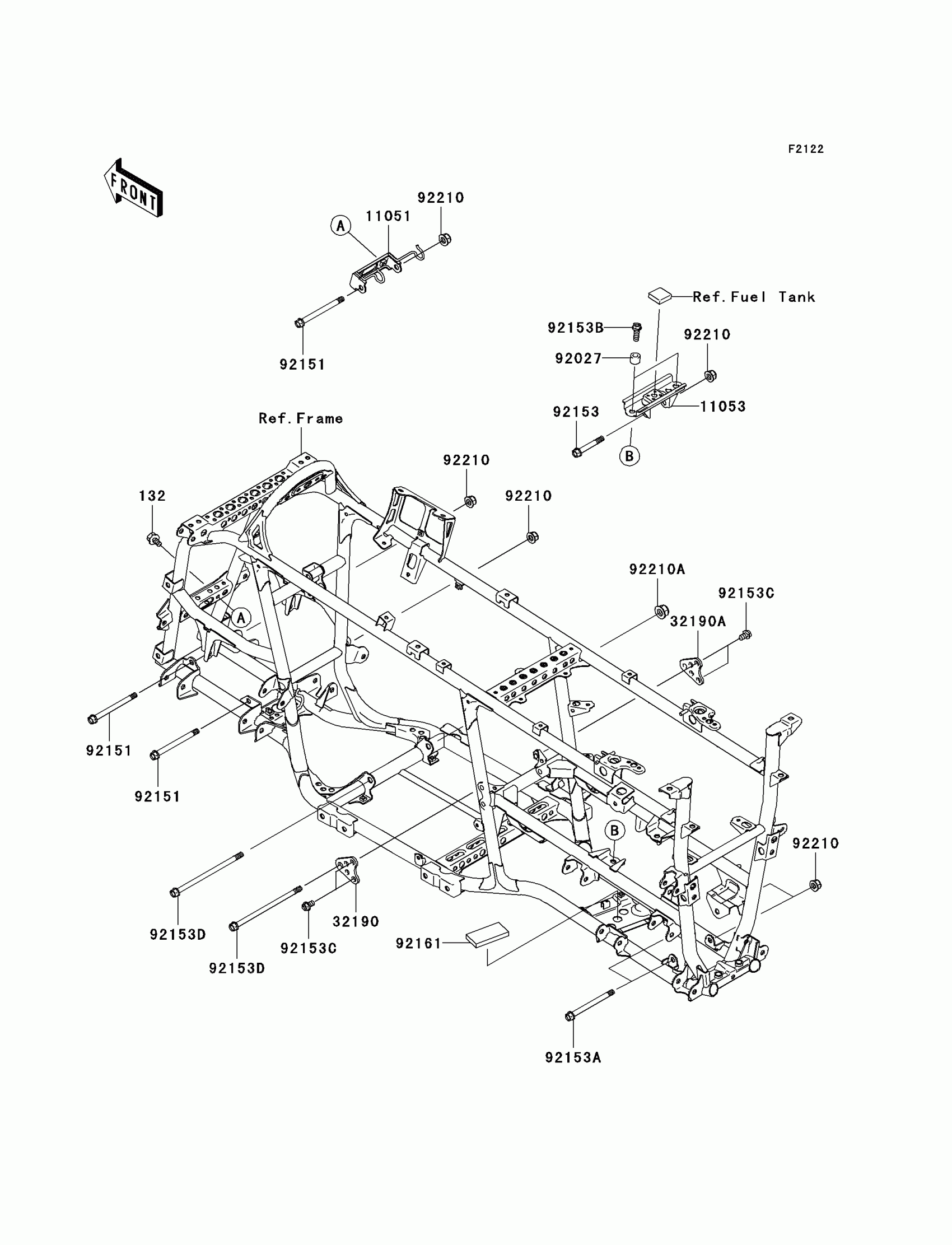

Kawasaki Brute Force 650 4x4i (Canada Only) Engine Mount Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X14

132BB0814

$2.70

11051

BRACKET,FRONT DIFF

11051-1929

$30.03

11053

BRACKET,REAR DIFF,TOP

11053-1592

$10.37

32190

BRACKET-ENGINE,RR,UPP,LH

32190-0059

$3.68

32190A

BRACKET-ENGINE,RR,UPP,RH

32190-0060

$3.68

92027

COLLAR,FRONT AXLE,L=14.5

92027-1472

$14.23

92151

BOLT,FLANGED,10X120

92151-1914

$19.22

92153

BOLT,FLANGED,10X70

92153-0871

$4.80

92153A

BOLT,FLANGED,10X120

92153-0872

$19.47

92153B

BOLT,FLANGED,10X30

92153-0930

$3.53

92153C

BOLT,FLANGED,10X16

92153-0991

$4.09

92153D

BOLT,FLANGED,12X190

92153-1502

$18.11

92161

DAMPER

92161-0215

$7.59

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$6.22
