Description

Price

11060

GASKET,DIFF CASE

11060-1982

$29.99

13096

HOUSING-CLUTCH,DISC

13096-1163

$45.60

13107

SHAFT,CROSS

13107-0123

$17.27

13139

SHIFTER,DIFFERENTIAL

13139-1097

$102.66

13168

LEVER,DIFF

13168-1724

$41.94

13168A

LEVER,DIFFERENTIAL

13168-1725

$19.76

13271

PLATE,CAM

13271-1497

Unavailable

13271A

PLATE,DISC

13271-1503

$15.39

14055

CASE-GEAR

14055-0014

Unavailable

14055A

CASE-GEAR,CENTER

14055-1155

$142.53

14055B

CASE-GEAR,BEVEL,LH

14055-1156

Unavailable

14057

CASE-COMP-GEAR,DIFF,LH

14057-1004

Unavailable

14091

COVER,BEVEL,RH

14091-1197

$64.18

16172

ACTUATOR

16172-0007

Unavailable

41080

DISC,T=1.20

41080-1499

Unavailable

41080A

DISC,T=1.80

41080-1500

Unavailable

41080B

DISC,T=2.40

41080-1501

Unavailable

41080C

DISC ASSY,DIFFERENTIAL LOCK

41080-1512

Unavailable

42034

COUPLING,BEVEL

42034-1192

$128.34

49006B

BOOT,UJ

49006-0073

$94.62

49006C

BOOT,DOJ

49006-0074

$94.62

49022

GEAR-BEVEL,10T

49022-1177

Unavailable

49022A

GEAR-BEVEL,16T

49022-1178

$155.92

49022B

GEAR-BEVEL,35T

49022-1190

Unavailable

49022C

GEAR-BEVEL,8T

49022-1201

$432.33

59266B

JOINT-BALL

59266-0024

$653.75

59266C

JOINT-BALL

59266-0025

$653.75

92009

SCREW,64MM

92009-1914

$29.63

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92037

CLAMP-HOSE

92037-1104

$1.45

92043

PIN,2X10.5

92043-0083

$2.61

92043A

PIN,6.2X8X14

92043-1263

$0.43

92043B

PIN

92043-1575

$2.46

92045

BEARING-BALL,60/32

92045-1393

$27.70

92045A

BEARING-BALL,6910

92045-1394

$50.18

92046

BEARING-NEEDLE,TA627412ZE02

92046-1282

Unavailable

92046A

BEARING-NEEDLE,AK1116

92046-1286

$54.92

92046B

BEARING-NEEDLE,AJ501515W

92046-1297

$36.04

92049

SEAL-OIL,SDD7 22X48X7HS

92049-1534

$18.37

92049A

SEAL-OIL,HTCY 62X81X10.5

92049-1536

$21.99

92049B

SEAL-OIL,TC 12X22X7

92049-1550

$5.00

92049C

SEAL-OIL,KB 13X19X13

92049-1572

$9.43

92049D

SEAL-OIL,TCY 48X65X8

92049-1573

$17.31

92055

RING-O

92055-0122

$3.90

92065

GASKET,8.5X16X1

92065-023

$3.88

92066

PLUG

92066-1303

$12.96

92072

BAND,L=188

92072-1239

$1.73

92145

SPRING,DIFF RETURN

92145-1344

$3.70

92150

BOLT,6X45

92150-1884

Unavailable

92151

BOLT,8X50

92151-1794

$2.80

92151A

BOLT,6X60

92151-1795

$2.41

92151B

BOLT,10X19.5

92151-1910

$3.26

92152

COLLAR

92152-1349

$40.82

92180

SHIM,62X71X0.15

92180-1390

Unavailable

92180A

SHIM,62X71X0.20

92180-1391

Unavailable

92180B

SHIM,62X71X0.50

92180-1392

Unavailable

92180C

SHIM,62X71X0.70

92180-1393

Unavailable

92180D

SHIM,62X71X0.80

92180-1394

Unavailable

92180E

SHIM,62X71X0.90

92180-1395

Unavailable

92180F

SHIM,62X71X1.00

92180-1396

Unavailable

92180G

SHIM,62X71X1.10

92180-1397

Unavailable

92180H

SHIM,62X71X1.20

92180-1398

Unavailable

92180I

SHIM,32X42X0.15

92180-1399

Unavailable

92180J

SHIM,32X42X0.20

92180-1400

Unavailable

92180K

SHIM,32X42X0.50

92180-1401

Unavailable

130

BOLT-FLANGED,6X35

130BA0635

$0.94

130A

BOLT-FLANGED,8X14

130BA0814

$2.16

132

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

481

CIRCLIP-TYPE-C,25MM

481J2500

$3.07

600

BALL-STEEL,11/32"

600A1100

$0.64

601

BEARING-BALL,#6305

601A6305

$18.63

670

O RING

670D3022

$2.80

671

O RING

671D25145

$20.09

92180L

SHIM,32X42X0.70

92180-1402

Unavailable

92180M

SHIM,32X42X0.80

92180-1403

Unavailable

92180N

SHIM,32X42X0.90

92180-1404

Unavailable

92180O

SHIM,32X42X1.00

92180-1405

Unavailable

92180P

SHIM,32X42X1.10

92180-1406

Unavailable

92180Q

SHIM,32X42X1.20

92180-1407

Unavailable

92180R

SHIM,50X61X0.15

92180-1408

Unavailable

92180S

SHIM,50X61X0.20

92180-1409

Unavailable

92180T

SHIM,50X61X0.50

92180-1410

Unavailable

92180U

SHIM,50X61X0.70

92180-1411

Unavailable

92180V

SHIM,50X61X0.80

92180-1412

Unavailable

92180W

SHIM,50X61X0.90

92180-1413

Unavailable

92180X

SHIM,50X61X1.00

92180-1414

Unavailable

92180Y

SHIM,50X61X1.10

92180-1415

Unavailable

92180Z

SHIM,50X61X1.20

92180-1416

Unavailable

92192

TUBE,7X12X760

92192-0716

$25.81

92200

WASHER,10X24X2.5

92200-1635

$4.18

92210

NUT,25MM

92210-1225

$15.39

92210A

NUT,LOCK,10MM

92210-1351

$7.65

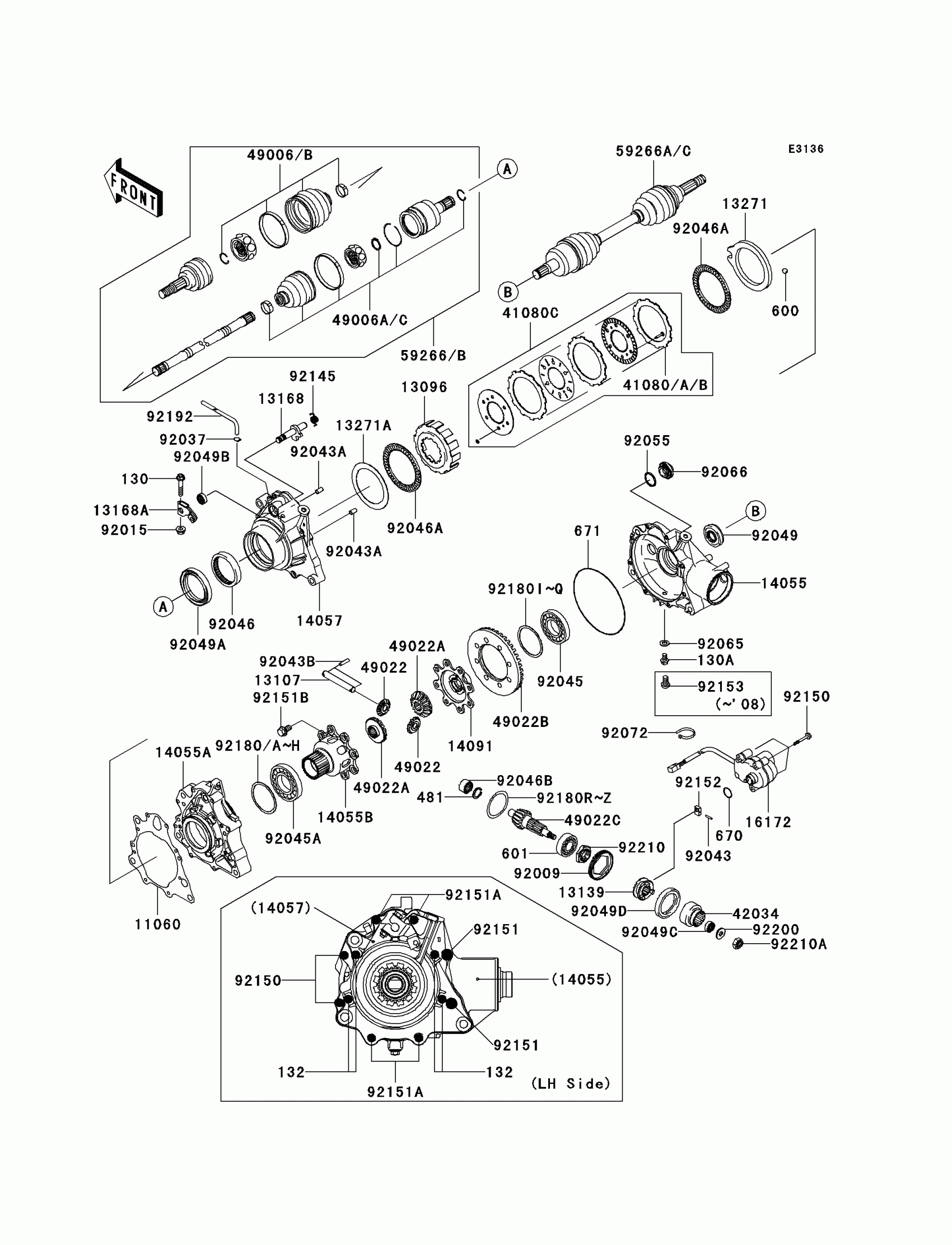

Kawasaki Brute Force 650 4x4i (Canada Only) Drive Shaft-Front Diagram

GASKET,DIFF CASE

HOUSING-CLUTCH,DISC

SHAFT,CROSS

SHIFTER,DIFFERENTIAL

LEVER,DIFF

LEVER,DIFFERENTIAL

PLATE,CAM

PLATE,DISC

CASE-GEAR

CASE-GEAR,CENTER

CASE-GEAR,BEVEL,LH

CASE-COMP-GEAR,DIFF,LH

COVER,BEVEL,RH

ACTUATOR

DISC,T=1.20

DISC,T=1.80

DISC,T=2.40

DISC ASSY,DIFFERENTIAL LOCK

COUPLING,BEVEL

BOOT,UJ

BOOT,DOJ

GEAR-BEVEL,10T

GEAR-BEVEL,16T

GEAR-BEVEL,35T

GEAR-BEVEL,8T

JOINT-BALL

JOINT-BALL

SCREW,64MM

NUT,LOCK,FLANGED,6MM

CLAMP-HOSE

PIN,2X10.5

PIN,6.2X8X14

PIN

BEARING-BALL,60/32

BEARING-BALL,6910

BEARING-NEEDLE,TA627412ZE02

BEARING-NEEDLE,AK1116

BEARING-NEEDLE,AJ501515W

SEAL-OIL,SDD7 22X48X7HS

SEAL-OIL,HTCY 62X81X10.5

SEAL-OIL,TC 12X22X7

SEAL-OIL,KB 13X19X13

SEAL-OIL,TCY 48X65X8

RING-O

GASKET,8.5X16X1

PLUG

BAND,L=188

SPRING,DIFF RETURN

BOLT,6X45

BOLT,8X50

BOLT,6X60

BOLT,10X19.5

COLLAR

SHIM,62X71X0.15

SHIM,62X71X0.20

SHIM,62X71X0.50

SHIM,62X71X0.70

SHIM,62X71X0.80

SHIM,62X71X0.90

SHIM,62X71X1.00

SHIM,62X71X1.10

SHIM,62X71X1.20

SHIM,32X42X0.15

SHIM,32X42X0.20

SHIM,32X42X0.50

BOLT-FLANGED,6X35

BOLT-FLANGED,8X14

BOLT-FLANGED-SMALL,6X30

CIRCLIP-TYPE-C,25MM

BALL-STEEL,11/32"

BEARING-BALL,#6305

O RING

O RING

SHIM,32X42X0.70

SHIM,32X42X0.80

SHIM,32X42X0.90

SHIM,32X42X1.00

SHIM,32X42X1.10

SHIM,32X42X1.20
