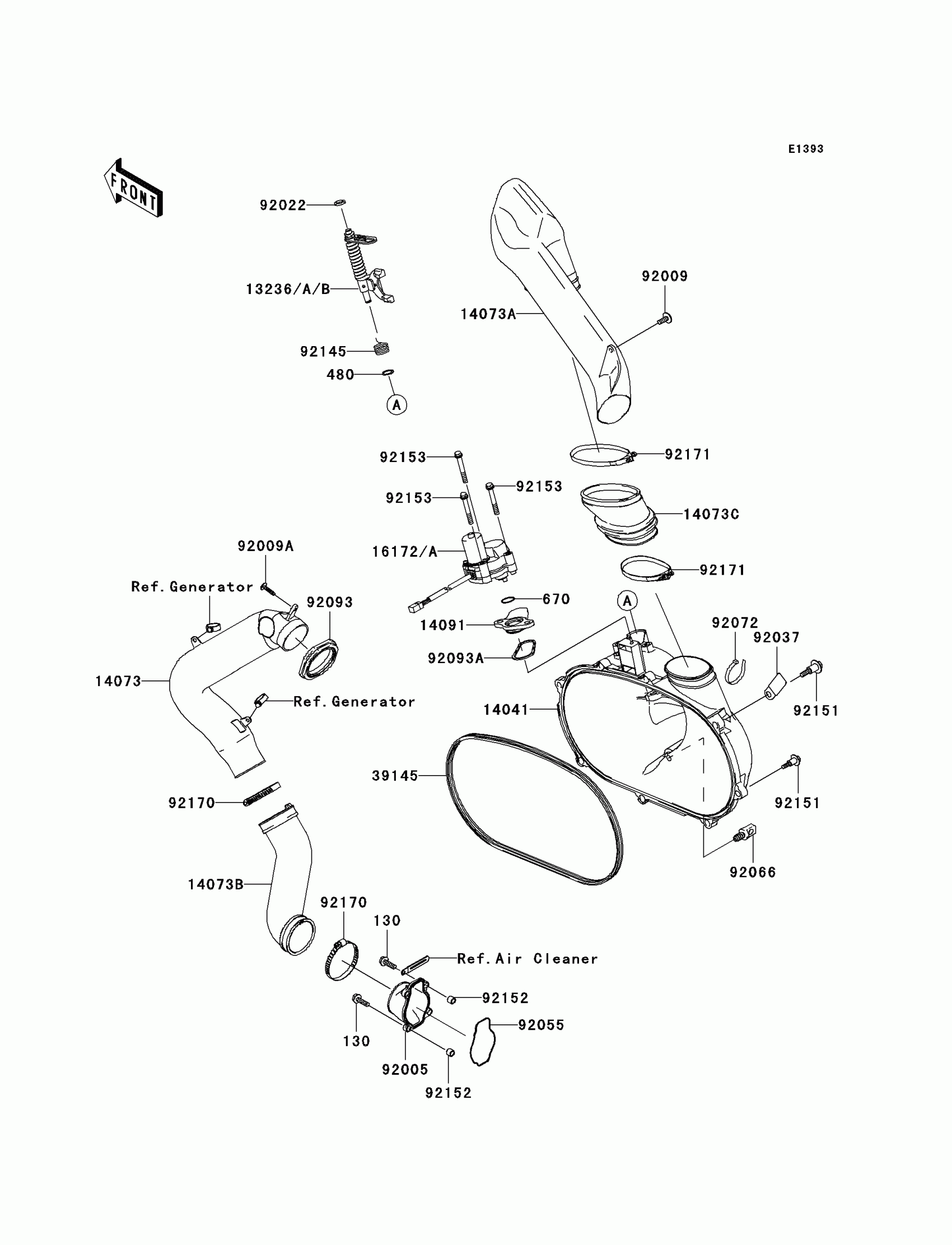

Kawasaki Brute Force 650 4x4i (Canada Only) Converter Cover Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CD0620

$1.51

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.57

670

O RING

670D3022

$1.98

13236

LEVER-COMP,YELLOW

13236-0046

Unavailable

13236A

LEVER-COMP,GREEN

13236-0047

Unavailable

13236B

LEVER-COMP,PAINT LESS

13236-0048

$134.44

14041

COVER-COMP

14041-0004

Unavailable

14073

DUCT,INTAKE

14073-0025

$21.83

14073A

DUCT,EXHAUST

14073-0026

$31.19

14073B

DUCT,INTAKE JOINT

14073-0027

$20.81

14073C

DUCT,EXHAUST JOINT

14073-0028

$12.21

14091

COVER

14091-1421

Unavailable

16172A

ACTUATOR

16172-0018

$388.62

39145

TRIM-SEAL

39145-1135

Unavailable

92005

FITTING

92005-1387

$11.68

92009

SCREW,6X16

92009-1694

$2.99

92009A

SCREW,TAPPING,5X20

92009-1993

$0.85

92022

WASHER,10.2X16X1

92022-1829

$3.29

92037

CLAMP

92037-1780

$5.71

92055

RING-O

92055-1630

$7.98

92066

PLUG,DRAIN,11X19

92066-1580

$4.69

92072

BAND,L=188

92072-1239

$1.30

92093

SEAL

92093-0016

$5.79

92093A

SEAL

92093-1548

$9.73

92145

SPRING

92145-1567

$2.27

92151

BOLT,FLANGED,6X30

92151-1686

$7.18

92152

COLLAR

92152-1332

$3.19

92153

BOLT,6X47

92153-0678

$2.47

92170

CLAMP

92170-1764

$8.62

92171

CLAMP

92171-0208

Unavailable
