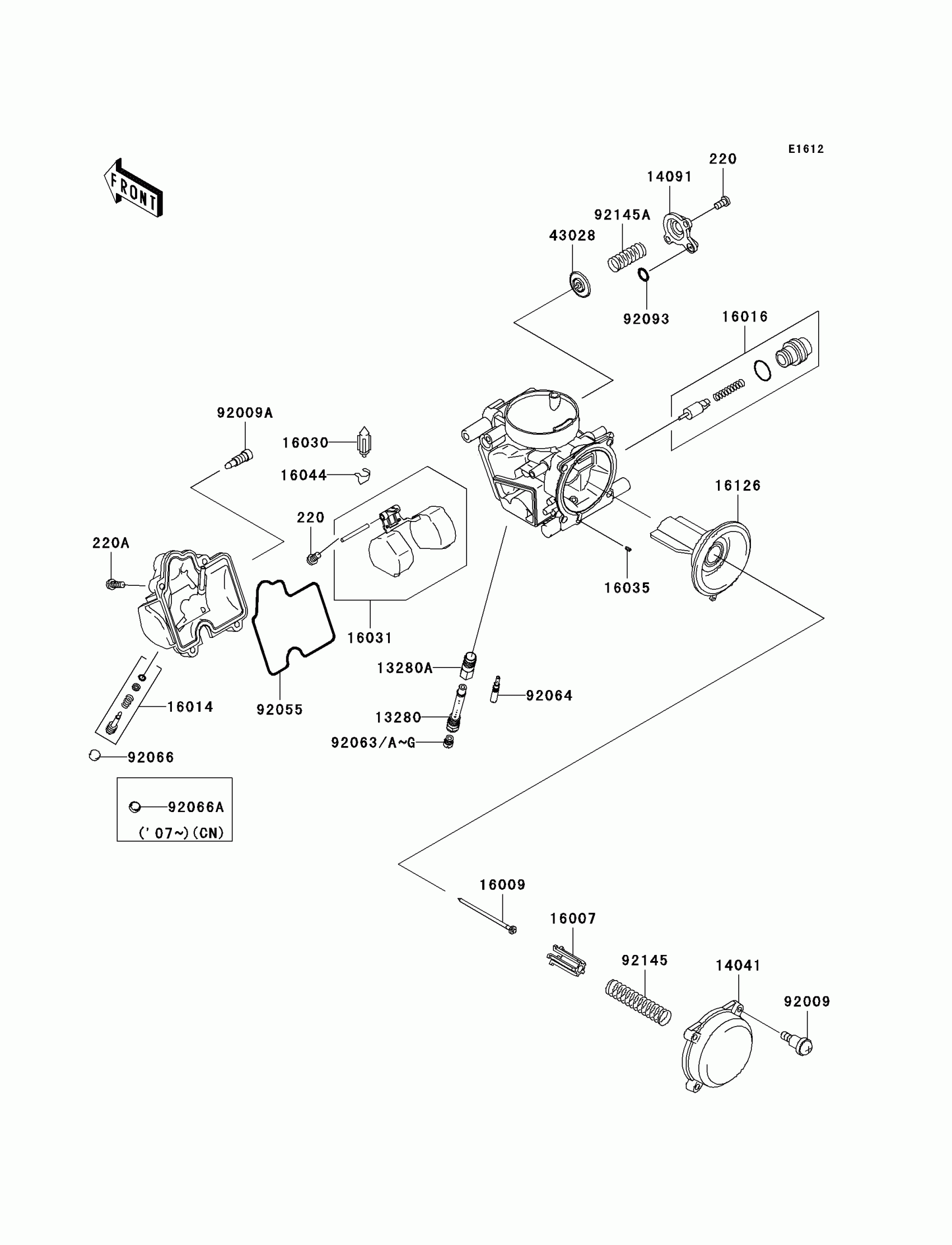

Kawasaki Brute Force 650 4x4i (Canada Only) Carburetor Parts Diagram

Description

Price

220

SCREW-PAN-CROS,4X8

220AA0408

$0.63

13280

HOLDER

13280-0185

$33.34

13280A

HOLDER,JET

13280-1096

$26.36

14041

CAP-CHAMBER,MIXING

14041-1091

$60.62

14091

COVER,AIR CUT VALVE

14091-1246

$33.67

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16009

NEEDLE-JET,N60N

16009-1544

$39.40

16014

SCREW-PILOT AIR

16014-1101

$21.24

16016

PLUNGER

16016-1117

$57.64

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1097

$52.19

16035

JET-AIR,LEAK

16035-1055

$11.94

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE

16126-0015

$176.22

43028

DIAPHRAGM,AIR CUT VALVE

43028-1085

$22.22

92009

SCREW,4X4.4

92009-1549

$3.98

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92055

RING-O,FLOAT CHAMBER

92055-1589

$29.33

92063

JET-MAIN,#138

92063-1015

Unavailable

92063A

JET-MAIN,#142

92063-1016

Unavailable

92063B

JET-MAIN,#148

92063-1324

Unavailable

92063C

JET-MAIN,#150

92063-1330

Unavailable

92063D

JET-MAIN,#152

92063-1331

Unavailable

92063E

JET-MAIN,#155

92063-1332

$11.23

92063F

JET-MAIN,#158

92063-1344

Unavailable

92063G

JET-MAIN,#160

92063-1345

Unavailable

92064

JET-PILOT,#38

92064-0011

$14.06

92066A

PLUG,PILOT AIR SCREW

92066-3769

$3.83

92093

SEAL-"U"RING

92093-1046

$4.88

92145

SPRING

92145-0267

$7.54

92145A

SPRING,AIR CUT VALVE

92145-1450

$7.76

220A

SCREW-PAN-CROS,4X14

220AA0414

$3.51
