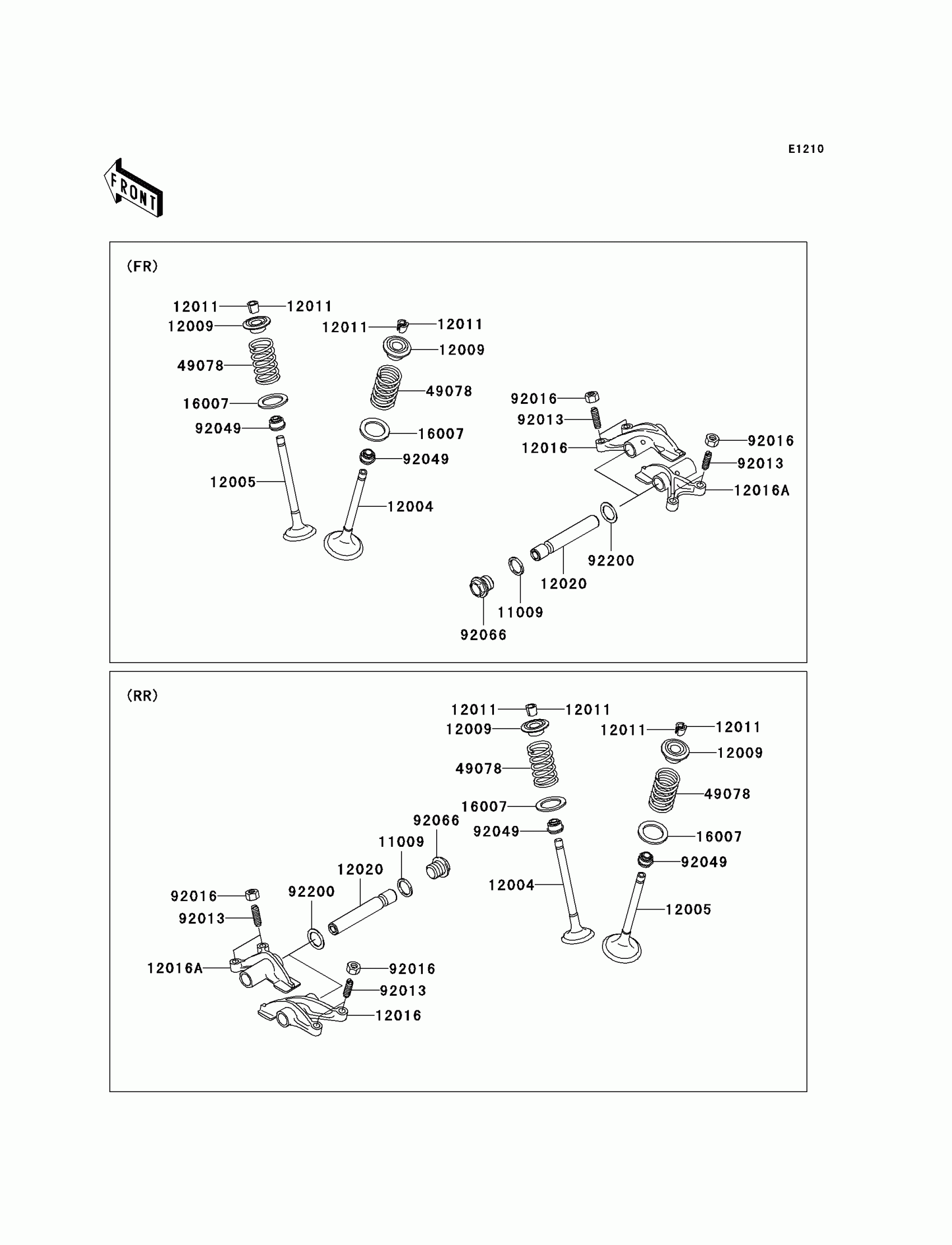

Kawasaki Brute Force 650 4x4 Valve(s) Diagram

Description

Price

11009

GASKET,14X18X1.5

11009-1430

$6.51

12004

VALVE-INTAKE

12004-0007

Unavailable

12005

VALVE-EXHAUST

12005-0016

Unavailable

12009

RETAINER-VALVE SPRING

12009-1056

$11.55

12011

COLLET

12011-1051

$1.96

12016

ARM-ROCKER,EXHAUST

12016-1128

$104.82

12016A

ARM-ROCKER,INTAKE

12016-1129

$104.82

12020

SHAFT-ROCKER

12020-0004

$15.06

16007

SEAT-SPRING,17.5X23.8X0.5

16007-1178

$6.16

49078

SPRING-ENGINE VALVE

49078-0014

$15.72

92013

SCREW,6MM

92013-009

$6.57

92016

NUT,6MM

92016-061

$4.69

92049

SEAL-OIL,VSB58.558

92049-1218

$4.08

92066

PLUG,DRAIN

92066-2196

$4.01

92200

WASHER,13X17X0.3

92200-1508

Unavailable
