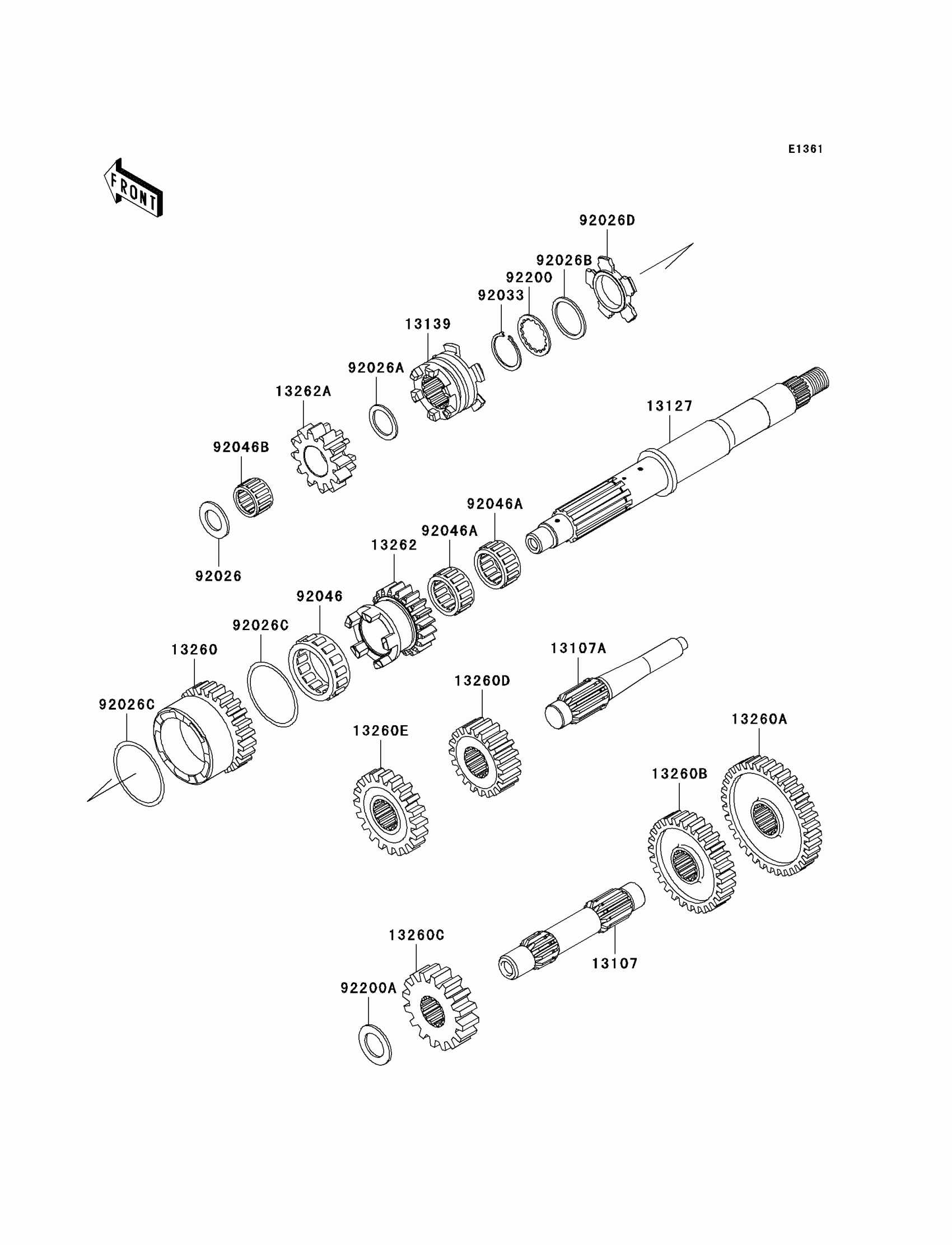

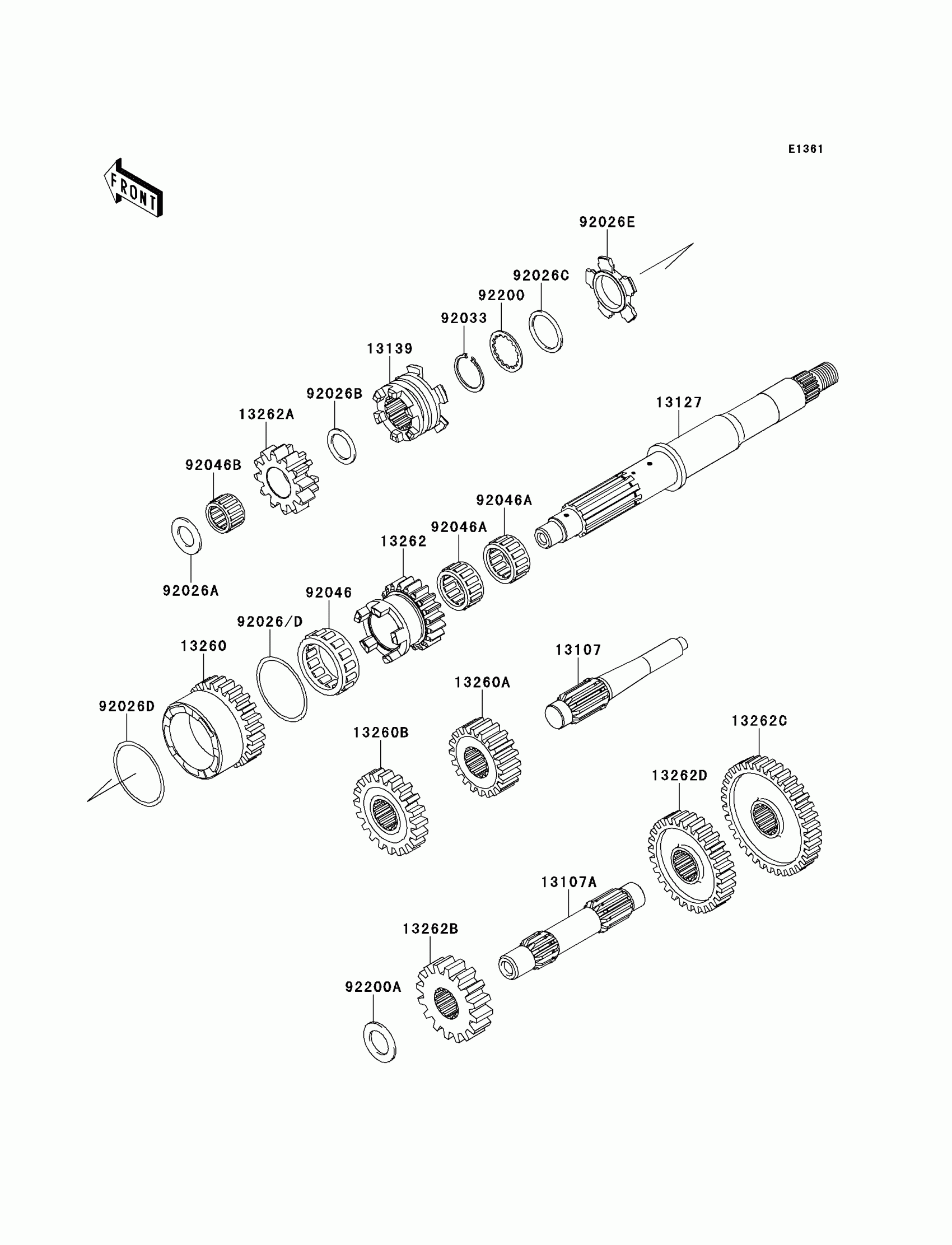

Kawasaki Brute Force 650 4x4 Transmission Diagram

#

Description
Price

13107

SHAFT,COUNTER

13107-0030

Unavailable

13107A

SHAFT,REVERSE,IDLE

13107-1437

Unavailable

13127

SHAFT-TRANSMISSION INPUT

13127-1282

Unavailable

13139

SHIFTER

13139-0003

Unavailable

13260

GEAR,INPUT HIGH,26T

13260-1867

$141.43

13260A

GEAR,DRIVEN LOW,36T

13260-1869

Unavailable

13260B

GEAR,DRIVEN HIGH,30T

13260-1870

Unavailable

13260C

GEAR,OUTPUT DRIVE,18T

13260-1871

Unavailable

13260D

GEAR,OUTPUT REVERSE,16T

13260-1872

$115.72

13260E

GEAR,DRIVEN REVERSE,16T

13260-1873

$115.72

13262

GEAR,INPUT LOW,20T

13262-0234

$134.04

13262A

GEAR,INPUT REVERSE,12T

13262-0235

$113.25

92026

SPACER,17.3X30X2.0

92026-1415

$8.05

92026A

SPACER,21.2X29X1.6

92026-1568

$7.98

92026B

SPACER,28.2X34.5X1.6

92026-1587

$4.18

92026C

SPACER,48.2X54.3X1.0

92026-1599

$6.18

92026D

SPACER,HI&LOW

92026-1600

$51.62

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

$36.04

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

$23.34

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

$20.02

92200

WASHER,28.5X34.0X1.5

92200-1240

$10.28

92200A

WASHER,20.3X33X2.0

92200-1351

$2.67
