Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

320

NUT-CASTLE

320H1000

$7.88

321

NUT-CASTLE,12MM

321H1200

$6.61

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.77

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,3.0X25

550D3025

$0.58

13070

GUIDE,STRUT

13070-1383

$33.95

39007

ARM-SUSP,LH

39007-0058

$87.50

39007A

ARM-SUSP,RH

39007-0059

$87.50

39186

KNUCKLE ASSY,FR,LH

39186-0041

$264.30

39186A

KNUCKLE ASSY,FR,RH

39186-0042

$264.30

42036

SLEEVE,12X20X26.7

42036-1365

$15.43

45023

STRUT

45023-1014

$478.32

55020

GUARD,FRONT AXLE,LH

55020-1768

$13.93

55020A

GUARD,FRONT AXLE,RH

55020-1769

$13.93

59266

JOINT-BALL

59266-1118

$71.27

92002

BOLT,FLANGED,12X67

92002-1861

$11.16

92022

WASHER,12.3X22X1.6

92022-1065

$3.96

92022A

WASHER,7X16X1.2

92022-1344

$3.92

92033

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,30BWD08A

92045-1448

$93.57

92046

BEARING-NEEDLE,TA202725ZE

92046-1290

$20.33

92049

SEAL-OIL,MF020N3

92049-1539

$8.74

92145

SPRING,STRUT,K=10.8N/MM

92145-0009

$131.84

92145A

SPRING,STRUT,K=9.81N/MM

92145-1445

$230.49

92151

BOLT,FLANGED,10X65

92151-1709

$11.69

92152

COLLAR

92152-1295

$10.99

92152A

COLLAR

92152-1296

$14.26

92200

WASHER,10.5X19X2.3

92200-1042

$3.92

92210

NUT,FLANGED,35MM

92210-1226

$18.52

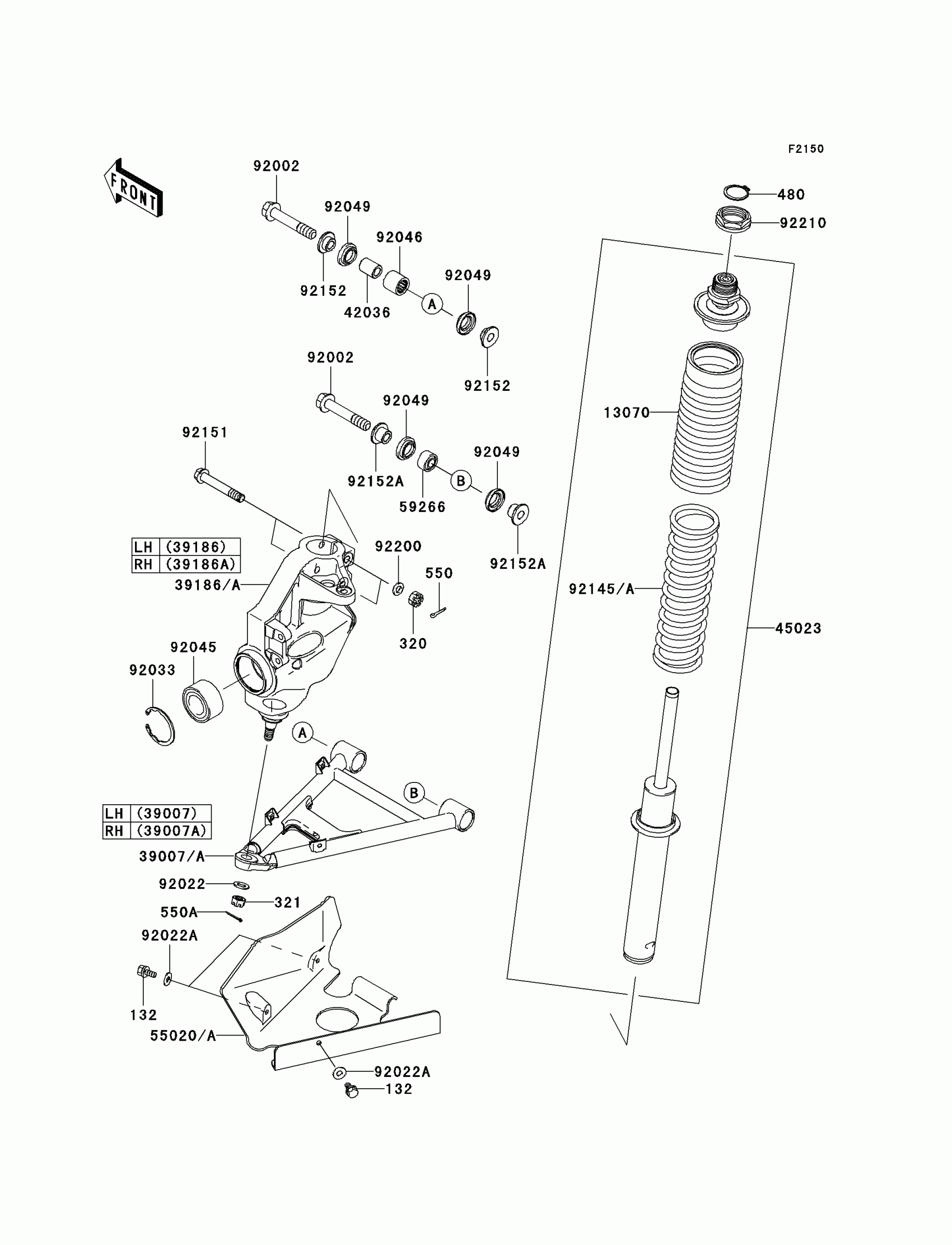

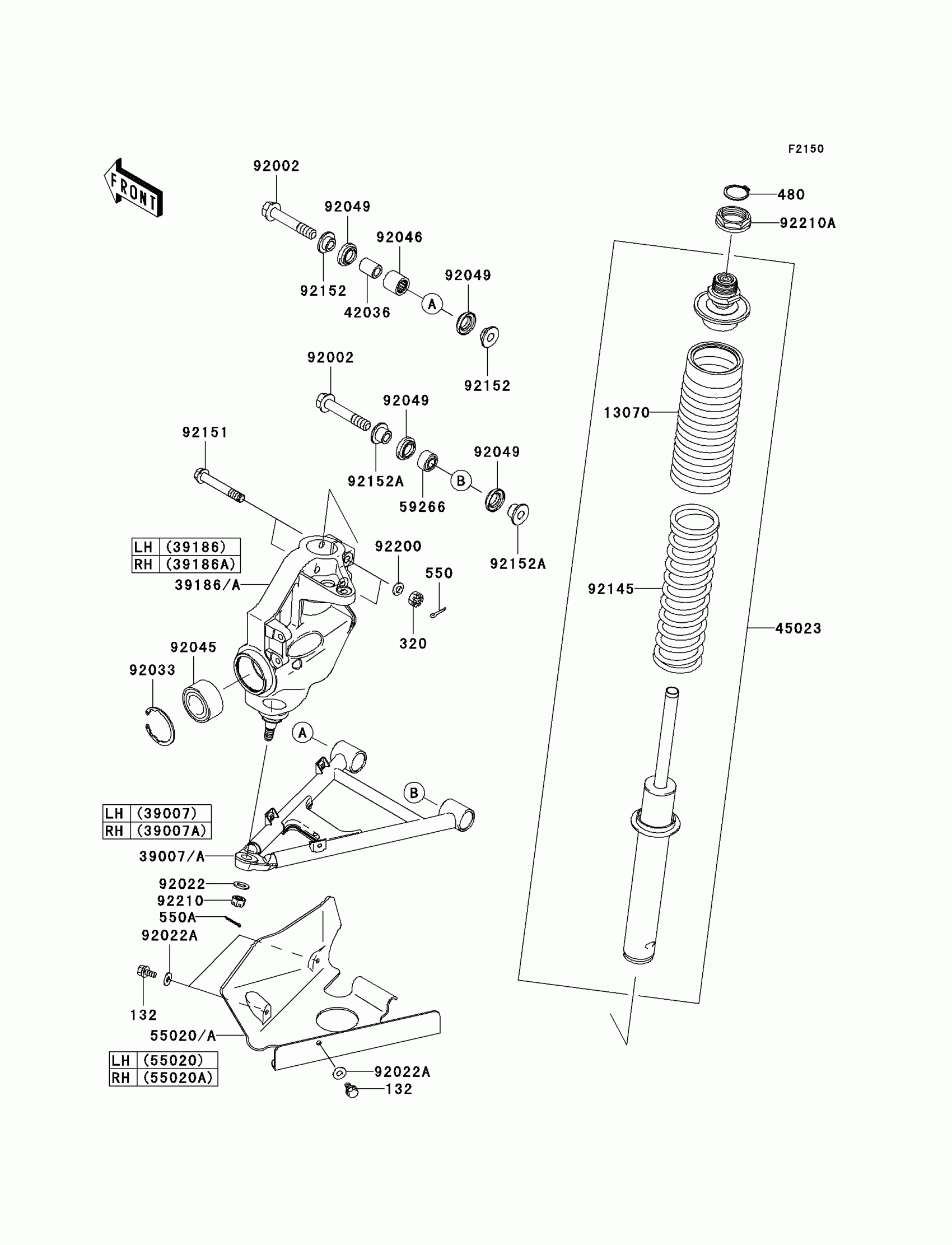

Kawasaki Brute Force 650 4x4 Suspension Diagram

BOLT-FLANGED-SMALL,6X12

NUT-CASTLE

NUT-CASTLE,12MM

CIRCLIP-TYPE-C,32MM

PIN COTTER 2.0X15

PIN-COTTER,3.0X25

GUIDE,STRUT

ARM-SUSP,LH

ARM-SUSP,RH

KNUCKLE ASSY,FR,LH

KNUCKLE ASSY,FR,RH

SLEEVE,12X20X26.7

STRUT

GUARD,FRONT AXLE,LH

GUARD,FRONT AXLE,RH

JOINT-BALL

BOLT,FLANGED,12X67

WASHER,12.3X22X1.6

WASHER,7X16X1.2

RING-SNAP,55MM

BEARING-BALL,30BWD08A

BEARING-NEEDLE,TA202725ZE

SEAL-OIL,MF020N3

SPRING,STRUT,K=10.8N/MM

SPRING,STRUT,K=9.81N/MM

BOLT,FLANGED,10X65

COLLAR

COLLAR

WASHER,10.5X19X2.3

NUT,FLANGED,35MM
