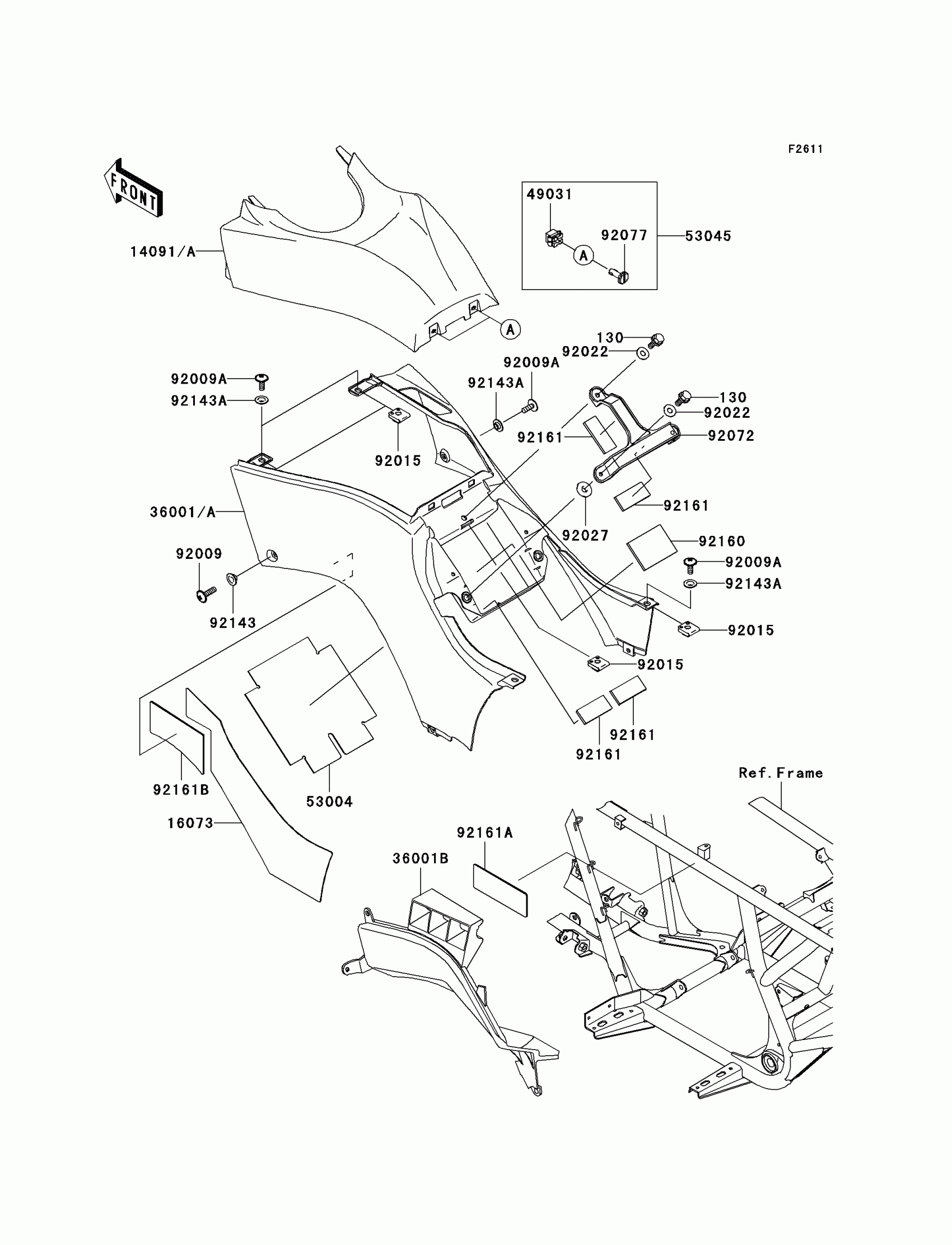

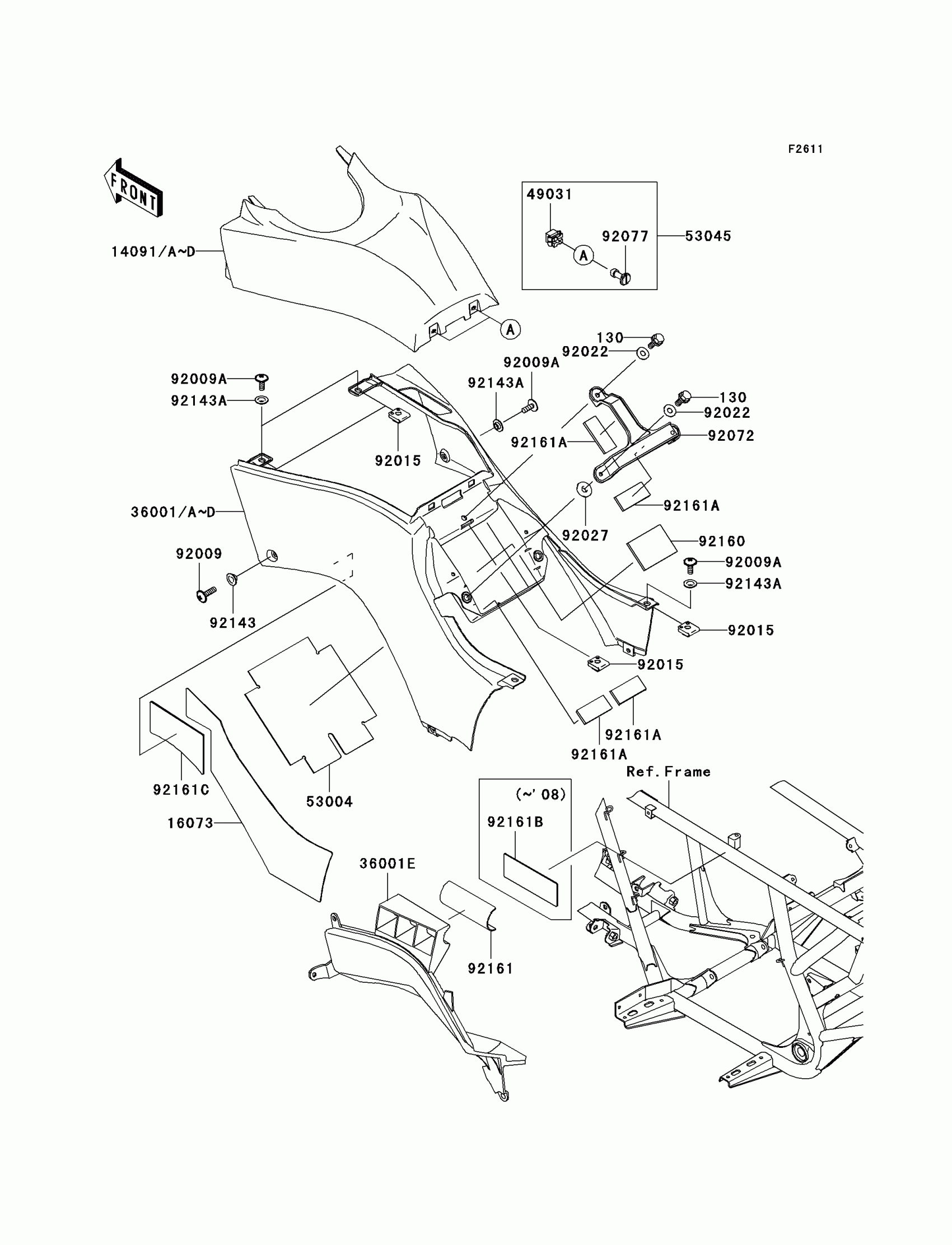

Kawasaki Brute Force 650 4x4 Side Covers Diagram

Description

Price

130

BOLT-FLANGED,6X18

130J0618

$1.69

14091

COVER,AIR CLEANER,A.RED

14091-0430-260

$57.46

14091A

COVER,AIR CLEANER,W.GREEN

14091-0430-286

$54.82

16073

INSULATOR,SIDE COVER

16073-0019

$39.03

36001

COVER-SIDE,A.RED

36001-0065-260

$79.70

36001A

COVER-SIDE,W.GREEN

36001-0065-286

$76.09

36001B

COVER-SIDE

36001-1647

$30.28

49031

LATCH

49031-0001

Unavailable

53004

MAT,BATTERY CASE

53004-1172

$35.62

53045

HOOK-ASSY

53045-0007

$8.46

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR,L=4.7

92027-1964

$7.34

92072

BAND,BATTERY

92072-1406

$6.96

92077

KNOB

92077-0002

Unavailable

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92160

DAMPER,BATTERY

92160-1897

$6.21

92161

DAMPER,30X70X5

92161-1127

$7.65

92161A

DAMPER,SIDE COVER

92161-1201

$10.53

92161B

DAMPER,FUEL TANK COVER

92161-1202

$15.01
