2013 Kawasaki Brute Force® 650 4x4 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2013 Kawasaki Brute Force® 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

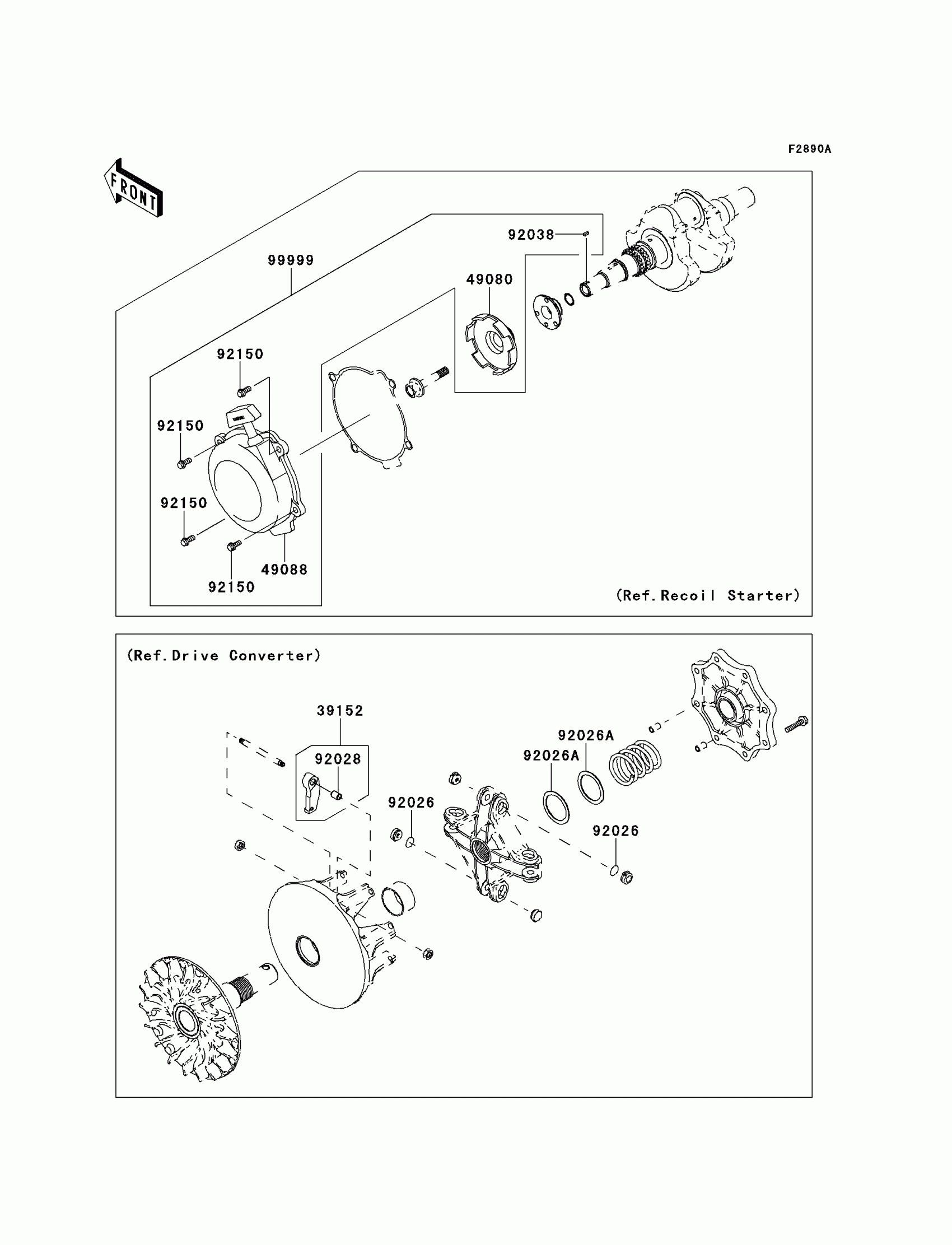

2013 Kawasaki Brute Force® 650 4x4 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39152

WEIGHT-RAMP

39152-1088

1

$52.98

In stock

49080

PULLEY-STARTING

49080-1057

1
Out of stock

49088

STARTER-RECOIL

49088-1056

1
Out of stock

92026

SPACER,T=0.1

92026-0038

1
Out of stock

92026A

SPACER,39X49.5X1.0

92026-1603

1
Out of stock

92028

BUSHING

92028-1973

1
Out of stock

92038

KEY,SUNK

92038-1051

1
Out of stock

92150

BOLT,6X14

92150-1916

1
Out of stock

99999

KIT.,RECOIL STARTER

99999-0244

1
Out of stock
