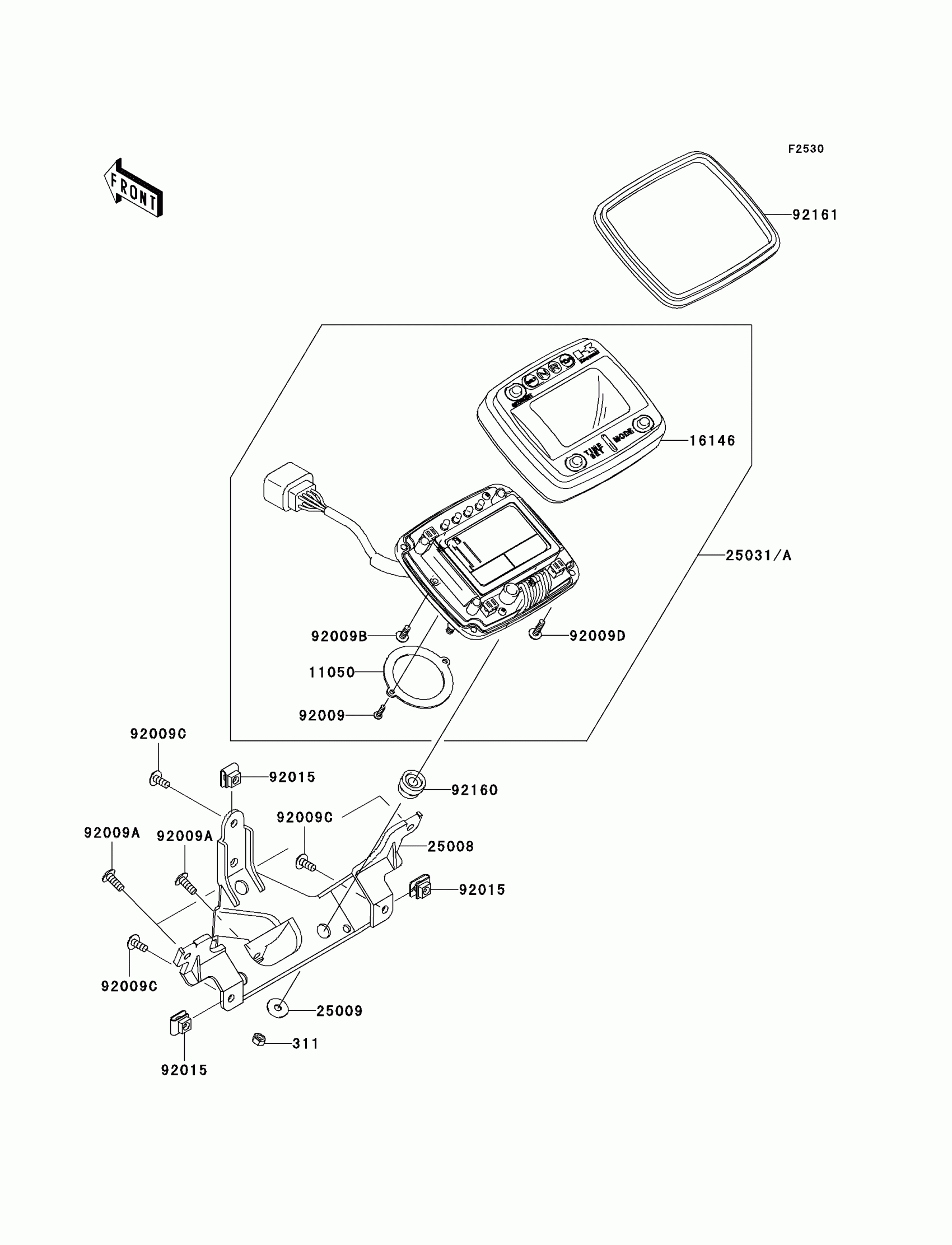

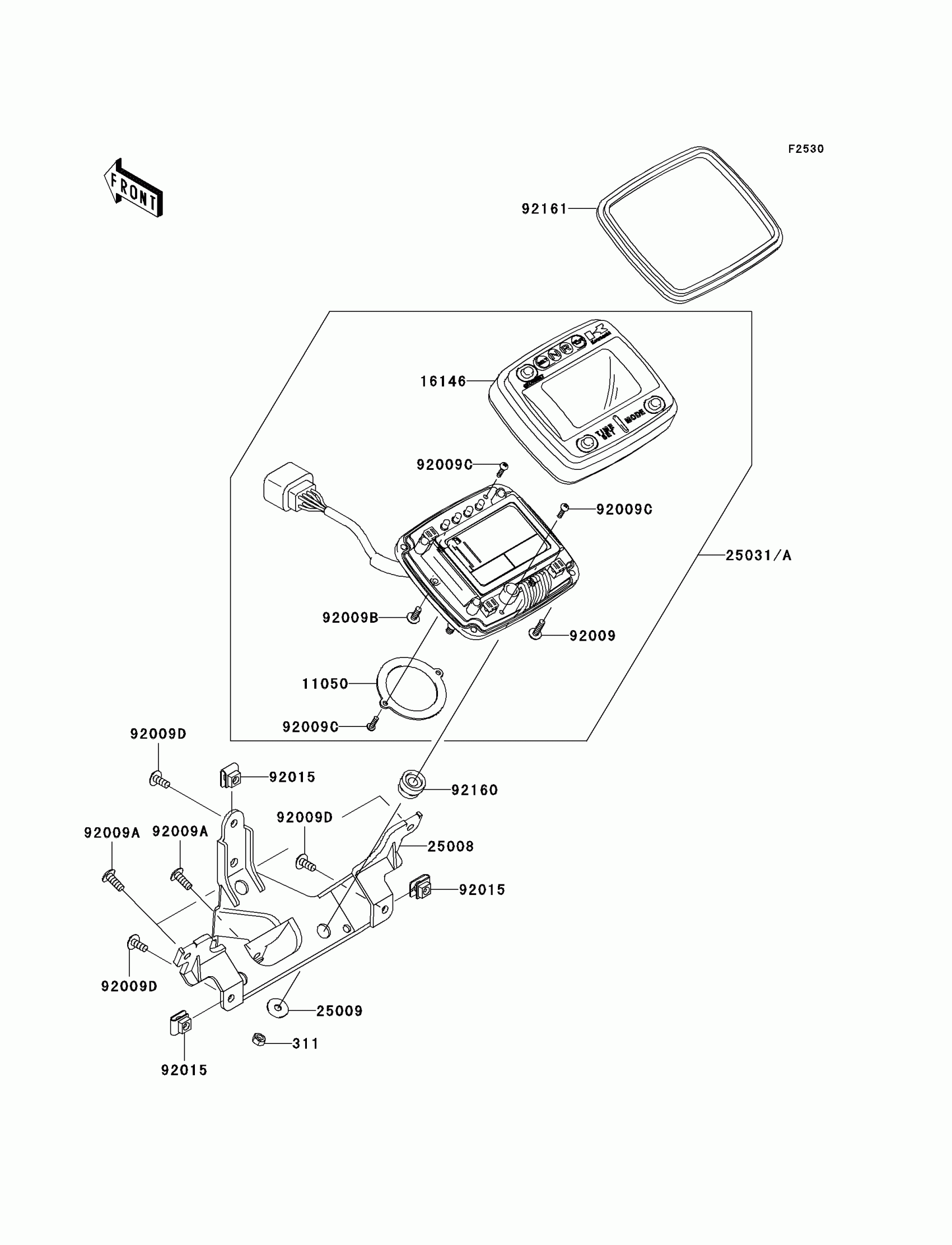

Kawasaki Brute Force® 650 4x4 Meter(s) Diagram

Description

Price

311

NUT-HEX,5MM

311AB0500

$0.43

11050

BRACKET,METER

11050-1932

$9.94

16146

COVER-ASSY,UPPER

16146-0011

$158.65

25008

BRACKET-METER

25008-0003

Unavailable

25009

WASHER,5.2X16X1.2

25009-004

$3.65

92009

SCREW,TAPPING,4X16

92009-1163

$4.10

92009A

SCREW,TAPPING,5X14

92009-1197

$3.92

92009B

SCREW,TAPPING,4X12

92009-1254

$4.11

92009C

SCREW,3X12

92009-1326

$3.65

92009D

SCREW,5X12

92009-1652

$3.96

92015

NUT,5MM

92015-1573

$6.63

92160

DAMPER

92160-1460

$4.87

92161

DAMPER,METER,UPP

92161-1114

$4.14

25031

METER-ASSY,MPH

25031-0034

$1,058.76

25031A

METER-ASSY,KPH

25031-0057

$965.33
