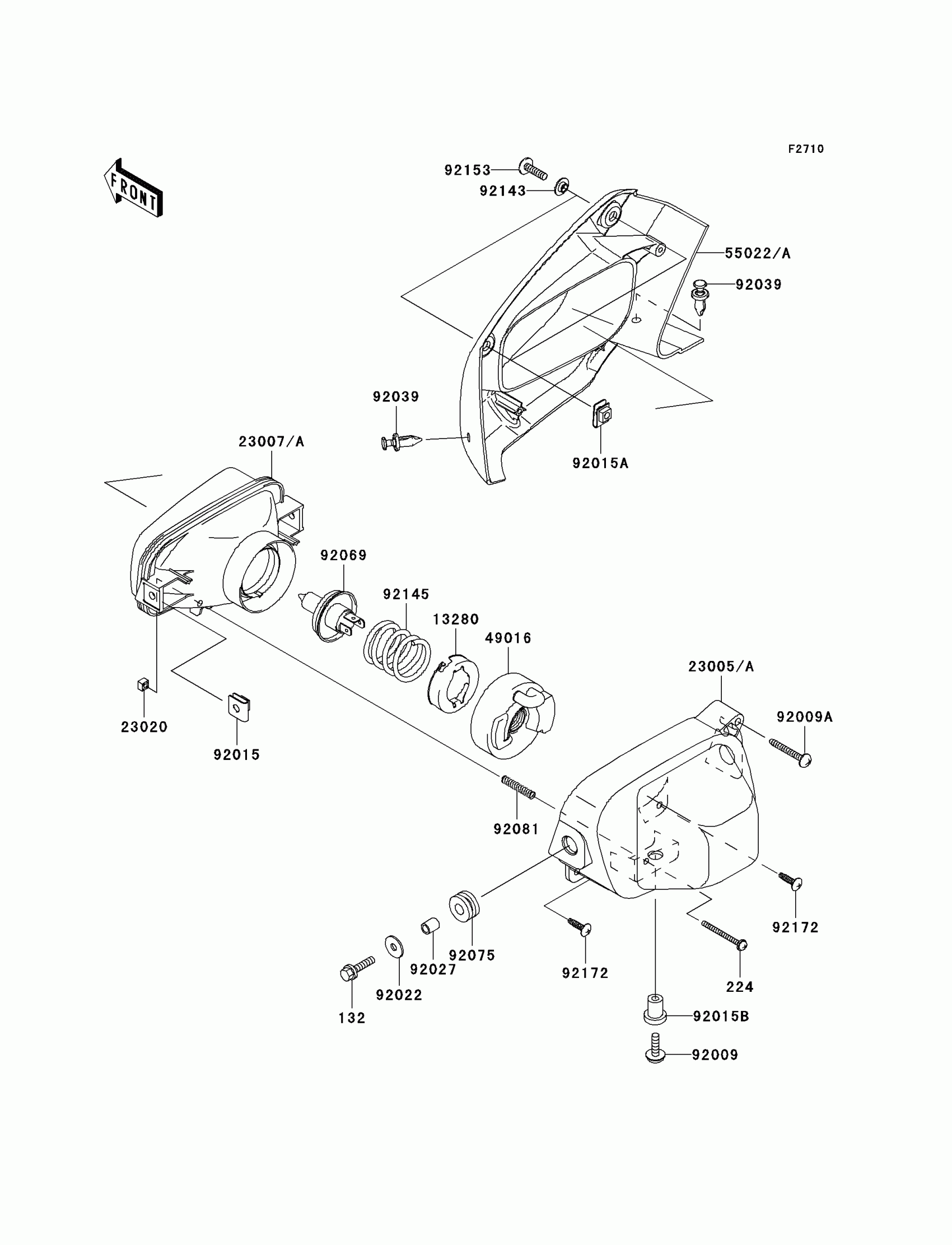

Kawasaki Brute Force® 650 4x4 Headlight(s) Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
224
SCREW-PAN-WP-CROS,4X45
224AA0445
$1.81
13280
HOLDER,BULB SETTING
13280-1198
$9.78
23005
BODY-COMP-HEAD LAMP,LH
23005-1180
$61.25
23005A
BODY-COMP-HEAD LAMP,RH
23005-1181
$61.25
23007
LENS-COMP,HEAD LAMP,LH
23007-1389
$48.10
23007A
LENS-COMP,HEAD LAMP,RH
23007-1390
$48.10
23020
NUT,4MM,FOCUS ADJUST
23020-018
$4.65
49016
COVER-SEAL,HEAD LAMP
49016-1213
$9.41
55022
COVER-HEAD LAMP,LH,F.BLACK
55022-0017-6Z
$15.79
55022A
COVER-HEAD LAMP,RH,F.BLACK
55022-0018-6Z
$15.79
92009
SCREW
92009-1664
$4.50
92009A
SCREW,TAPPING,5X40
92009-1928
$2.52
92015
NUT,6MM
92015-1094
$8.58
92015A
NUT,6MM
92015-1602
$7.34
92015B
NUT,RUBBER,6MM
92015-1692
$7.34
92022
WASHER,6.5X20X1.6
92022-125
$1.40
92027
COLLAR,6.8X10X12
92027-162
$6.57
92039
RIVET
92039-1229
$1.19
92069
BULB,12V 45/45W,T15
92069-1114
$29.28
92075
DAMPER,10X24X12
92075-1690
$5.00
92081
SPRING,FOCUS ADJUST
92081-1896
$5.25
92143
COLLAR
92143-1087
$4.31
92145
SPRING,BULB SETTING
92145-1346
$11.59
92153
BOLT,SOCKET,6X22
92153-0574
$2.61
92172
SCREW
92172-1072
$2.41
