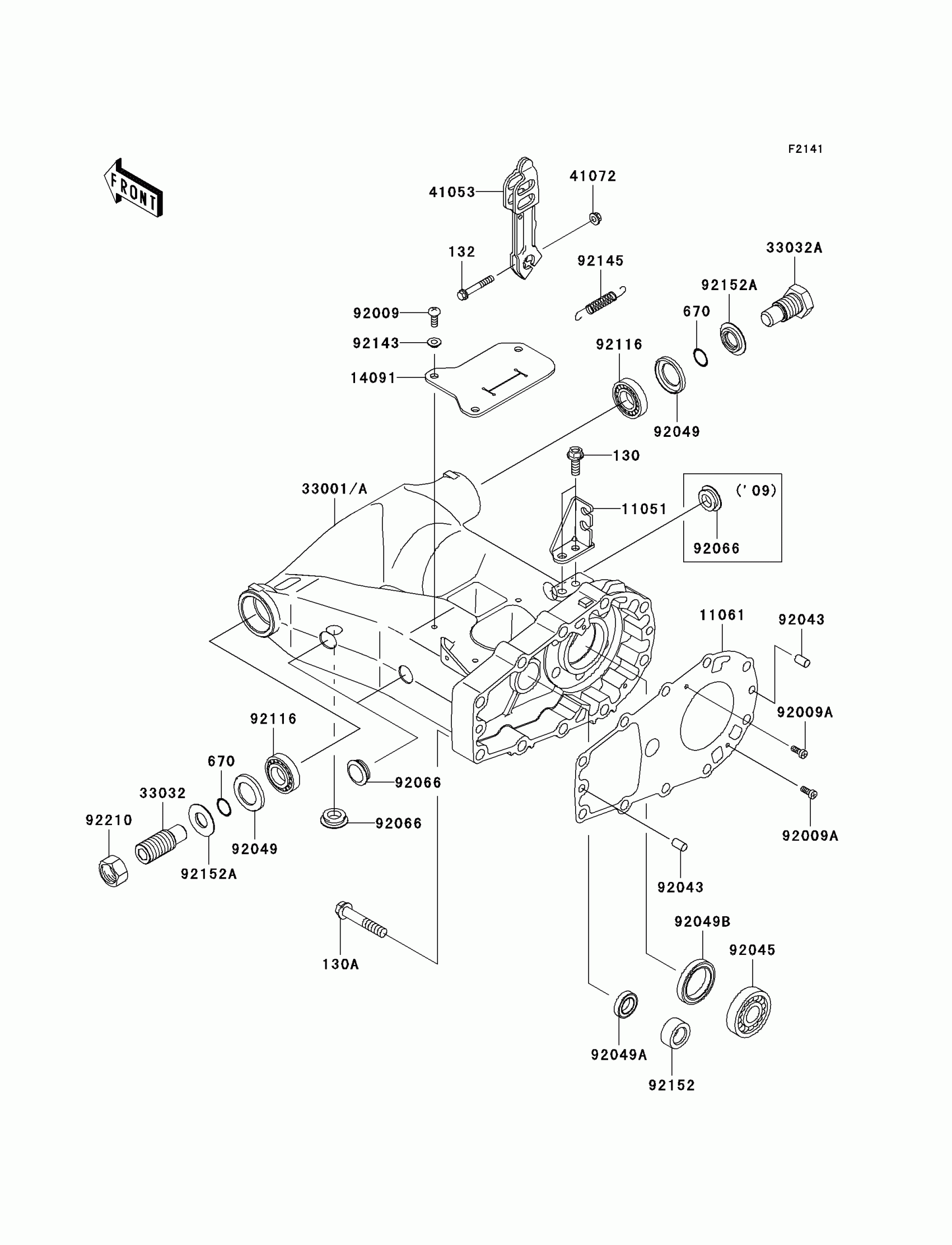

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Swingarm Diagram

Description

Price

130

BOLT-FLANGED,8X22

130BB0822

$1.95

130A

BOLT-FLANGED,10X55

130CA1055

$2.27

132

BOLT-FLANGED-SMALL,6X40

132BA0640

$3.39

670

O RING,16MM

670B2016

$1.04

11051

BRACKET,CABLE

11051-1762

$9.51

11061

GASKET,SWING ARM

11061-1065

$43.40

14091

COVER

14091-7508

$5.73

33001A

ARM-COMP-SWING

33001-0152

$699.52

33032

SHAFT-SWING ARM,LEFT SIDE

33032-1197

$35.86

33032A

SHAFT-SWING ARM,RIGHT SIDE

33032-1200

$35.86

41053

LEVER-BRAKE CAM

41053-1094

$56.05

41072

NUT,6MM

41072-007

$2.99

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,4X10

92009-1936

$1.43

92043

PIN,8X14

92043-1567

$1.62

92045

BEARING-BALL,TMBO/28C3

92045-0093

Unavailable

92049

SEAL-OIL,26406

92049-1030

$7.41

92049A

SEAL-OIL,TC17X28X6

92049-1537

$8.98

92049B

SEAL-OIL,HTC35X48X7

92049-1538

$11.71

92066

PLUG

92066-1534

$1.52

92116

BEARING-ROLLER,4T30203E1

92116-1001

$33.92

92143

COLLAR

92143-1331

$3.01

92145

SPRING,BRAKE LEVER RETURN

92145-1313

$3.78

92152

COLLAR

92152-1240

$14.61

92152A

COLLAR

92152-1356

$7.76

92210

NUT,22MM

92210-0190

$6.25
