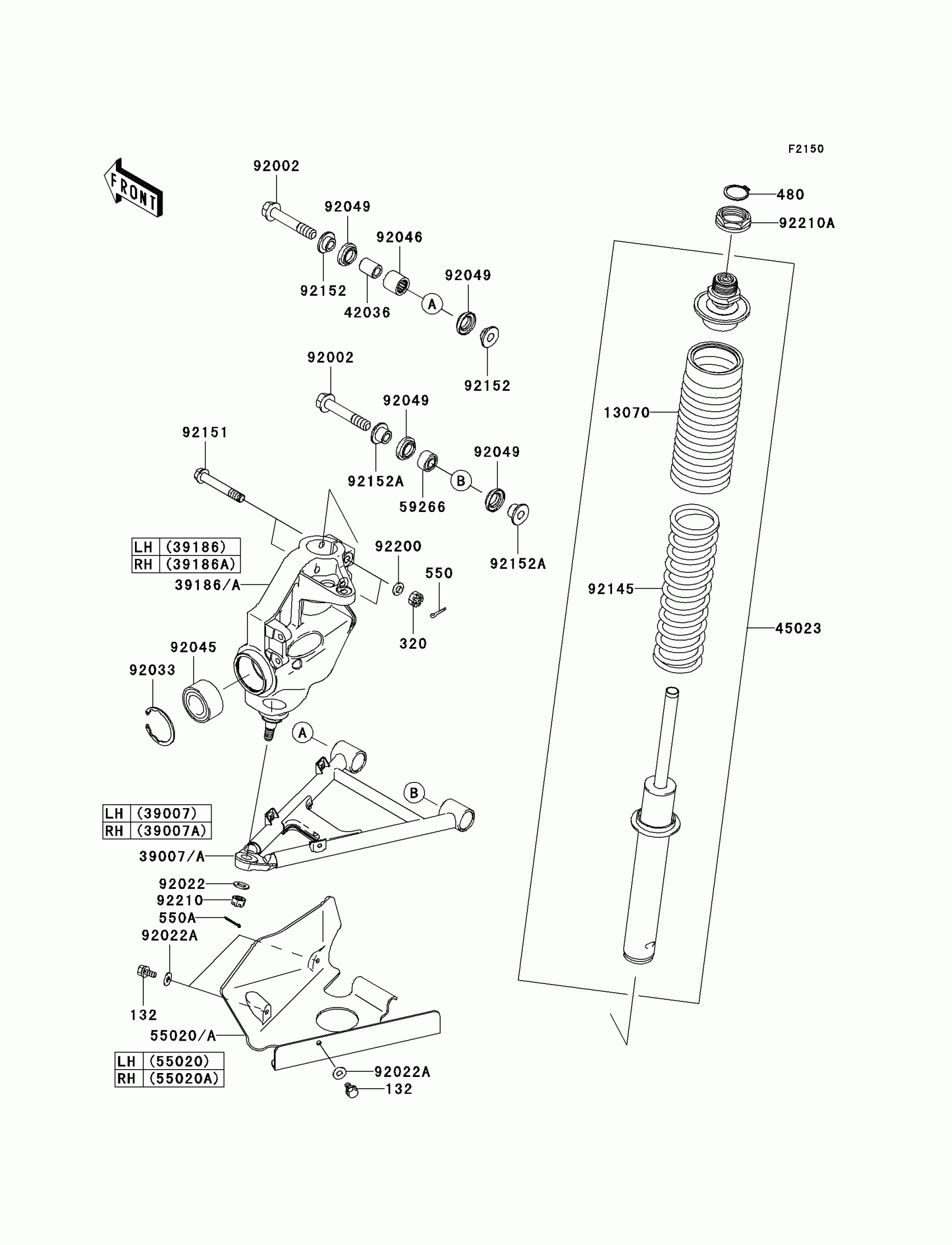

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Suspension Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

320

NUT-CASTLE

320BA1000

$8.27

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.28

550

PIN-COTTER,2.0X15

550AA2015

$0.90

550A

PIN-COTTER,3.0X25

550AA3025

$0.59

13070

GUIDE,STRUT

13070-1383

$34.60

39007

ARM-SUSP,LH

39007-0058

$89.09

39007A

ARM-SUSP,RH

39007-0059

$89.09

39186

KNUCKLE ASSY,FR,LH

39186-0041

$269.60

39186A

KNUCKLE ASSY,FR,RH

39186-0042

$269.60

42036

SLEEVE,12X20X26.7

42036-1365

$11.71

45023

STRUT

45023-0004

$458.91

55020

GUARD,FRONT AXLE,LH

55020-1768

$10.56

55020A

GUARD,FRONT AXLE,RH

55020-1769

$13.19

59266

JOINT-BALL

59266-1118

$72.63

92002

BOLT,FLANGED,12X67

92002-1861

$8.49

92022

WASHER,12.3X22X1.6

92022-1065

$3.58

92022A

WASHER,7X16X1.2

92022-1344

$2.99

92033

RING-SNAP,55MM

92033-1274

$7.18

92045

BEARING-BALL,30BWD08ACA13

92045-0095

Unavailable

92046

BEARING-NEEDLE,TA202725ZE

92046-1290

$16.46

92049

SEAL-OIL,MF020N3

92049-1539

$6.67

92145

SPRING,STRUT,K=10.8N/MM

92145-0009

$133.24

92151

BOLT,FLANGED,10X65

92151-1709

$11.20

92152

COLLAR

92152-1295

$8.36

92152A

COLLAR

92152-1296

$10.83

92200

WASHER,10.5X19X2.3

92200-1042

$2.99

92210

NUT,CASTLE,12MM

92210-0395

$2.95

92210A

NUT,FLANGED,35MM

92210-1226

$17.32
