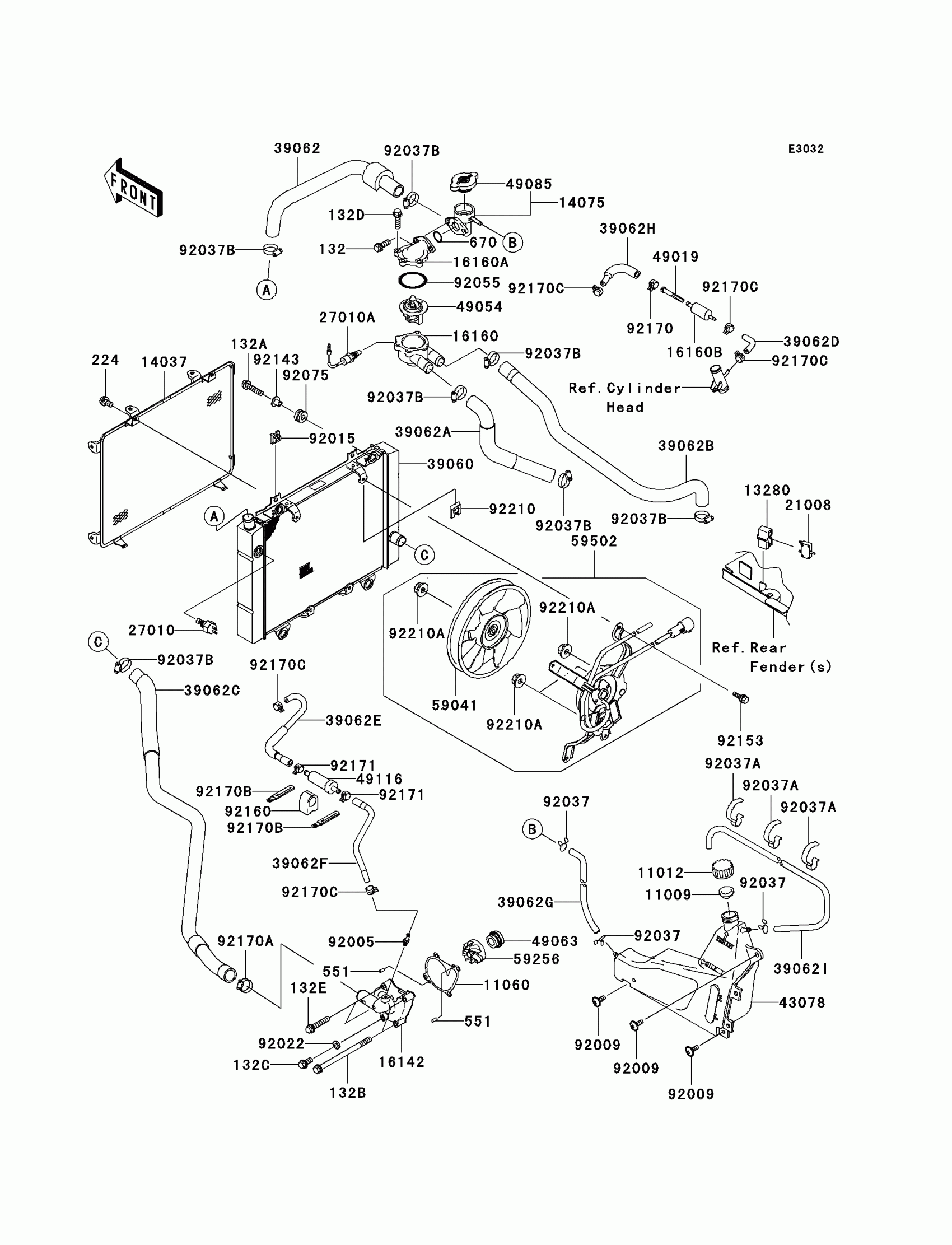

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11060

GASKET,WATER PUMP

11060-1964

$5.79

13280

HOLDER,BREAKER

13280-0082

$4.92

14037

SCREEN,RADIATOR

14037-1283

$81.08

14075

CAP-ASSY,RADIATOR

14075-1085

$151.81

16142

COVER-PUMP,WATER

16142-0002

$85.44

16160

BODY,THERMOSTAT,LWR

16160-1112

$75.58

16160A

BODY,THERMOSTAT,UPP

16160-1113

$65.05

16160B

BODY

16160-1359

$7.18

21008

BREAKER,FAN MOTOR

21008-0001

$21.08

27010

SWITCH,FAN

27010-1202

$88.04

27010A

SWITCH,SENSOR WATER

27010-1346

$107.46

39060

RADIATOR

39060-0011

$920.40

39062

HOSE-COOLING,THERMO-RADIATOR

39062-0081

$42.24

39062A

HOSE-COOLING,HEAD,FR-THERMO

39062-0181

$13.02

39062B

HOSE-COOLING,HEAD,RR-THERMO

39062-0182

$22.56

39062C

HOSE-COOLING,RADIATOR-PUMP

39062-0183

$35.94

39062D

HOSE-COOLING,HEAD-FILTER

39062-1816

$4.14

39062E

HOSE-COOLING,CARB-VALVE

39062-1817

Unavailable

39062F

HOSE-COOLING,VALVE-WATER PUMP

39062-1818

Unavailable

39062G

HOSE-COOLING,THERMO-RESERV

39062-1823

$8.51

39062H

HOSE-COOLING,FILTER-CARB

39062-1858

$6.04

39062I

HOSE-COOLING,5.5X10.5X1030

39062-1872

$11.51

43078

RESERVOIR

43078-1171

Unavailable

49019

FILTER-WATER

49019-1068

$3.90

49054

THERMOSTAT

49054-1055

$48.15

49063

SEAL-MECHANICAL

49063-1055

$16.33

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

49116

VALVE-ASSY

49116-1190

$72.05

59041

FAN

59041-1062

$46.26

59256

IMPELLER

59256-1069

$17.30

59502

FAN-ASSY

59502-0012

$622.44

92005

FITTING,BLEED PIPE

92005-1337

$22.37

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT

92015-1487

$3.64

92022

WASHER,6.2X11X1

92022-304

$2.76

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,HOSE

92037-1552

$9.63

92037B

CLAMP,COOLING HOSE

92037-1589

$14.01

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132B

BOLT-FLANGED-SMALL,6X90

132BB0690

$5.93

132C

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132D

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.14

132E

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

224

SCREW-PAN-WP-CROS,6X12

224AB0612

$3.97

551

PIN-DOWEL,4X8

551A0408

$0.68

670

O RING,20MM

670B2020

$0.97

92055

RING-O,44.7X2.4

92055-1279

$5.61

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92143

COLLAR

92143-1353

$6.54

92153

BOLT

92153-0531

$1.85

92160

DAMPER,VALVE

92160-1451

$10.36

92170

CLAMP

92170-1491

$5.69

92170A

CLAMP

92170-1497

$12.75

92170B

CLAMP

92170-1514

$3.29

92170C

CLAMP

92170-2042

$1.00

92171

CLAMP

92171-0515

$5.56

92210

NUT

92210-1323

$3.19

92210A

NUT

92210-1396

$2.75
