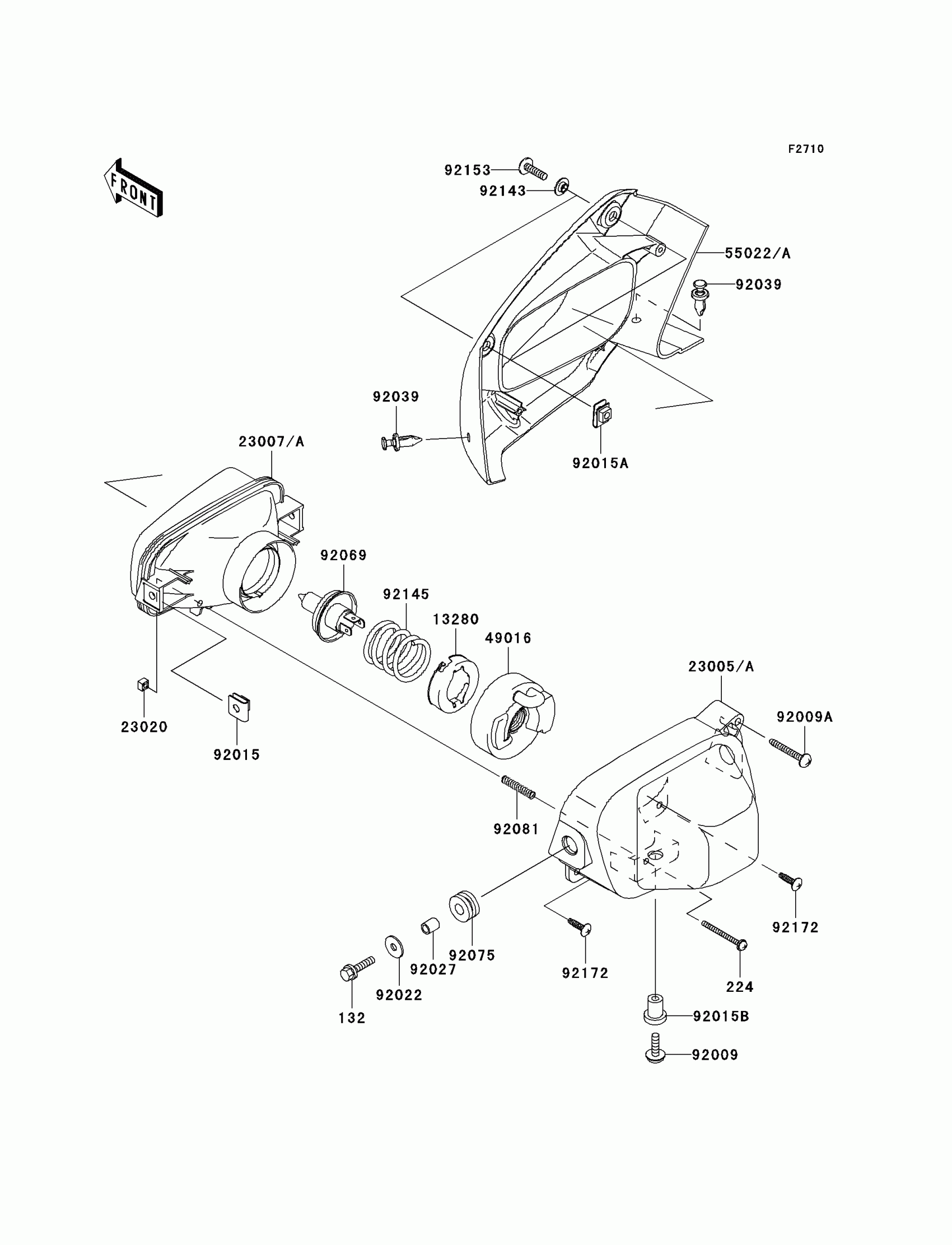

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Headlight(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.33

13280

HOLDER,BULB SETTING

13280-1198

$9.46

23005

BODY-COMP-HEAD LAMP,LH

23005-1180

$62.72

23005A

BODY-COMP-HEAD LAMP,RH

23005-1181

$62.72

23007

LENS-COMP,HEAD LAMP,LH

23007-1389

$49.03

23007A

LENS-COMP,HEAD LAMP,RH

23007-1390

$49.03

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

49016

COVER-SEAL,HEAD LAMP

49016-1213

$9.12

55022

COVER-HEAD LAMP,LH,F.BLACK

55022-0017-6Z

$11.97

55022A

COVER-HEAD LAMP,RH,F.BLACK

55022-0018-6Z

$14.88

92009

SCREW

92009-1664

$3.43

92009A

SCREW,TAPPING,5X40

92009-1928

$1.80

92015

NUT,6MM

92015-1094

$6.55

92015A

NUT,6MM

92015-1602

$5.61

92015B

NUT,RUBBER,6MM

92015-1692

$5.61

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92039

RIVET

92039-1229

$0.80

92069

BULB,12V 45/45W,T15

92069-1114

$29.84

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92143

COLLAR

92143-1087

$2.98

92145

SPRING,BULB SETTING

92145-1346

$11.10

92153

BOLT,SOCKET,6X22

92153-0574

$1.85

92172

SCREW

92172-1072

$1.73
