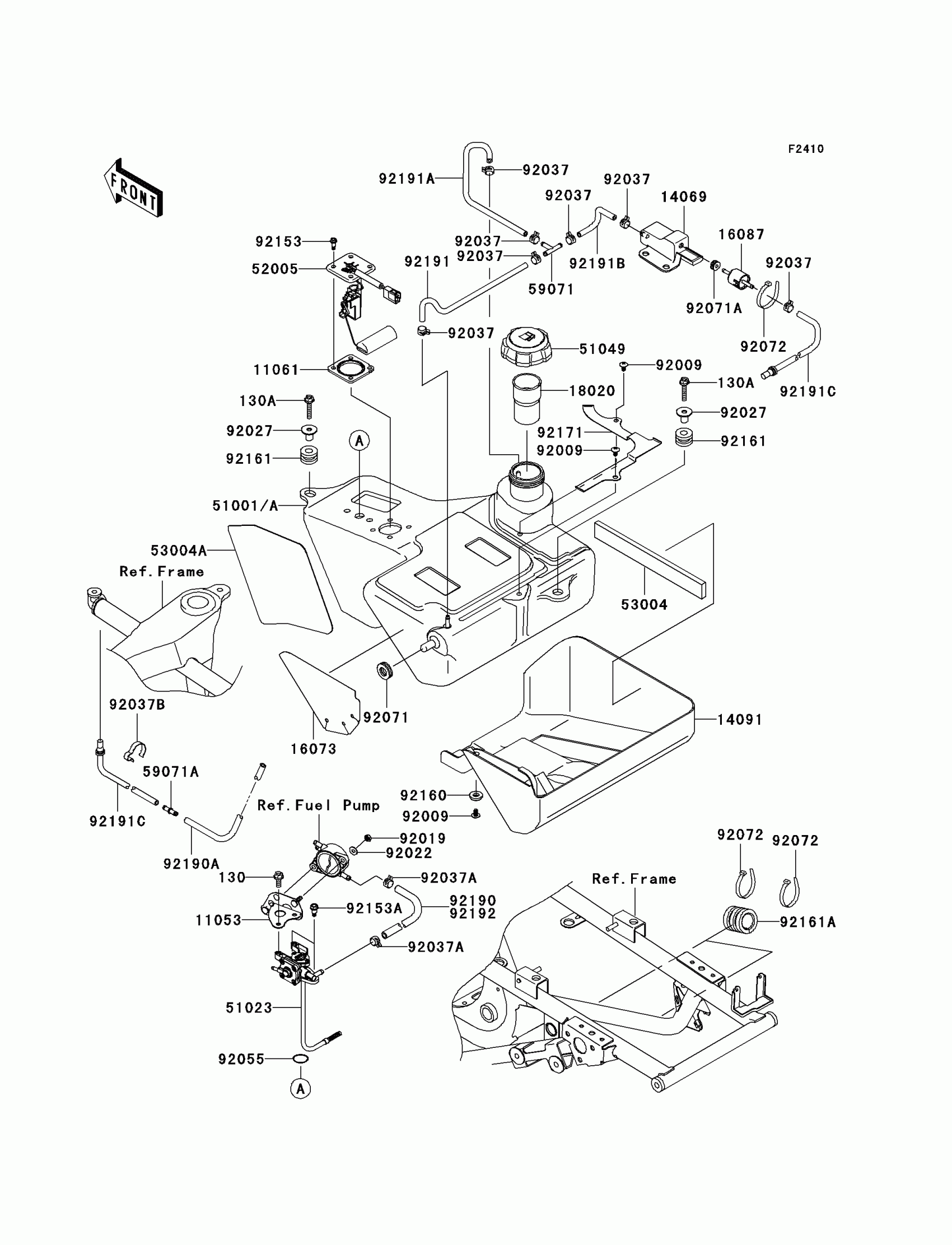

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Fuel Tank Diagram

#

Description
Price

130

BOLT-FLANGED,6X16

130BA0616

$1.20

11053

BRACKET,FUEL PUMP

11053-1639

$12.50

11061

GASKET,FUEL GAUGE

11061-0071

$23.75

14069

BREATHER,TANK

14069-1069

$19.72

14091

COVER,FUEL TANK

14091-0405

$53.79

16073

INSULATOR,FUEL TANK COVER

16073-0022

$8.26

16087

VALVE-CHECK

16087-0003

$51.80

18020

BAFFLE,FUEL TANK CAP

18020-1278

$11.05

51001A

TANK-COMP-FUEL

51001-0197

$225.63

51023

TAP-ASSY,FUEL

51023-0013

$139.71

51049

CAP-TANK,FUEL

51049-0001

Unavailable

52005

GAUGE,FUEL

52005-0016

$210.11

53004

MAT,FUEL TANK COVER

53004-1161

$7.91

53004A

MAT,FUEL TANK

53004-1165

$15.28

59071

JOINT

59071-3705

$4.91

59071A

JOINT

59071-3717

$3.55

92009

SCREW,6X12

92009-1480

$3.21

92019

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER,6.2X15X1.2

92022-2373

$0.43

92027

COLLAR,L=16.1

92027-1847

$6.22

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP,TUBE

92037-1505

$4.76

92037B

CLAMP,HOSE

92037-1552

$9.97

92055

RING-O,FUEL TAP

92055-0081

$8.12

92071

GROMMET,AIR SUCTION VALVE

92071-1249

$4.11

92071A

GROMMET

92071-1266

$5.18

92072

BAND,L=188

92072-1239

$1.73

92153

BOLT,FLANGED,5MM

92153-0361

$4.18

92153A

BOLT,6MM

92153-0824

$4.80

92160

DAMPER

92160-1017

$5.78

92161

DAMPER

92161-0106

$1.73

92161A

DAMPER,FUEL TANK,RR

92161-1111

$6.37

92171

CLAMP,TUBE

92171-0495

$30.10

92190A

TUBE,5X9X530

92190-1256

$7.61

92191

TUBE,TANK-FRONT

92191-1639

$11.32

92191A

TUBE,TANK-REAR

92191-1640

$12.25

92191B

TUBE,5X9X160

92191-1641

$4.34

92191C

TUBE,TANK BREATHER

92191-1666

$11.32

92192

TUBE,5.8X10.8X140

92192-0491

$24.76

130A

BOLT-FLANGED,6X30

130BA0630

$1.46
