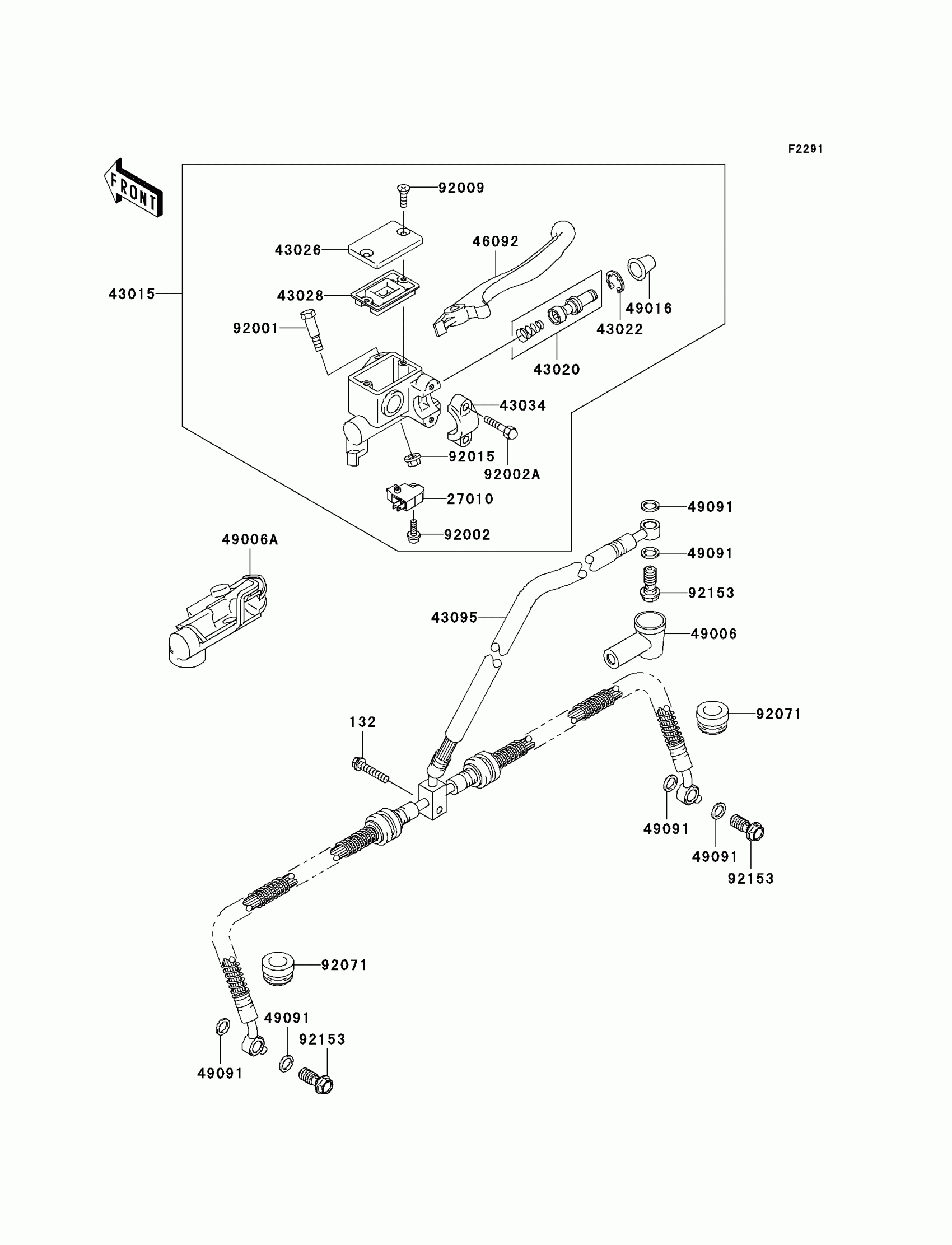

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X30

132BB0630

$3.14

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-1646

$380.70

43020

PISTON-COMP-BRAKE,FR

43020-1056

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1074

$20.73

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43095

HOSE-BRAKE,FR

43095-1401

$151.53

46092

LEVER-GRIP,FRONT BRAKE

46092-1208

$17.39

49006

BOOT,DUST

49006-1040

$8.74

49006A

BOOT

49006-1338

$10.03

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92071

GROMMET

92071-1264

$3.46

92153

BOLT,OIL,L=23

92153-0627

$4.15
