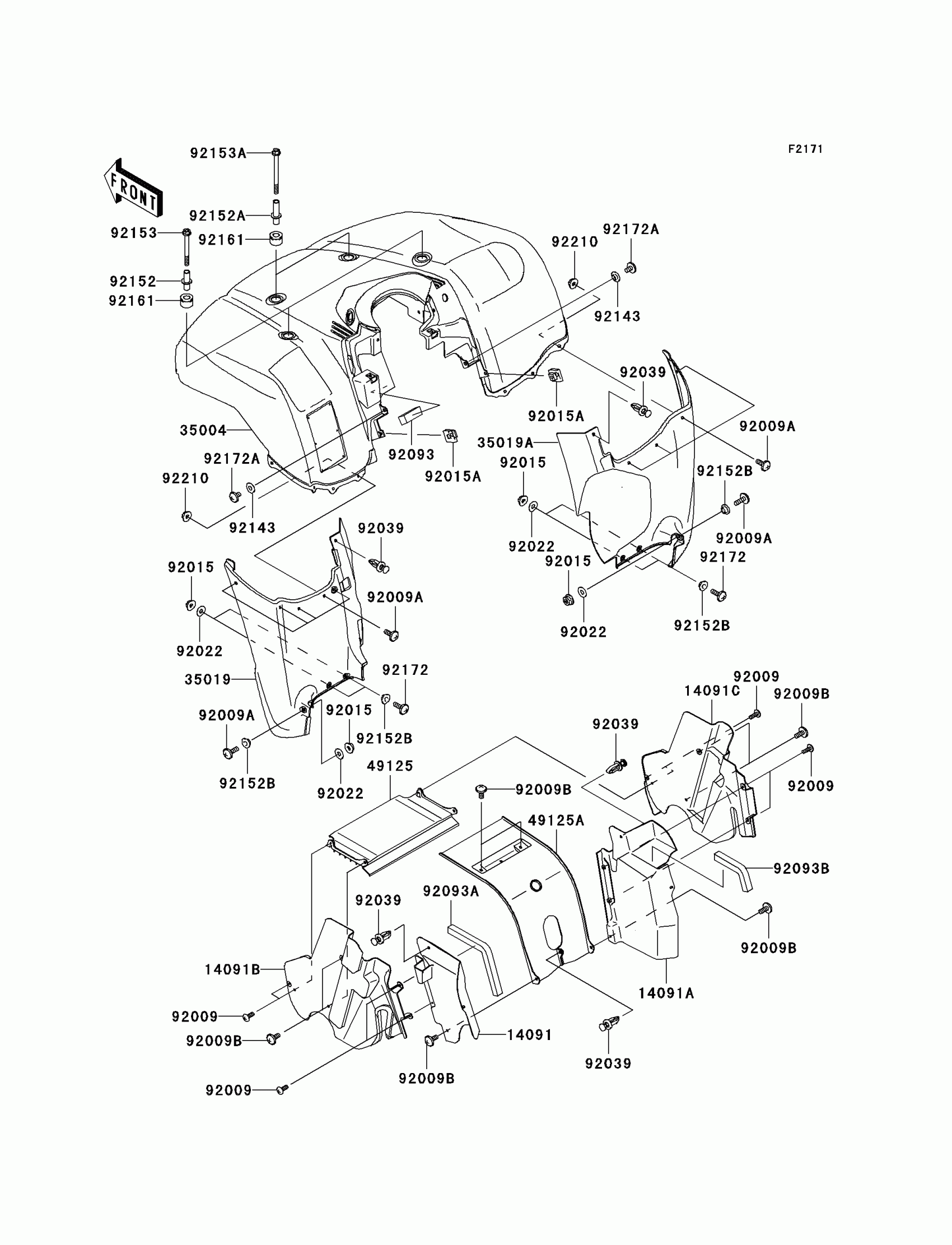

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Front Fender(s) Diagram

Description

Price

14091

COVER,SIDE,RR,LH

14091-1282

$14.88

14091A

COVER,SIDE,RR,RH

14091-1283

$14.88

14091B

COVER,SIDE,FR,LH

14091-1428

$18.24

14091C

COVER,SIDE,FR,RH

14091-1429

$18.24

35004

FENDER-FRONT,C.H.GREEN

35004-0044-826

$687.88

35019

FLAP,FR,LH,F.BLACK

35019-0038-6Z

$39.72

35019A

FLAP,FR,RH,F.BLACK

35019-0039-6Z

$39.72

49125

SHROUD,FR,LWR

49125-0006

$16.39

49125A

SHROUD,FR,UPP

49125-1081

$23.98

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92009A

SCREW,6X16

92009-1621

Unavailable

92009B

SCREW,6X14

92009-1662

$2.99

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92039

RIVET

92039-1229

$0.80

92093

SEAL,FR FENDER

92093-0038

$3.64

92093A

SEAL,INNER COVER,LH

92093-0039

$8.76

92093B

SEAL,INNER COVER,RH

92093-0040

$5.12

92143

COLLAR

92143-1087

$2.98

92152

COLLAR,L=60.7

92152-0026

$11.20

92152A

COLLAR,L=76.8

92152-0222

$13.80

92152B

COLLAR

92152-0224

$4.27

92153

BOLT,FLANGED,8X75

92153-0982

$3.66

92153A

BOLT,FLANGED,8X95

92153-0983

$3.71

92161

DAMPER,L=25.5

92161-1166

$4.31

92172

SCREW,6X18

92172-0002

$1.98

92172A

SCREW,6X10

92172-0005

$1.73

92210

NUT,6MM

92210-1368

$1.80
