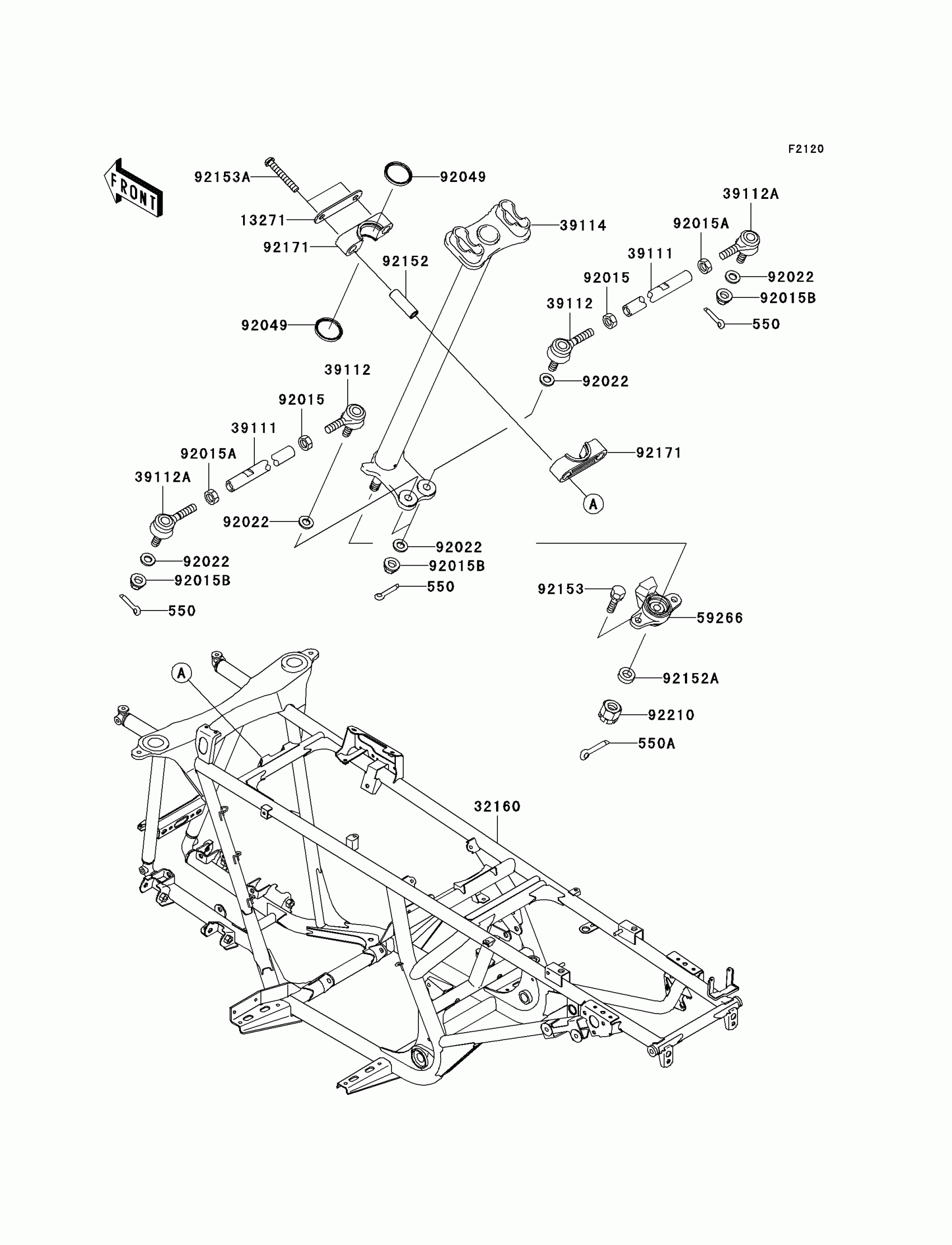

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Frame Diagram

Description

Price

550

PIN-COTTER,2.0X15

550AA2015

$1.12

550A

PIN-COTTER,3.0X25

550AA3025

$0.62

13271

PLATE,STEERING

13271-0419

$2.02

32160

FRAME-COMP

32160-0002

$985.42

39111

ROD-TIE

39111-1090

$32.37

39112

RODEND-TIE

39112-1083

$90.56

39112A

RODEND-TIE

39112-1085

$49.84

39114

SHAFT-COMP-STRG

39114-0007

$230.06

59266

JOINT-BALL

59266-1125

$156.46

92015

NUT,LOCK,10MM

92015-1460

$6.52

92015A

NUT,LOCK,10MM

92015-1494

$6.22

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92022

WASHER,10.2X20X1.5

92022-3742

$4.18

92049

SEAL-OIL,SR31.8X37.5X3.8LR

92049-7501

$5.00

92152

COLLAR,9.1X13.95X44

92152-0230

$28.82

92152A

COLLAR,12X21.3X7

92152-1351

$12.83

92153

BOLT,8X30

92153-1065

$2.93

92153A

BOLT,SOCKET,8X55

92153-1324

$7.92

92171

CLAMP,STEERING

92171-0399

$8.19

92210

NUT,12MM

92210-7501

$3.73
