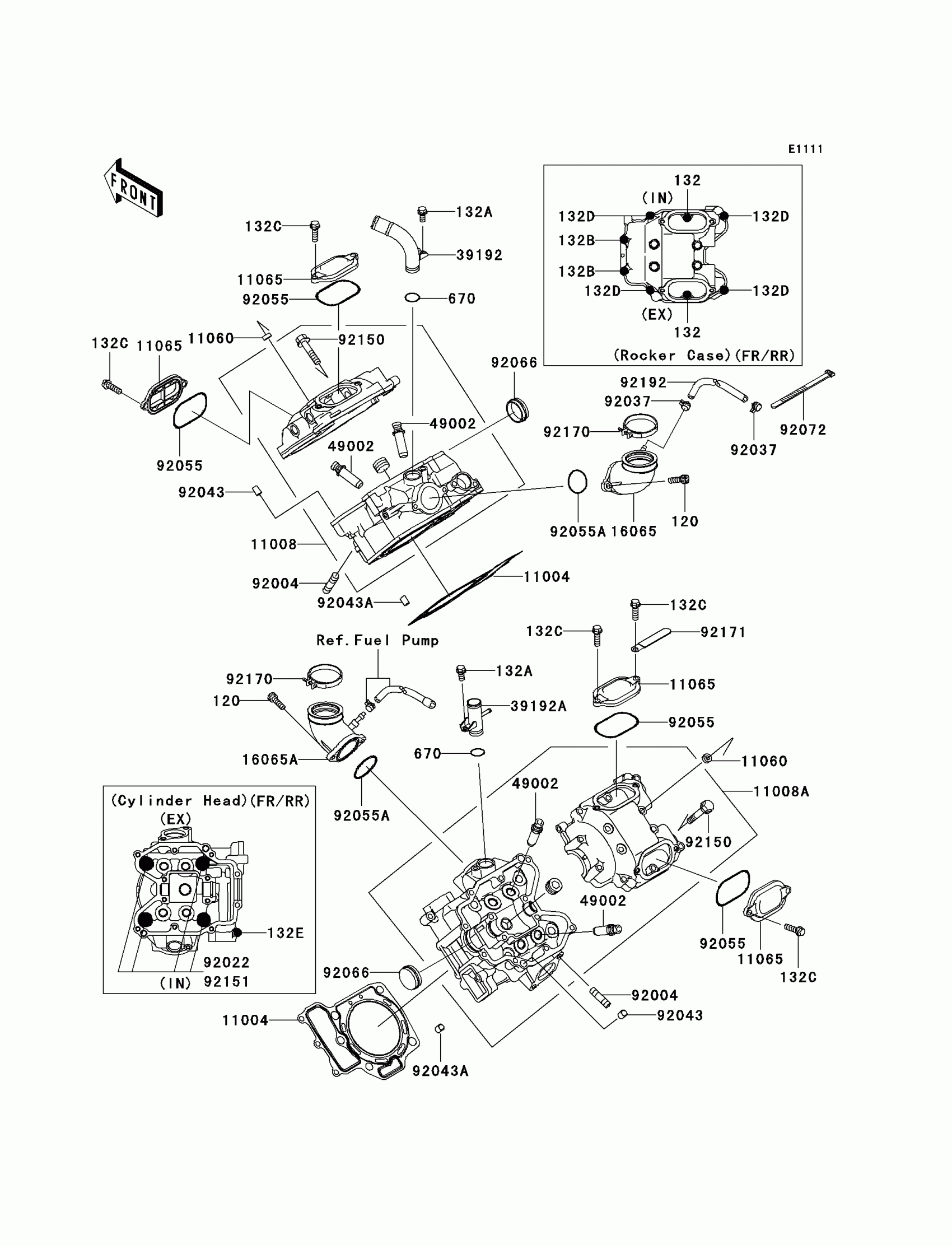

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Cylinder Head Diagram
#
Description
Price
120
BOLT-SOCKET,6X20
120CD0620
$4.67
132
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
132A
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132B
BOLT-FLANGED-SMALL,6X130
132BD06130
$4.11
132C
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
132D
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
132E
BOLT-FLANGED-SMALL,6X95
132BD0695
$6.54
670
O RING,16MM
670B2016
$1.36
11004
GASKET-HEAD
11004-0030
$34.59
11008
HEAD-COMP-CYLINDER,FR
11008-0030
Unavailable
11008A
HEAD-COMP-CYLINDER,RR
11008-0031
Unavailable
11060
GASKET,6.2X12X0.3
11060-1994
$2.39
11065
CAP,ROCKER CASE
11065-1152
$24.91
16065
HOLDER-CARBURETOR,FR
16065-1370
$45.26
16065A
HOLDER-CARBURETOR,RR
16065-1371
$45.26
39192
PIPE-WATER
39192-1132
$21.01
39192A
PIPE-WATER
39192-1133
$30.81
49002
GUIDE-VALVE
49002-1097
Unavailable
92004
STUD,8X22
92004-1217
$5.65
92022
WASHER,11.5X20.5X1.6
92022-1720
$4.31
92037
CLAMP,TUBE
92037-1461
$3.88
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN,10.1X12X14
92043-4009
$6.22
92055
RING-O
92055-0112
$7.71
92055A
RING-O,38MM
92055-1295
$16.33
92066
PLUG
92066-1289
$14.36
92072
BAND,L=123
92072-030
$5.00
92150
BOLT,6X55
92150-1302
$6.34
92151
BOLT,FLANGED,10X150
92151-1917
$20.09
92170
CLAMP
92170-1722
$9.05
92171
CLAMP
92171-0456
$4.09
92192
TUBE,4X9X610
92192-0207
$5.00
