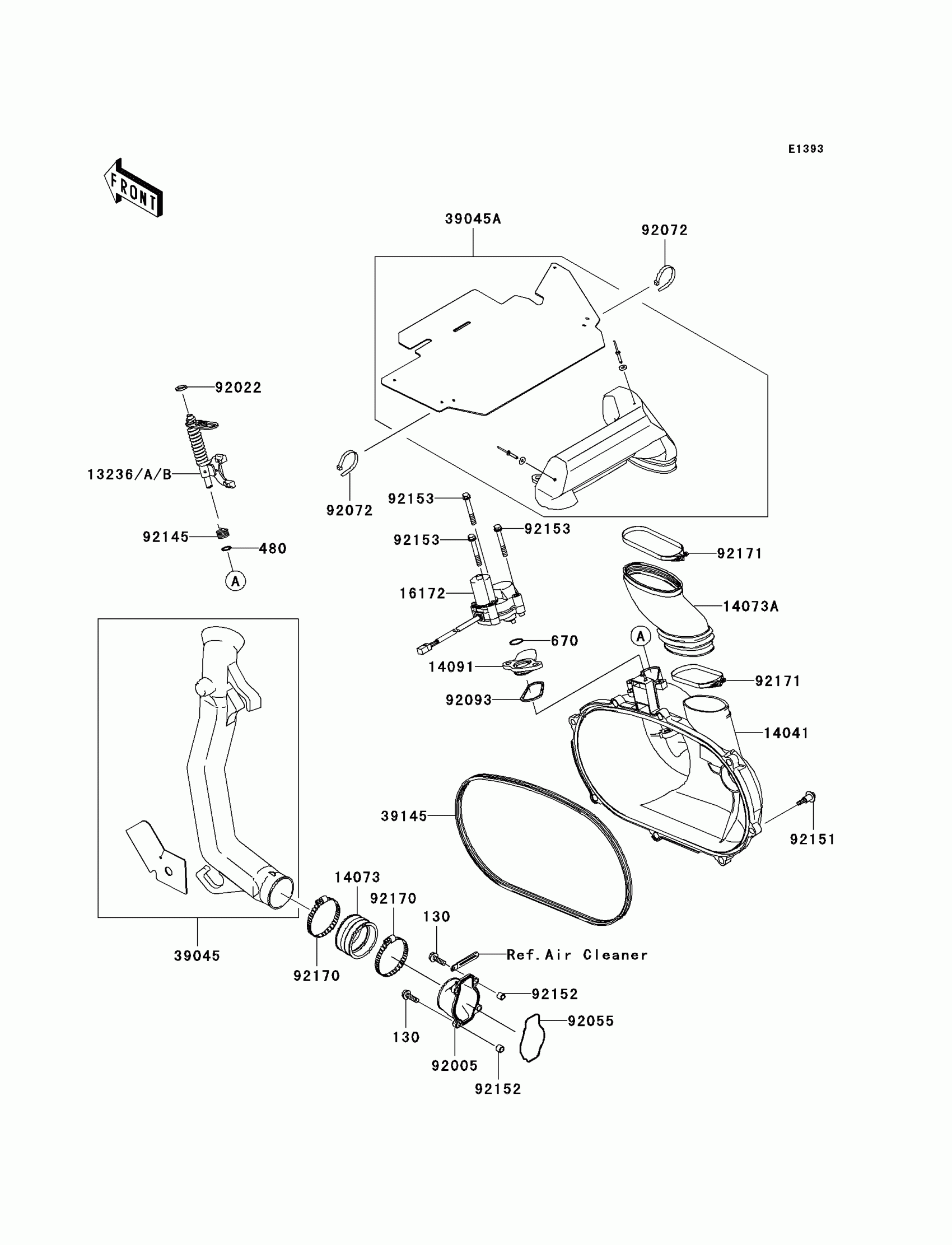

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Converter Cover Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CD0620

$1.76

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

670

O RING

670D3022

$2.80

13236

LEVER-COMP,YELLOW

13236-0046

Unavailable

13236A

LEVER-COMP,GREEN

13236-0047

Unavailable

13236B

LEVER-COMP,PAINT LESS

13236-0048

$131.68

14041

COVER-COMP

14041-1158

Unavailable

14073

DUCT,JOINT

14073-1775

$4.36

14073A

DUCT,EXHAUST

14073-1792

$17.27

14091

COVER

14091-1421

Unavailable

16172

ACTUATOR

16172-0006

Unavailable

39045

DUCT-ASSY,SNORKEL,IN

39045-0002

$30.00

39045A

DUCT-ASSY,SNORKEL,EX

39045-1063

$50.40

39145

TRIM-SEAL

39145-1135

Unavailable

92005

FITTING

92005-1387

$8.10

92022

WASHER,10.2X16X1

92022-1829

$4.31

92055

RING-O

92055-1630

$10.49

92072

BAND,L=188

92072-1239

$1.73

92093

SEAL

92093-1548

$10.06

92145

SPRING

92145-1567

$2.78

92151

BOLT,FLANGED,6X30

92151-1686

$9.43

92152

COLLAR

92152-1332

$4.18

92153

BOLT,6X47

92153-0678

$3.07

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-1336

$13.55
