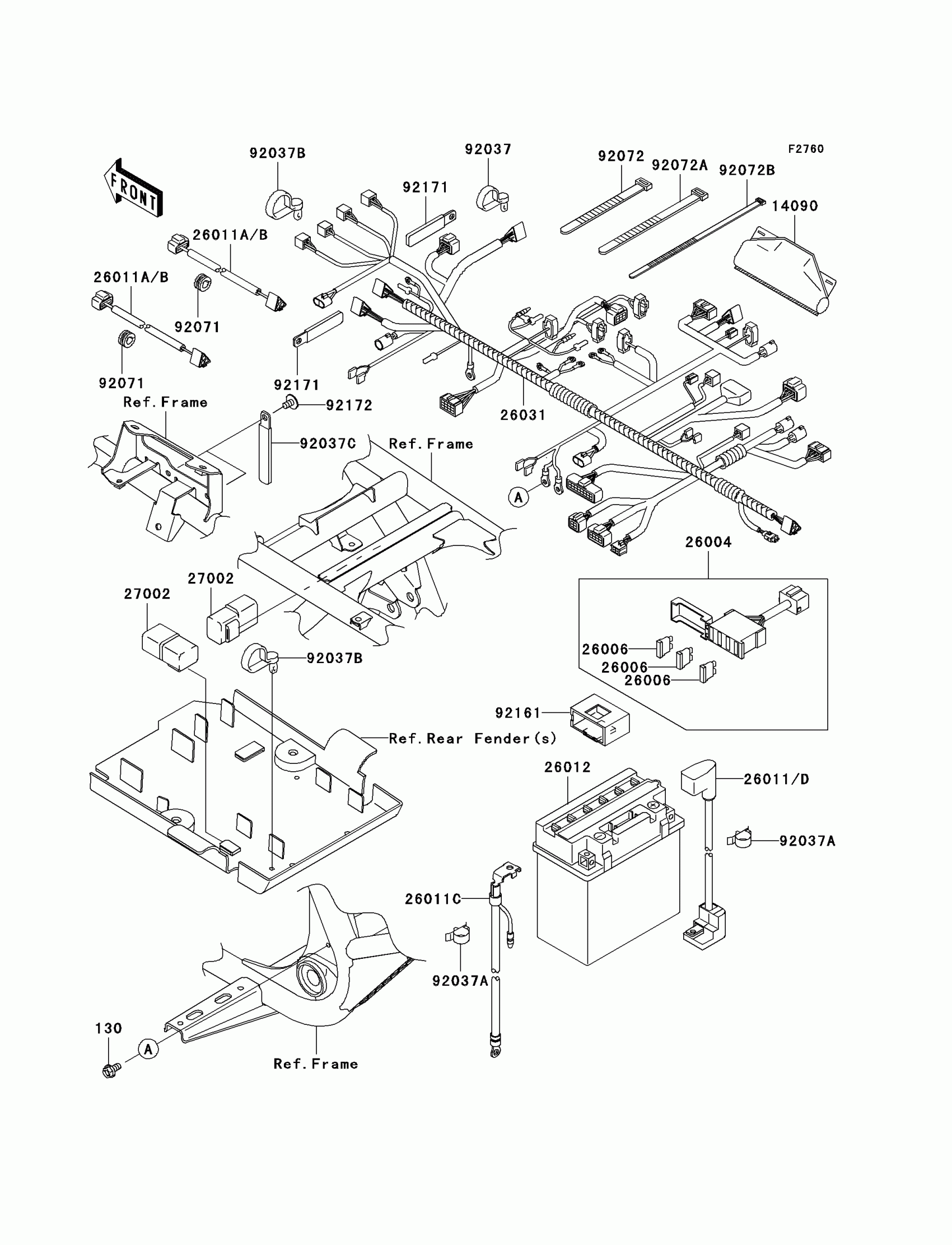

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130AA0612

$0.68

14090

COVER,COUPLER

14090-1331

$8.51

26004

FUSE-ASSY

26004-0010

$43.88

26006

FUSE,BLADE,10A,RED

26006-1007

$4.96

26011

WIRE-LEAD,BATTERY(+)

26011-0142

$53.43

26011A

WIRE-LEAD,HEAD LAMP

26011-0143

$25.34

26011C

WIRE-LEAD,BATTERY(-)

26011-1752

Unavailable

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

Unavailable

26031

HARNESS,MAIN

26031-0375

$389.68

27002

RELAY-ASSY

27002-1086

$36.91

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,HARNESS

92037-1878

$8.12

92037B

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92037C

CLAMP

92037-1993

$5.52

92071

GROMMET

92071-1128

$5.43

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=188

92072-1239

$1.73

92161

DAMPER,FUSE

92161-1136

$10.99

92171

CLAMP,L=60

92171-0652

$2.61

92172

SCREW,6X10

92172-0005

$2.41
