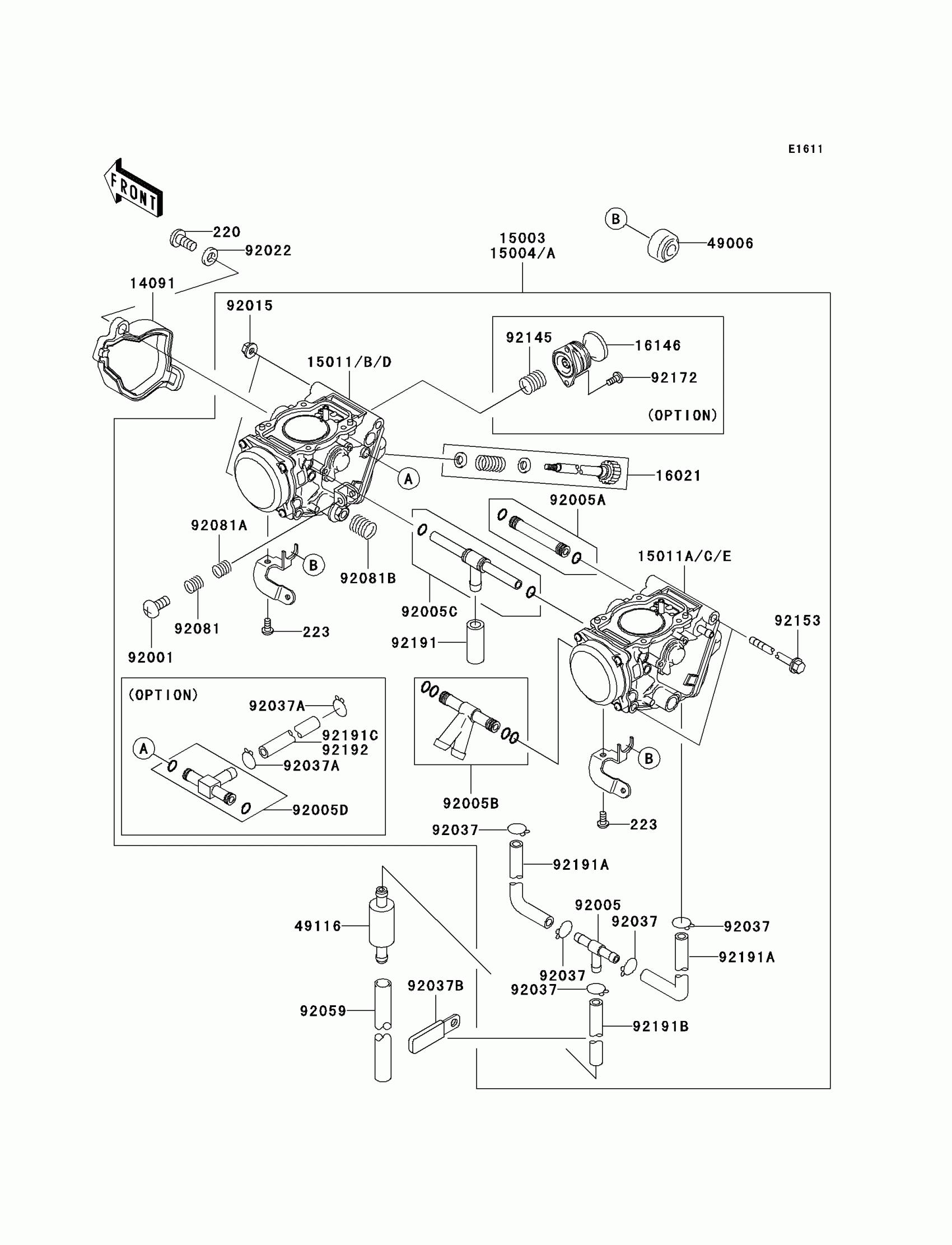

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Carburetor(US) Diagram

Description

Price

14091

COVER,THROTTLE CABLE

14091-1196

$7.45

15003

CARBURETOR-ASSY

15003-0095

$1,394.67

15004A

CARBURETOR-ASSY,CVKR32

15004-0037

$1,396.39

15011B

CARBURETOR,FR

15011-0100

Unavailable

15011C

CARBURETOR,RR

15011-0101

Unavailable

15011D

CARBURETOR,FR

15011-0116

$839.49

15011E

CARBURETOR,RR

15011-0117

$839.49

16021

SCREW-THROTTLE STOP

16021-1238

$70.48

16146

COVER-ASSY,PRIMING

16146-1225

$52.90

49006

BOOT,STARTER CABLE

49006-1353

$3.04

49116

VALVE-ASSY

49116-1126

$16.82

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92005

FITTING,FUEL,T-TYPE

92005-1112

$10.71

92005A

FITTING

92005-1375

$19.71

92005B

FITTING

92005-1376

$18.32

92005C

FITTING

92005-1385

$31.74

92005D

FITTING

92005-1393

$9.46

220

SCREW-PAN-CROS,4X8

220AA0408

$0.63

223

SCREW-PAN-WS-CROS,4X8

223AA0408

$1.00

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92022

WASHER,5.2X13X1

92022-1380

$3.29

92037

CLAMP,TUBE

92037-1201

$3.51

92037A

CLAMP,TUBE

92037-1201

$3.51

92037B

CLAMP,L=45

92037-1539

$4.42

92059

TUBE,7X10X100

92059-1736

$3.40

92081

SPRING

92081-1620

$3.78

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$3.95

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.27

92145

SPRING,PRIMING

92145-1451

$7.76

92153

BOLT,5X143

92153-1068

$7.86

92172

SCREW

92172-0230

$5.17

92191

TUBE,7X11X25

92191-1672

$3.88

92191A

TUBE,4.5X8X65

92191-1673

$3.95

92191B

TUBE,4.5X8X420

92191-1674

$11.10

92192

TUBE,4.5X8.5X3.5

92192-0605

$7.90
