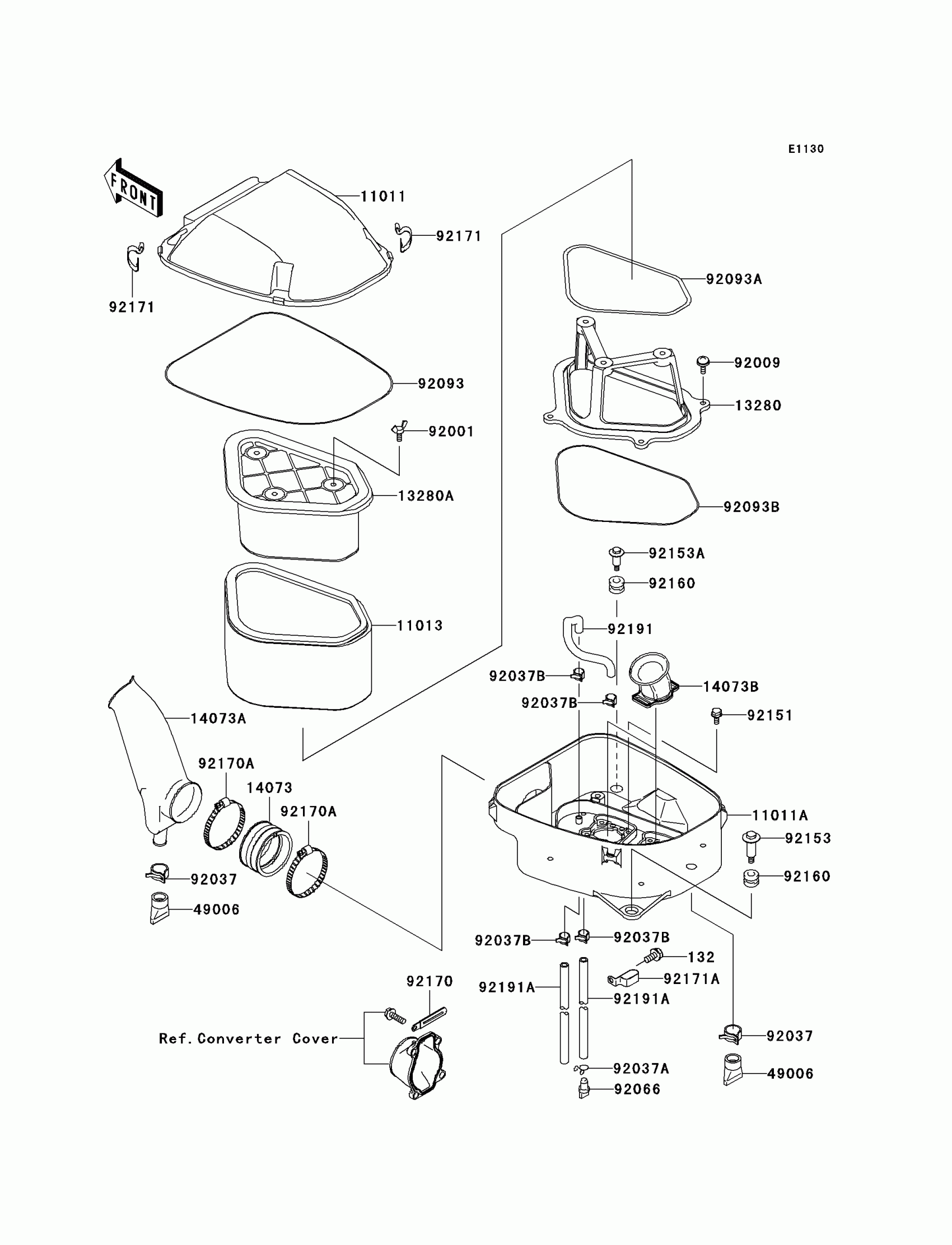

Kawasaki Brute Force 650 4x4 Hardwoods Green HD Air Cleaner Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

11011

CASE-AIR FILTER,UPP

11011-0046

$32.26

11011A

CASE-AIR FILTER,LWR

11011-0047

$37.96

11013

ELEMENT-AIR FILTER

11013-0001

$49.69

13280

HOLDER

13280-0111

$16.63

13280A

HOLDER

13280-1272

$35.62

14073

DUCT,JOINT

14073-1775

$3.32

14073A

DUCT,INTAKE

14073-1778

$22.14

14073B

DUCT,AIR FANNEL

14073-1830

$7.69

49006

BOOT

49006-1292

$5.93

92001

BOLT,WING,6X15

92001-1703

$2.36

92009

SCREW,6X16

92009-1621

Unavailable

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP,TUBE

92037-1505

$3.63

92066

PLUG,DRAIN

92066-1211

$6.48

92093

SEAL,AIR FILTER CASE

92093-1522

$6.28

92093A

SEAL,HOLDER-HOLDER

92093-1569

$7.71

92093B

SEAL

92093-1570

$6.28

92151

BOLT,FLANGED,5X12

92151-1305

$1.20

92153

BOLT,AIR FILTER,LH

92153-1051

$5.15

92153A

BOLT,FLANGED,6X28.7

92153-1052

$5.15

92160

DAMPER

92160-1594

$3.57

92170

CLAMP

92170-1514

$3.29

92170A

CLAMP

92170-1764

$8.62

92171

CLAMP,AIR FILTER CASE

92171-1394

$3.34

92171A

CLAMP,AIR VENT

92171-1522

$5.97

92191

TUBE,7X11X210

92191-1494

$3.88

92191A

TUBE,7X11X470

92191-1531

$7.14
