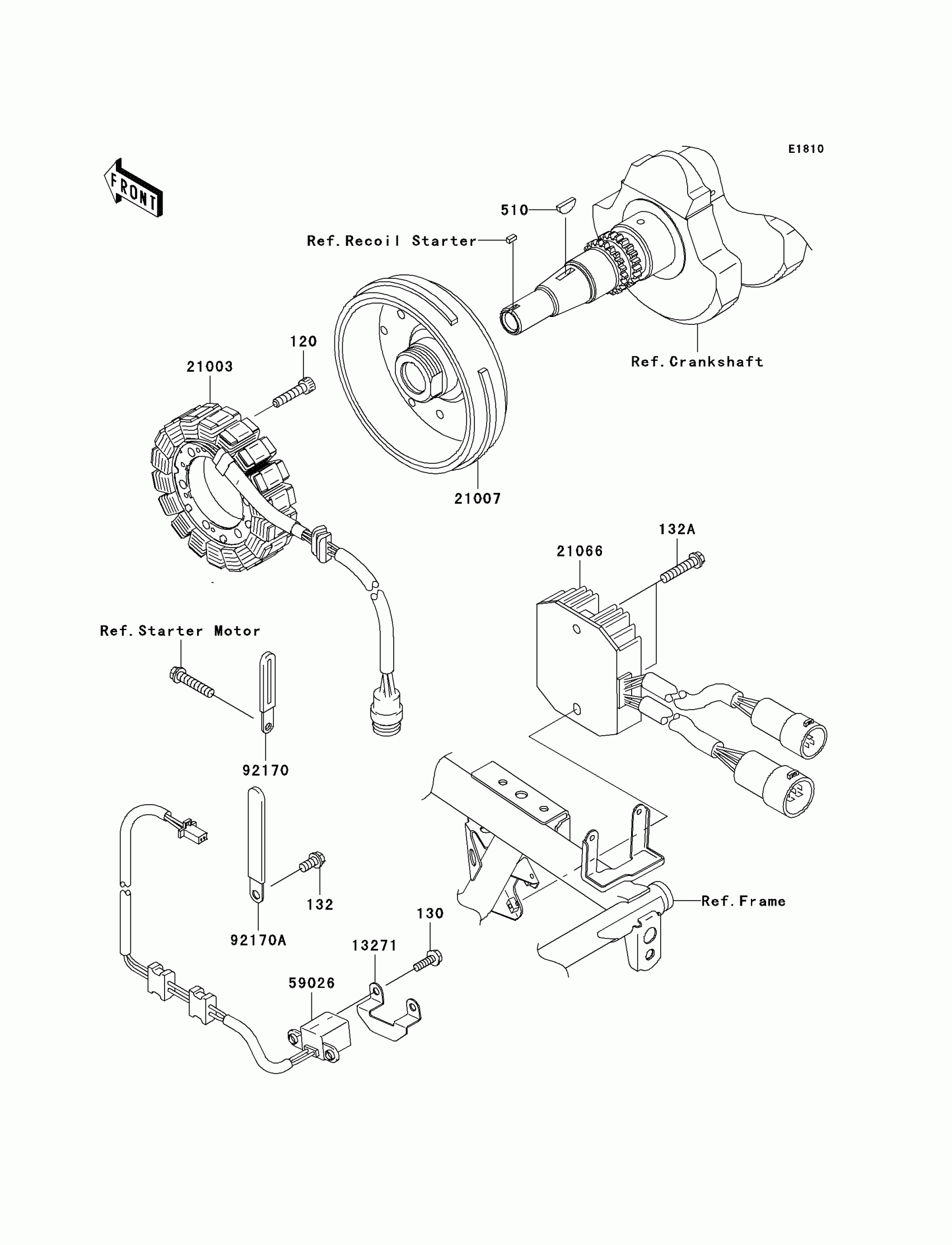

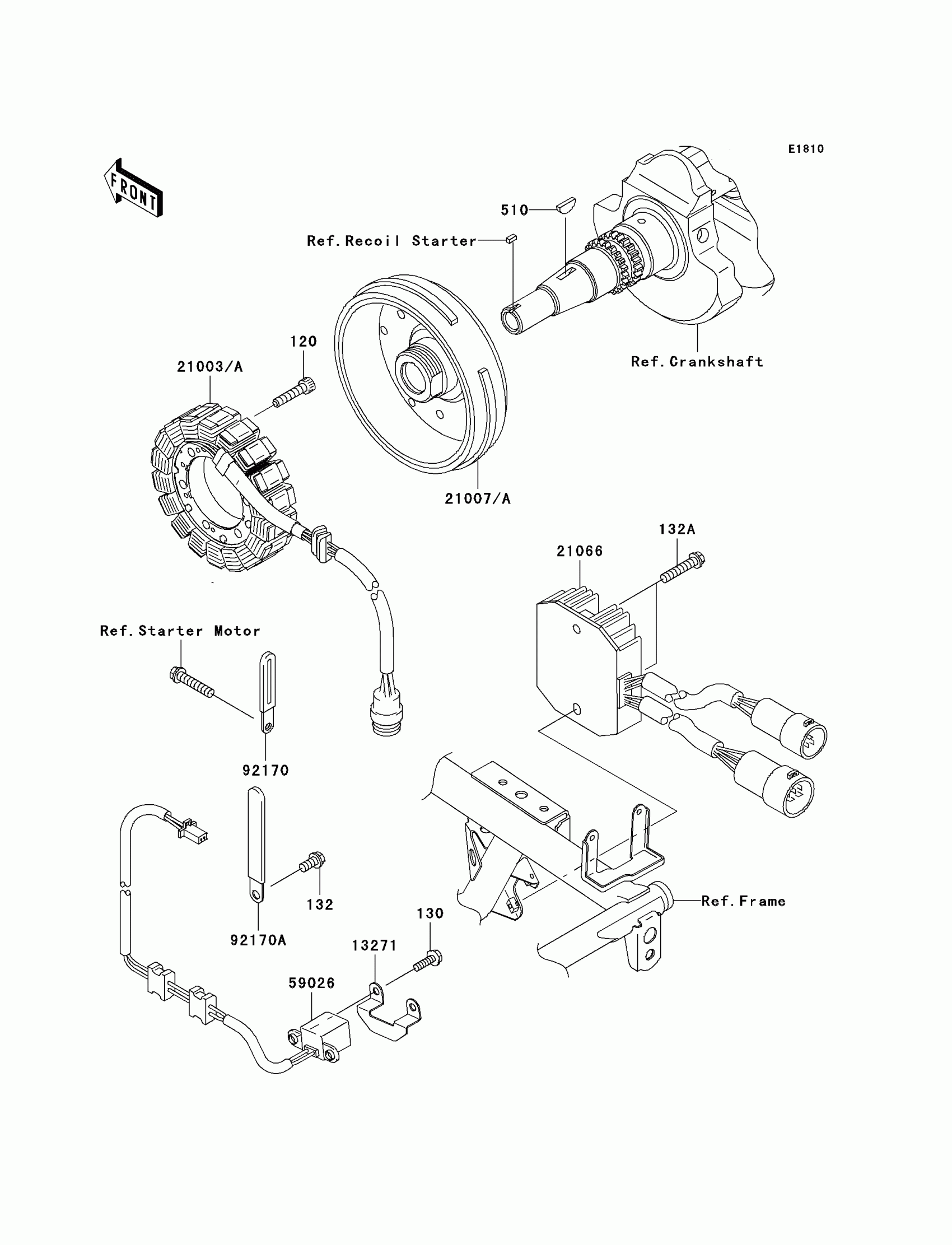

Kawasaki Brute Force® 650 4x4 Generator Diagram

Description

Price

120

BOLT-SOCKET,6X28

120CA0628

$4.99

130

BOLT-FLANGED,5X16

130BA0516

$0.86

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132A

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

510

KEY-WOODRUFF

510A4200

$2.96

13271

PLATE

13271-1369

$2.93

21003

STATOR

21003-0092

$568.34

21007

ROTOR

21007-0130

$603.04

21066

REGULATOR-VOLTAGE

21066-1112

Unavailable

59026

COIL-PULSING

59026-1159

$110.15

92170

CLAMP

92170-1514

$4.31

92170A

CLAMP

92170-1925

$2.40
