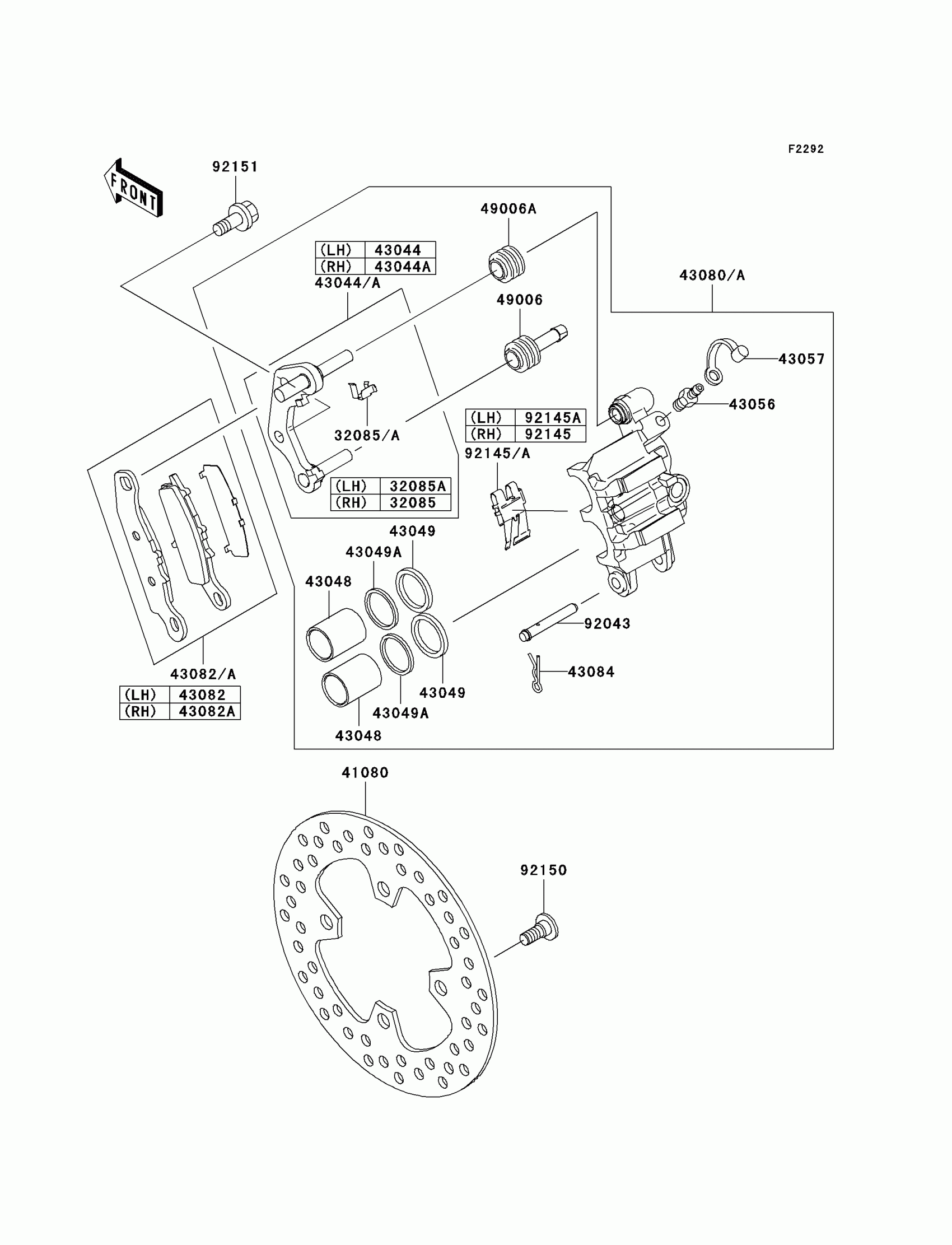

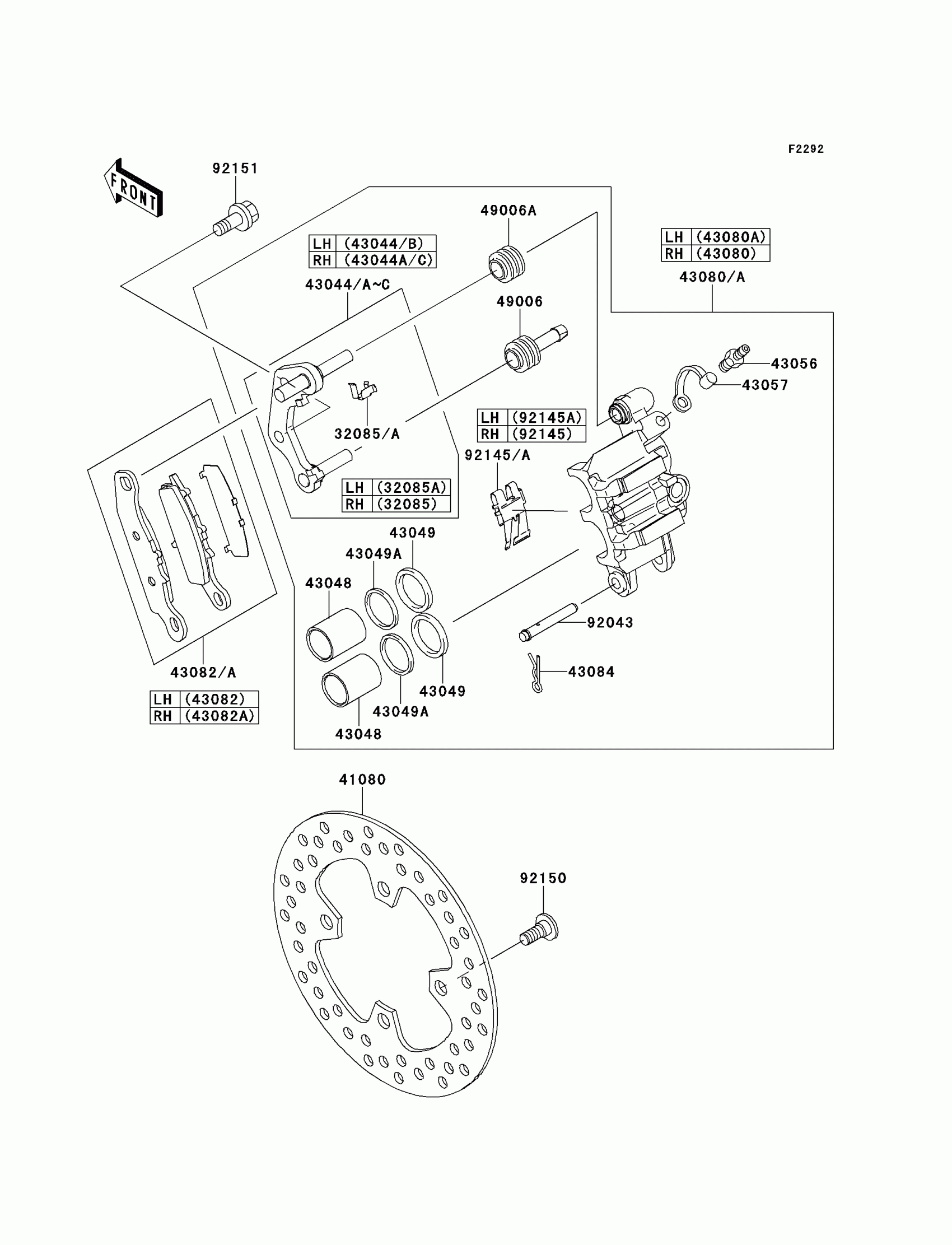

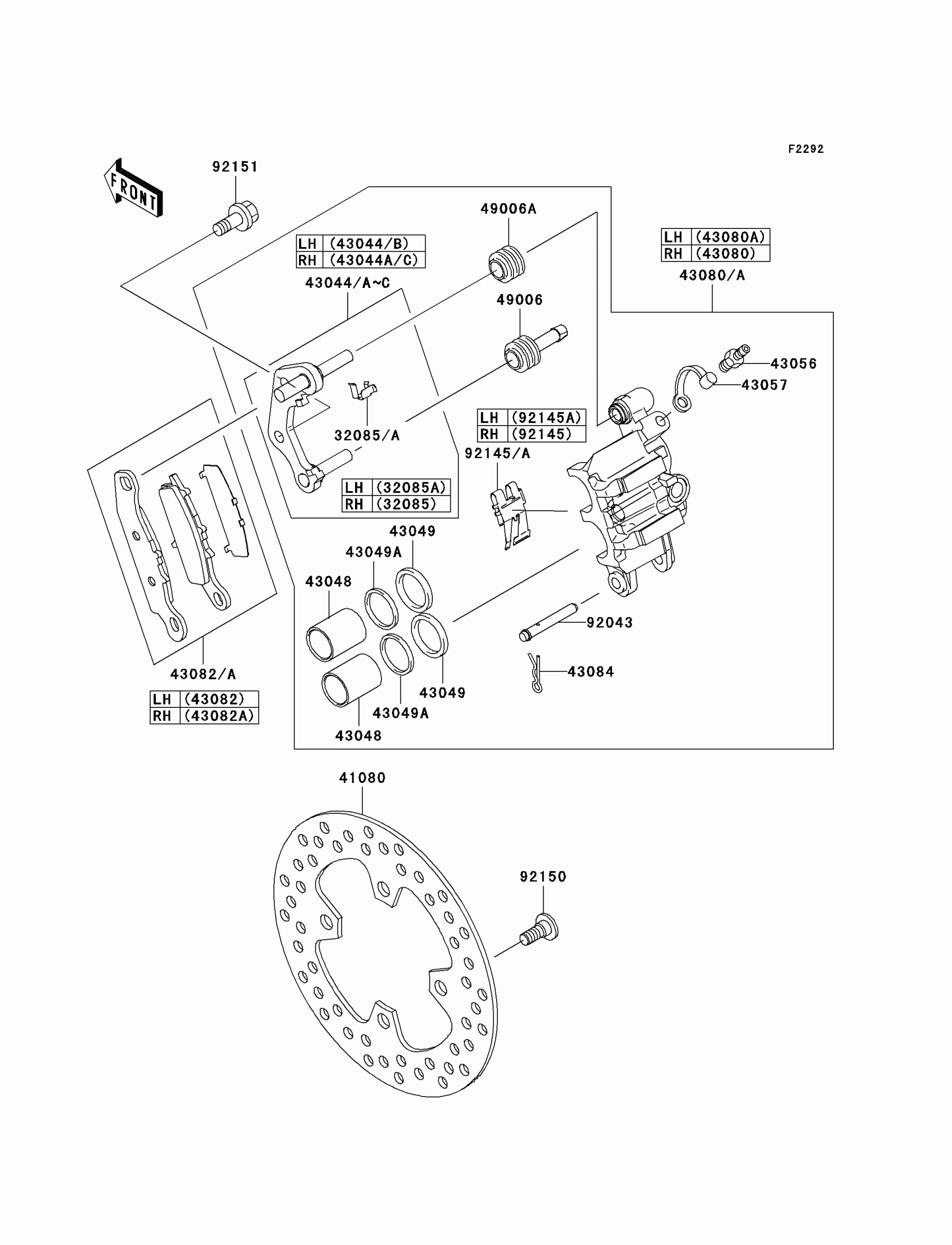

Kawasaki Brute Force 650 4x4 Front Brake Diagram

Description

Price

32085

STOPPER

32085-1437

$13.04

32085A

STOPPER,LH

32085-1517

$7.99

41080

DISC,FR

41080-1513

Unavailable

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1130

Unavailable

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1131

Unavailable

43048

PISTON-CALIPER

43048-1083

$50.28

43049

PACKING,PISTON

43049-1059

$8.51

43049A

PACKING,PISTON SEAL

43049-1090

$6.12

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-5081-DJ

$401.18

43080A

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-5082-DJ

$401.18

43082

PAD-ASSY-BRAKE,LH

43082-1255

$52.84

43082A

PAD-ASSY-BRAKE,RH

43082-1273

$52.84

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

92043

PIN,PAD

92043-1356

$10.65

92145

SPRING,PAD

92145-1260

$15.40

92145A

SPRING,PAD,LH

92145-1354

$9.78

92150

BOLT,SOCKET,8X20

92150-1800

$7.29

92151

BOLT,FLANGED,8X19

92151-1793

$2.45
