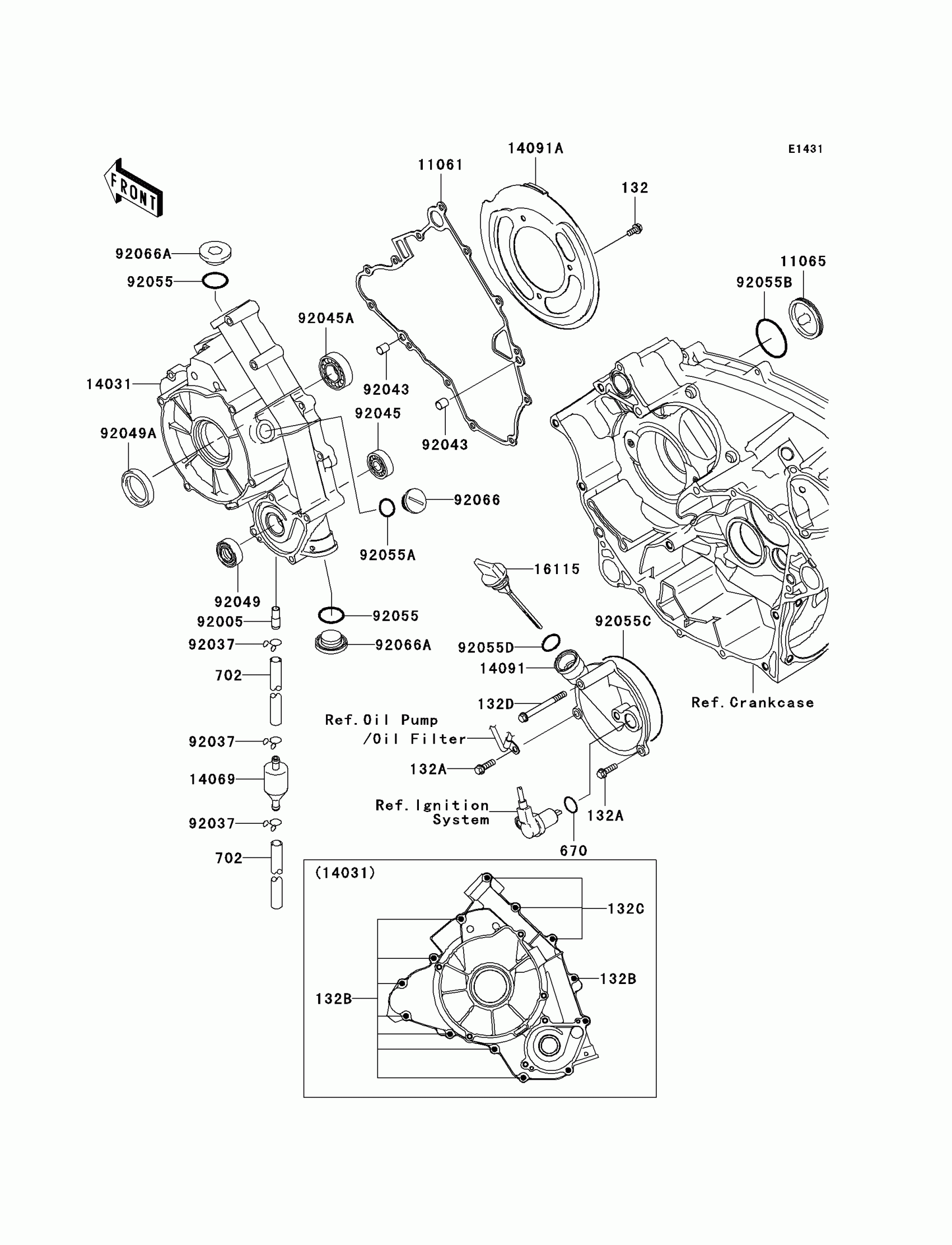

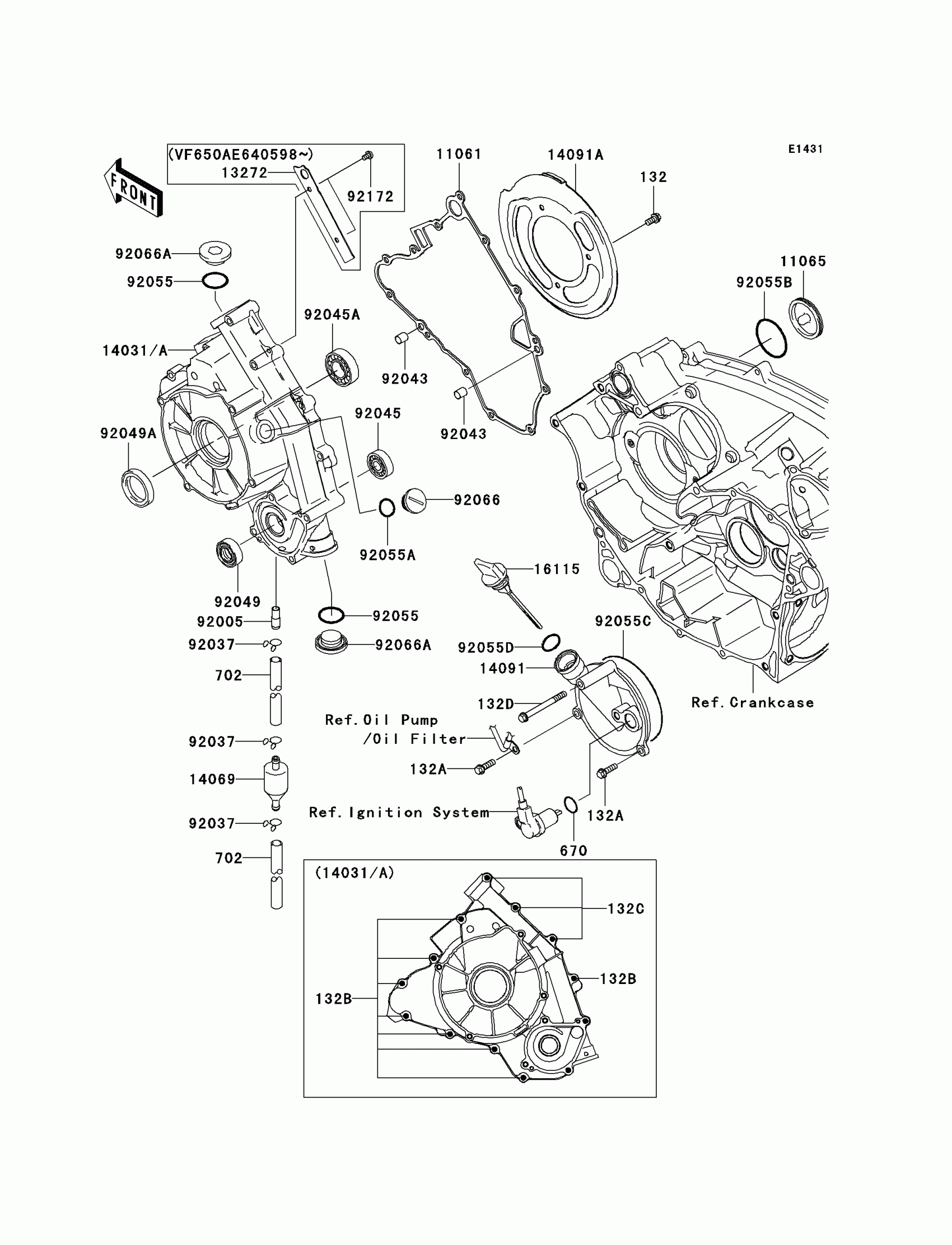

Kawasaki Brute Force® 650 4x4 Engine Cover(s) Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132A
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
132B
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
132C
BOLT-FLANGED-SMALL,6X55
132BD0655
$5.05
132D
BOLT-FLANGED-SMALL,6X65
132BD0665
$4.76
670
O RING,18MM
670D2018
$1.91
702
TUBE-RUBBER,7X10X35
702A07035
$3.40
11061
GASKET
11061-1119
$21.13
11065
CAP
11065-1151
$16.26
13272
PLATE
13272-0707
Unavailable
14031A
COVER-GENERATOR
14031-0112
Unavailable
14069
BREATHER
14069-1051
$10.19
14091
COVER
14091-1365
$73.61
14091A
COVER,BELT CONVERTER
14091-1571
$21.80
16115
CAP-OIL FILLER
16115-1072
$14.87
92005
FITTING
92005-1369
$7.56
92037
CLAMP,TUBE
92037-147
$7.34
92043
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,6901
92045-0084
$24.87
92045A
BEARING-BALL,TMB004JR2CM
92045-0086
$16.60
92049
SEAL-OIL,SC 12X22X5
92049-1228
$9.28
92049A
SEAL-OIL,HTC 28X45X7
92049-1576
$14.71
92055
RING-O,25.7X2.4
92055-1136
$5.00
92055A
RING-O,20X2
92055-1146
$8.58
92055B
RING-O,44.7X2.4
92055-1279
$7.34
92055C
RING-O,99.5X2.0
92055-1632
$11.16
92055D
RING-O,20X3
92055-2185
$1.03
92066
PLUG,COVER
92066-0011
$15.94
92066A
PLUG,25X8
92066-0012
$11.70
92172
SCREW,5X8
92172-0119
$2.12
