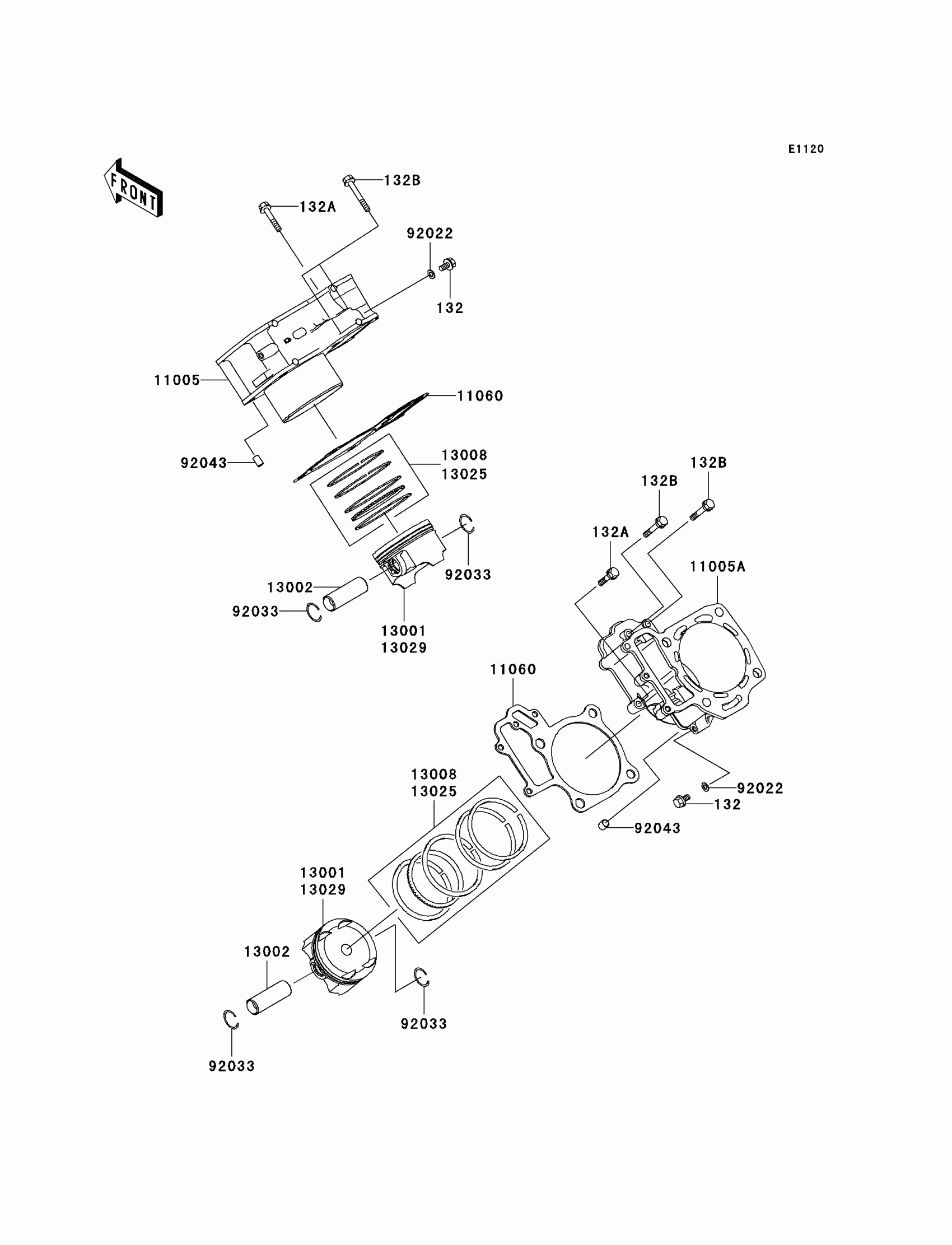

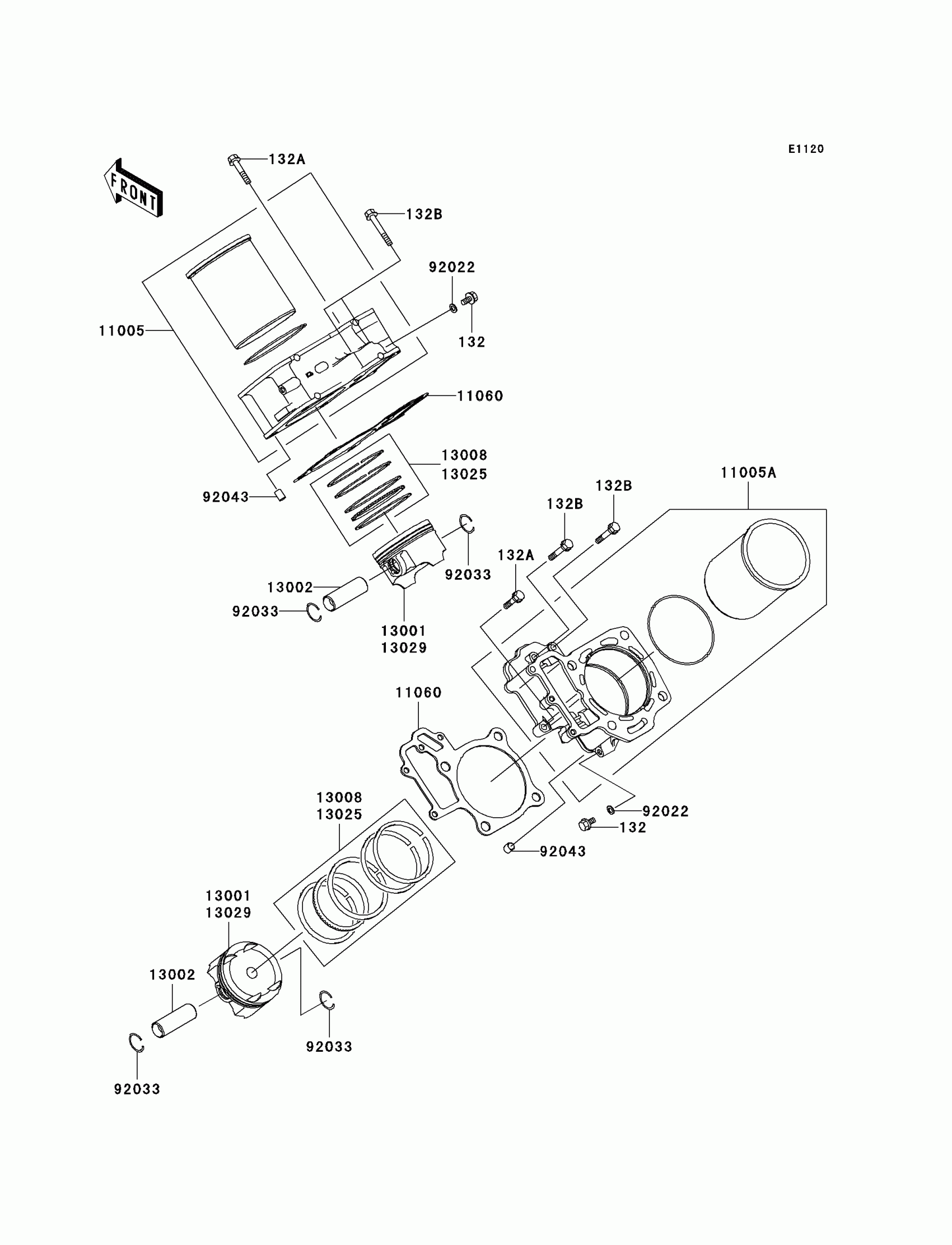

Kawasaki Brute Force 650 4x4 Cylinder/Piston(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

$3.41

132B

BOLT-FLANGED-SMALL,6X40

132Y0640

$4.80

11005

CYLINDER-ENGINE,FR

11005-1918

Unavailable

11005A

CYLINDER-ENGINE,RR

11005-1920

Unavailable

11060

GASKET,CYLINDER BASE

11060-1965

$21.01

13001

PISTON-ENGINE

13001-1574

$122.15

13002

PIN-PISTON

13002-1060

$22.21

13008

RING-SET-PISTON

13008-1198

$68.30

13025

RING-SET-PISTON L,O/S 0.50

13025-0001

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-0001

Unavailable

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP

92033-1207

$2.38

92043

PIN,10.1X12X14

92043-4009

$6.22
