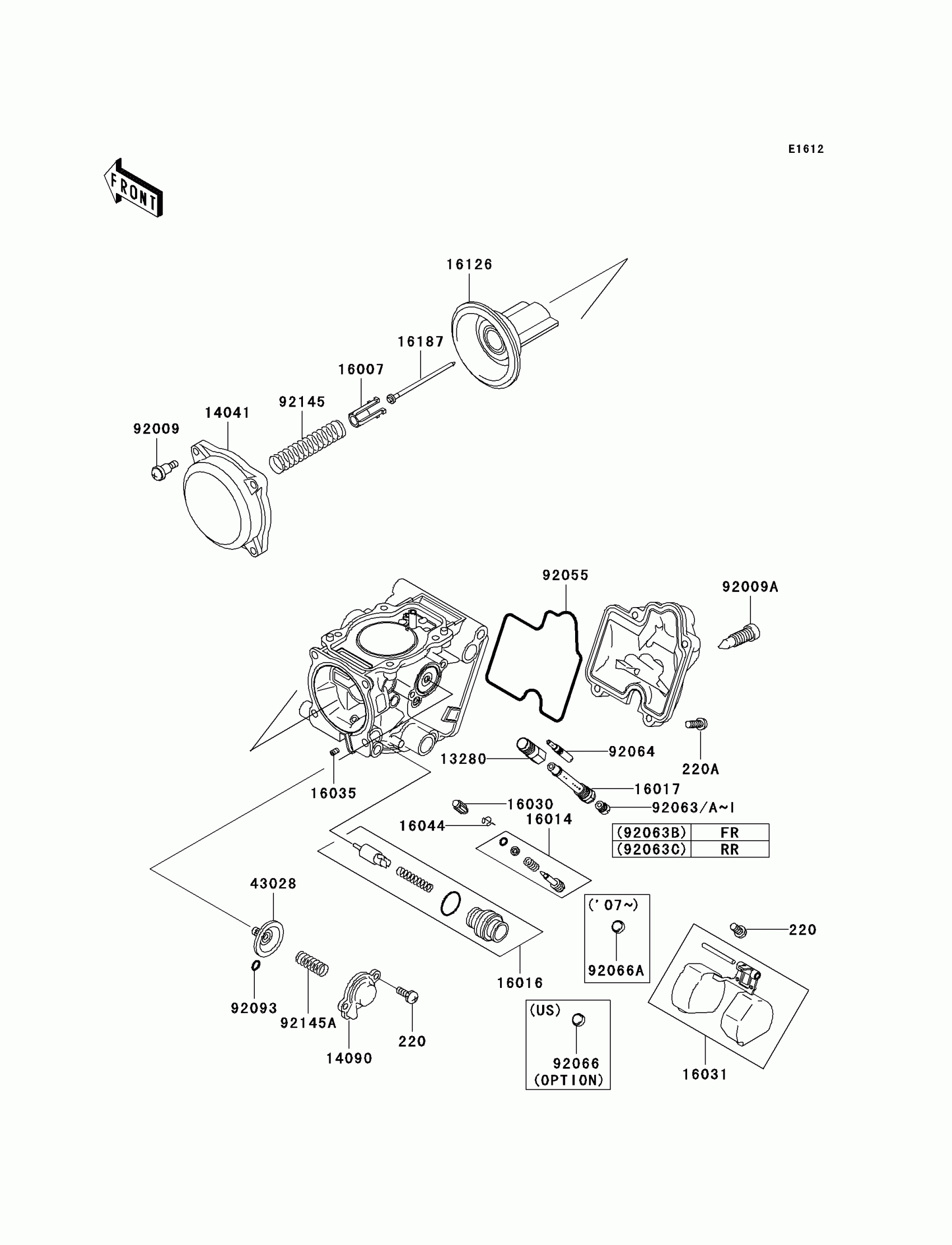

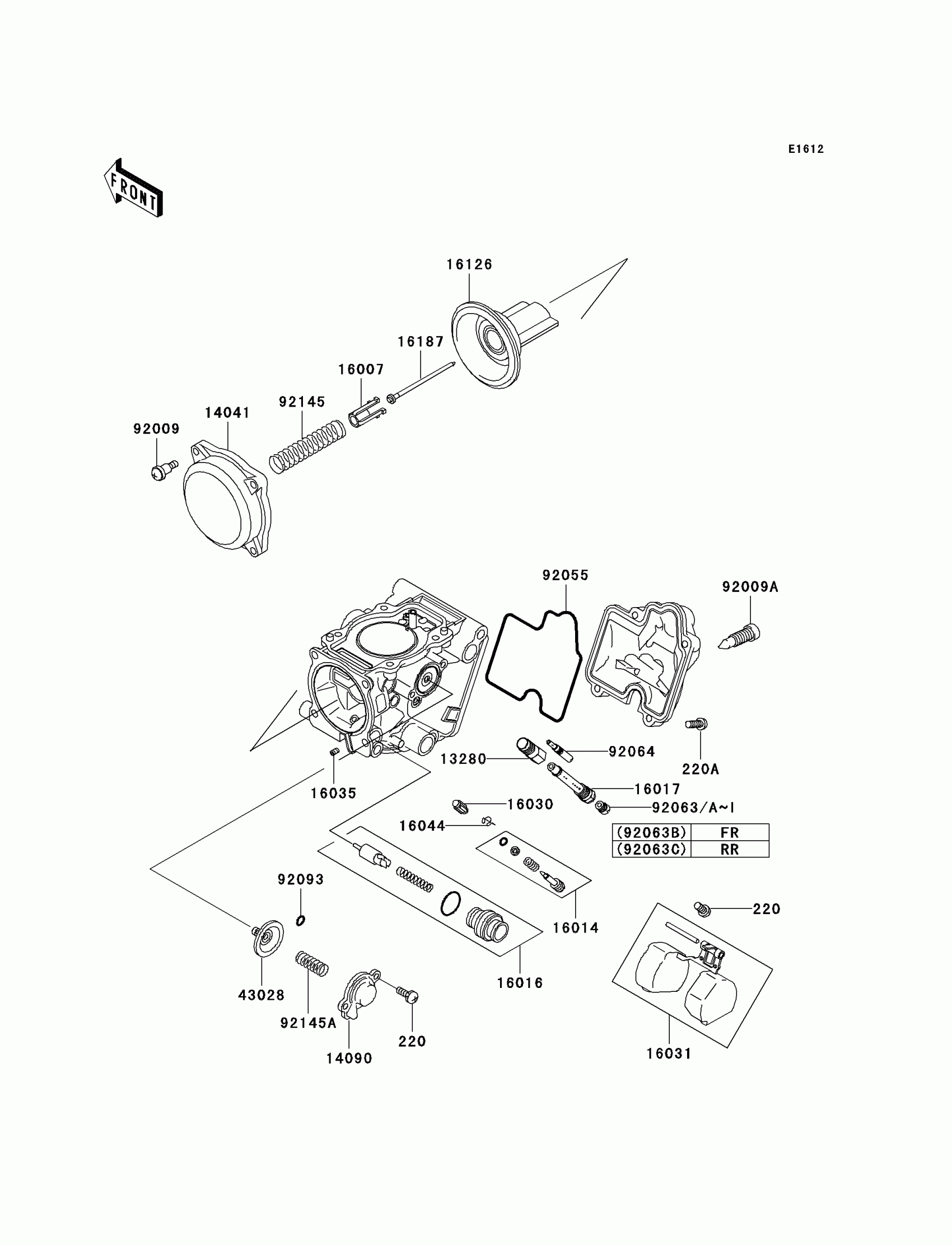

Kawasaki Brute Force 650 4x4 Carburetor Parts Diagram

#

Description
Price

13280

HOLDER,JET

13280-1096

$29.82

14041

CAP-CHAMBER,MIXING

14041-1090

$58.49

14090

COVER,AIR CUT VALVE

14090-1984

$22.25

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$26.23

16014

SCREW-PILOT AIR

16014-1105

$24.63

16016

PLUNGER

16016-1117

$64.19

16017

JET-NEEDLE

16017-1441

$49.39

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1097

$59.28

16035

JET-AIR,LEAK

16035-1055

$15.74

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE,VACUUM

16126-1226

$168.18

16187

NEEDLE-JET,NAZH

16187-1199

$35.95

43028

DIAPHRAGM,AIR CUT VALVE

43028-1085

$27.45

92009

SCREW,4X4.4

92009-1549

$5.24

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1589

$32.69

92063

JET-MAIN,#140

92063-1013

Unavailable

92063A

JET-MAIN,#135

92063-1014

Unavailable

92063B

JET-MAIN,#138

92063-1015

$14.10

92063C

JET-MAIN,#142

92063-1016

$14.10

92063D

JET-MAIN,#145

92063-1017

Unavailable

92063E

JET-MAIN,#125

92063-1069

Unavailable

92063F

JET-MAIN,#128

92063-1074

Unavailable

92063G

JET-MAIN,#130

92063-1075

Unavailable

92063H

JET-MAIN,#132

92063-1076

Unavailable

92063I

JET-MAIN,#148

92063-1324

Unavailable

92064

JET-PILOT,#40

92064-1232

$19.07

220

SCREW-PAN-CROS,4X8

220D0408

$0.68

220A

SCREW-PAN-CROS,4X14

220D0414

$4.60

92093

SEAL-"U"RING

92093-1046

$6.51

92145

SPRING,VACUUM VALVE

92145-1227

$25.14

92145A

SPRING,AIR CUT VALVE

92145-1450

$7.91
