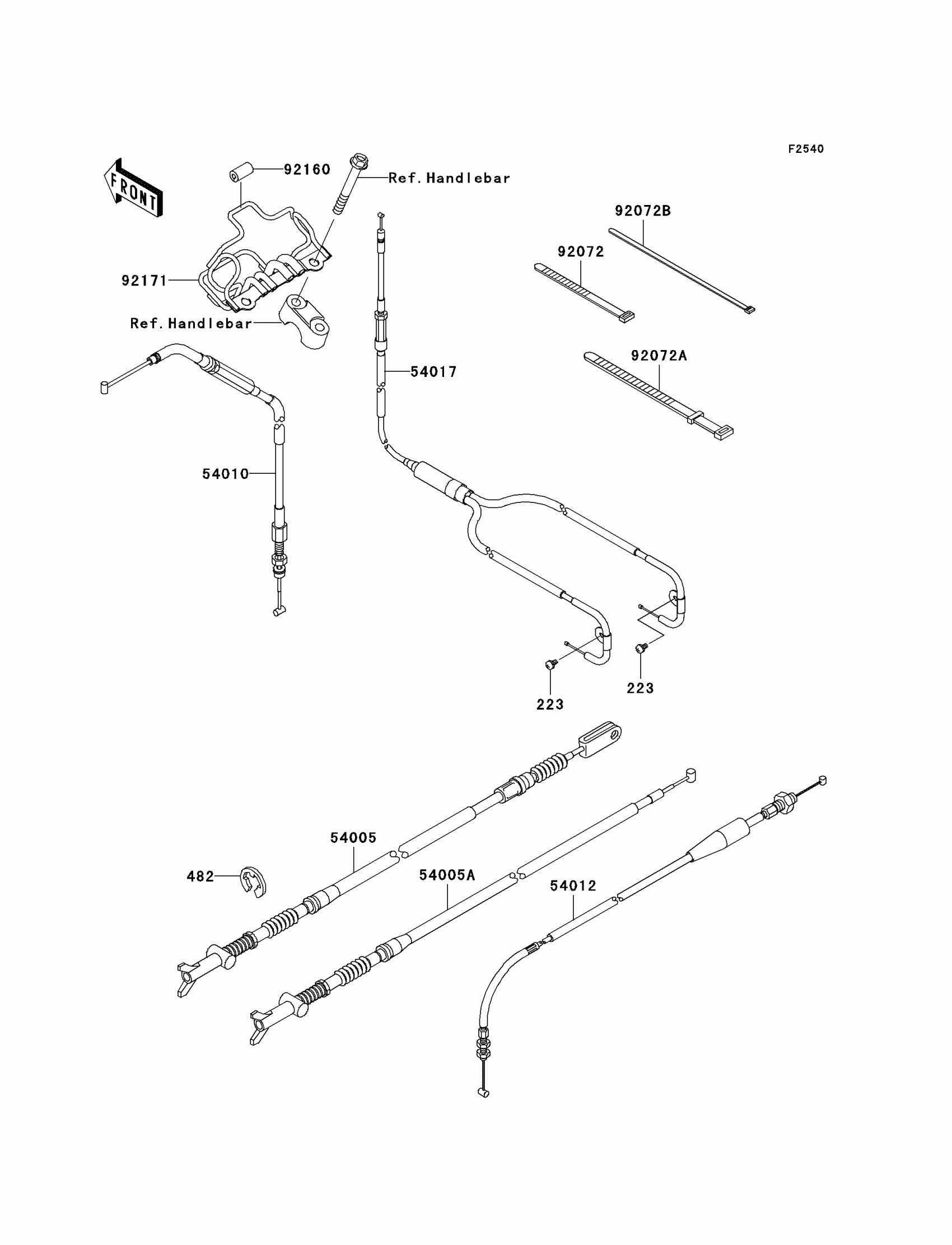

Kawasaki Brute Force® 650 4x4 Cables Diagram

Description

Price

223

SCREW-PAN-WS-CROS,4X8

223AA0408

$1.28

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68

54005

CABLE-BRAKE,REAR

54005-0019

$28.19

54005A

CABLE-BRAKE,PARKING

54005-0020

$28.19

54010

CABLE,FRONT DIFF LOCK

54010-0027

$79.90

54012

CABLE-THROTTLE

54012-0124

$35.95

54017

CABLE-STARTER

54017-0022

$90.07

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=186

92072-056

$5.00

92072B

BAND,L=188

92072-1239

$1.73

92160

DAMPER,4.5X11X20

92160-1074

$7.45

92171

CLAMP,BREATHER TUBE

92171-0378

$78.73
