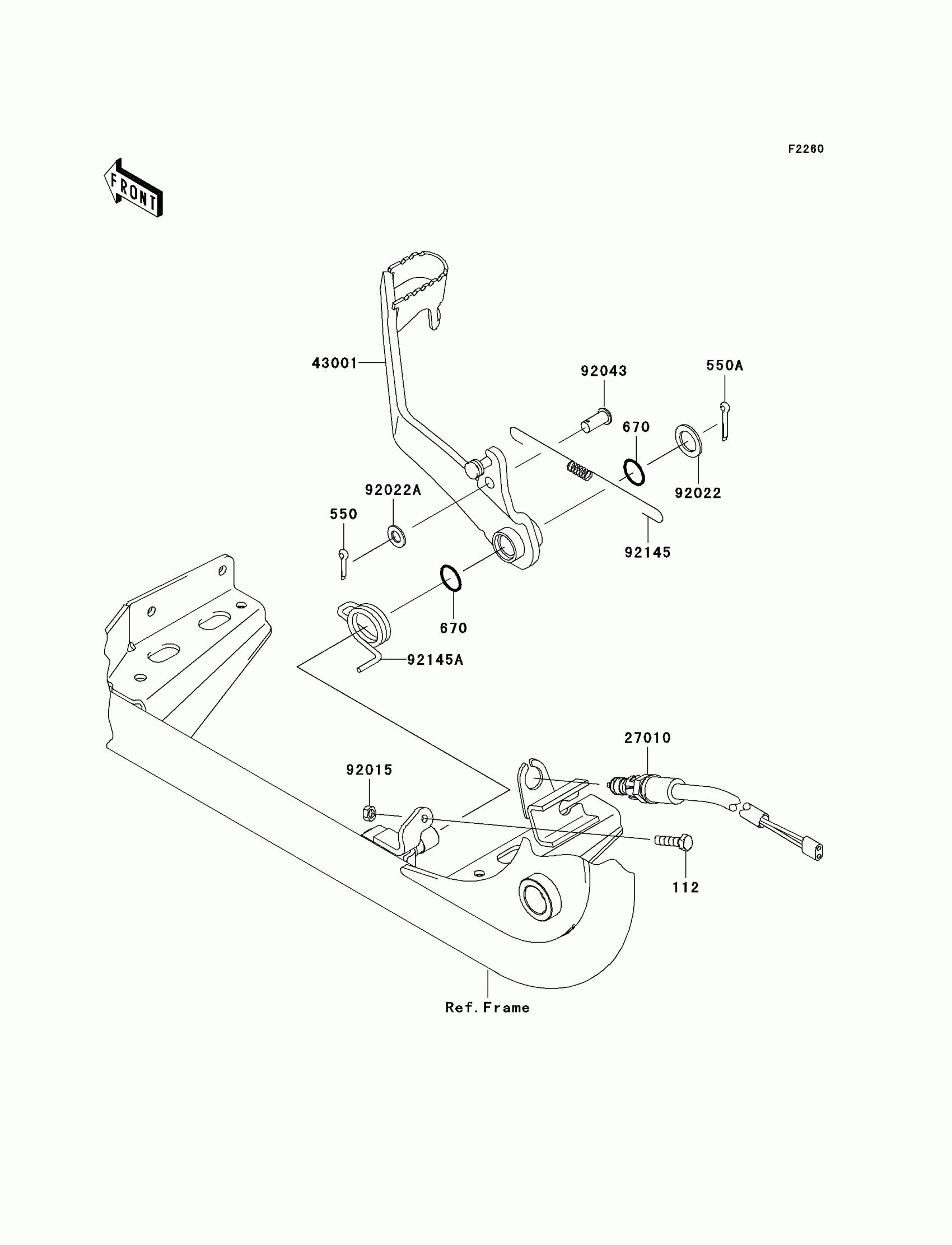

Kawasaki Brute Force® 650 4x4 Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112AA0622

$4.62

550

PIN-COTTER,2.0X15

550AA2015

$1.12

550A

PIN-COTTER,2.0X22

550AA2022

$2.51

670

O RING,15MM

670B2015

$1.42

27010

SWITCH,BRAKE

27010-1494

$50.49

43001

LEVER-BRAKE,PEDAL

43001-0092

$64.10

92015

NUT,6MM

92015-1410

$3.92

92022

WASHER,15.5X24X1.6

92022-1049

$6.57

92022A

WASHER,8.5X16X1.2

92022-1582

$0.96

92043

PIN,8X16

92043-1013

$9.91

92145

SPRING,BRAKE SWITCH

92145-0056

$3.96

92145A

SPRING,BRAKE PEDAL RETURN

92145-1421

$5.43
