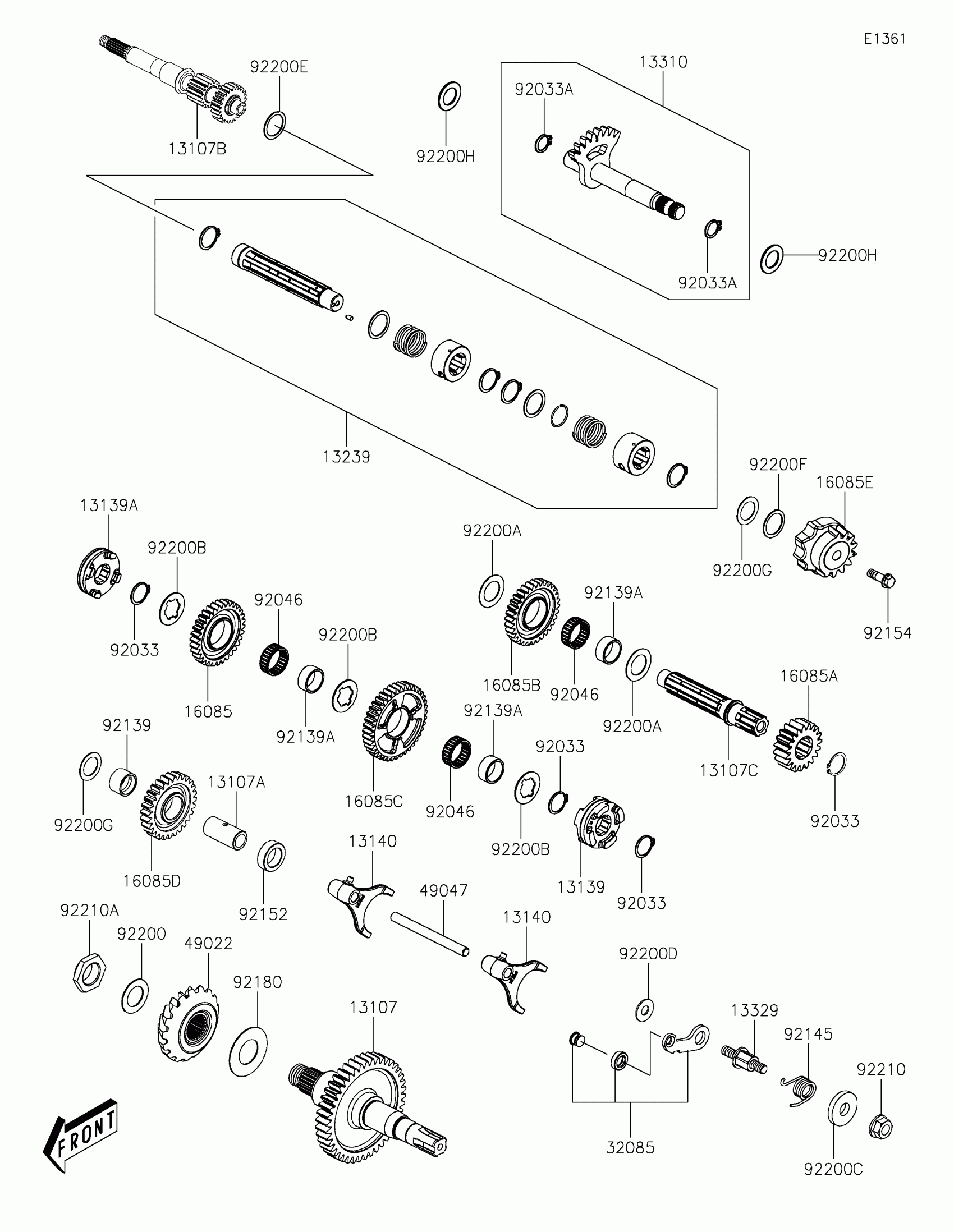

Kawasaki Brute Force 450 Transmission Diagram

#

Description
Price

13107

SHAFT,MAIN

13107-Y032

$107.58

13107A

SHAFT,BACKWARD IDLE

13107-Y033

$12.89

13107B

SHAFT,DRIVE

13107-Y034

$191.40

13107C

SHAFT,COUNTER

13107-Y035

$58.65

13139

SHIFTER,FORWARD&LOW

13139-Y006

$55.06

13139A

SHIFTER,BACKWARD

13139-Y007

$50.13

13140

FORK-SHIFT

13140-Y005

$85.59

13239

DRUM-ASSY-CHANGE

13239-Y003

$138.68

13310

SHAFT-ASSY,DRUM SHIFT

13310-Y006

$22.90

13329

SUPPORT,DRUM SHIFT STOPPER

13329-Y001

$9.63

16085

GEAR,BACKWARD DRIVEN,32T

16085-Y020

$71.76

16085A

GEAR,FORWARD DRIVEN,19T

16085-Y021

$52.20

16085B

GEAR,FORWARD DRIVEN,33T

16085-Y022

$132.88

16085C

GEAR,LOWER DRIVEN,40T

16085-Y023

$73.75

16085D

GEAR,BACKWARD IDLE,28T

16085-Y024

$69.64

16085E

GEAR,DRUM SHIFT

16085-Y025

$20.55

32085

STOPPER,DRUM SHIFT

32085-Y007

$10.01

49022

GEAR-BEVEL,DRIVE

49022-Y008

$65.31

49047

ROD-SHIFT

49047-Y002

$10.01

92033

RING-SNAP,25MM

92033-Y023

$1.48

92033A

RING-SNAP,12MM

92033-Y055

$2.04

92046

BEARING-NEEDLE,30X35X12.8

92046-Y013

$19.36

92139

BUSHING,BACKWARD IDLE GEAR

92139-Y018

$14.11

92139A

BUSHING

92139-Y019

$12.53

92145

SPRING

92145-Y082

$5.03

92152

COLLAR,20X30X9.5

92152-Y082

$12.89

92154

BOLT,FLANGE,6X25

92154-Y130

$0.68

92180

SHIM

92180-Y082

$4.90

92200

WASHER,20MM

92200-Y030

$3.09

92200A

WASHER,25MM

92200-Y033

$3.39

92200B

WASHER,25MM

92200-Y034

$3.49

92200C

WASHER,6X17X23

92200-Y059

$2.15

92200D

WASHER,6.1MM

92200-Y114

$2.04

92200E

WASHER,25X32X1

92200-Y117

$3.17

92200F

WASHER,THRUST,20M

92200-Y118

$1.70

92200G

WASHER,THRUST,20M

92200-Y119

$2.04

92200H

WASHER,12X20X1

92200-Y120

$2.17

92210

NUT,6MM

92210-Y027

$0.79

92210A

NUT,20MM

92210-Y104

$12.53
