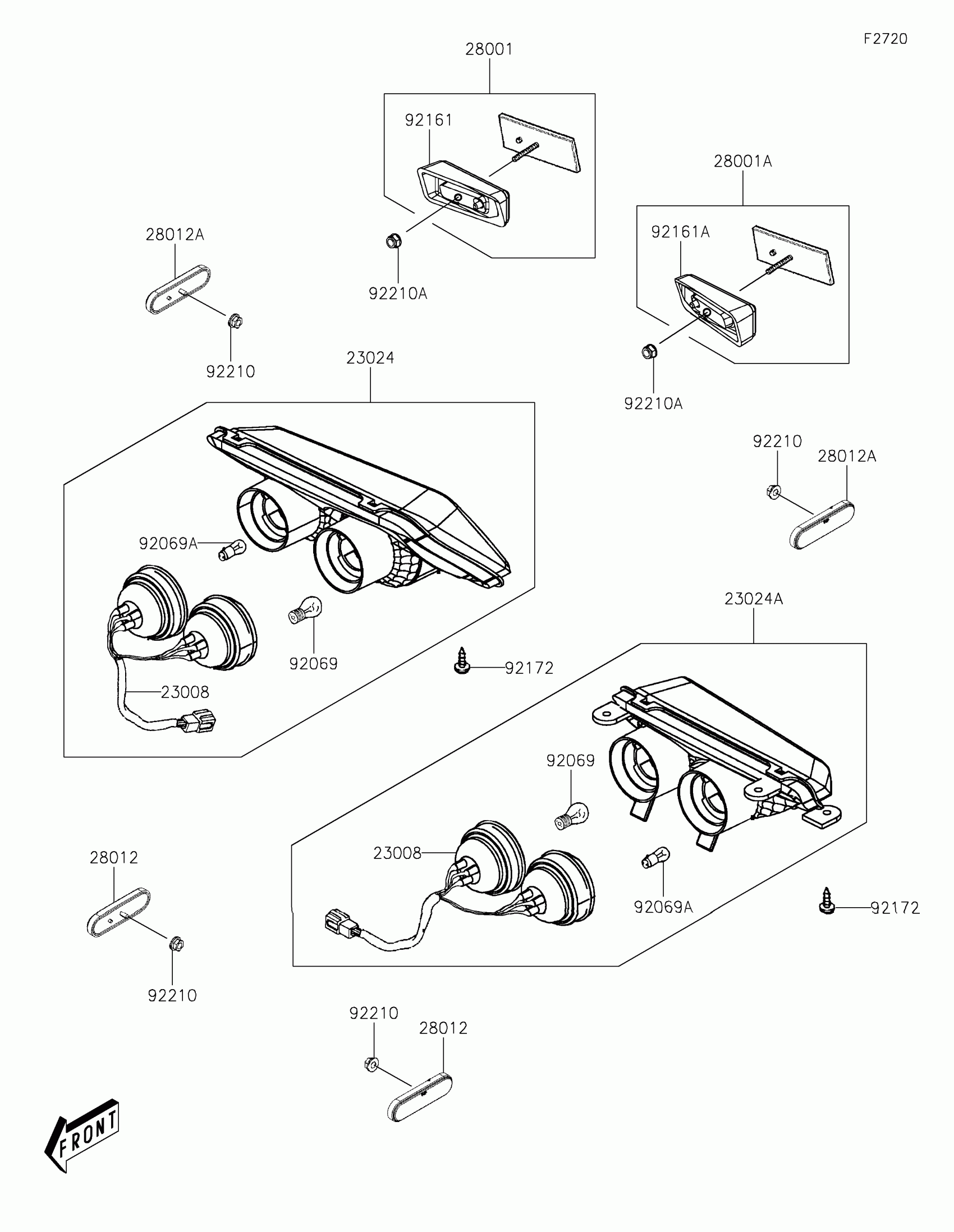

Kawasaki Brute Force 450 Taillight(s) Diagram

Description

Price

23008

SOCKET-ASSY,TAIL LAMP

23008-Y020

$34.85

23024

LAMP-ASSY-TAIL,RH

23024-Y004

$60.73

23024A

LAMP-ASSY-TAIL,LH

23024-Y005

$60.73

28001

REFLECTOR-ASSY-REFLEX,RR,RH

28001-Y001

$21.05

28001A

REFLECTOR-ASSY-REFLEX,RR,LH

28001-Y002

$21.05

28012

REFLECTOR-REFLEX

28012-Y005

$8.29

28012A

REFLECTOR-REFLEX

28012-Y006

$8.29

92069

BULB

92069-Y001

$6.43

92069A

BULB,12V 5W

92069-Y004

$9.27

92161

DAMPER,REFLECTOR,RR,RH

92161-Y060

$13.49

92161A

DAMPER,REFLECTOR,RR,LH

92161-Y061

$13.49

92172

SCREW,TAPPING,5X12

92172-Y038

$1.74

92210

NUT,6MM

92210-Y027

$0.79

92210A

NUT,FLANGE,5MM

92210-Y053

$0.96
