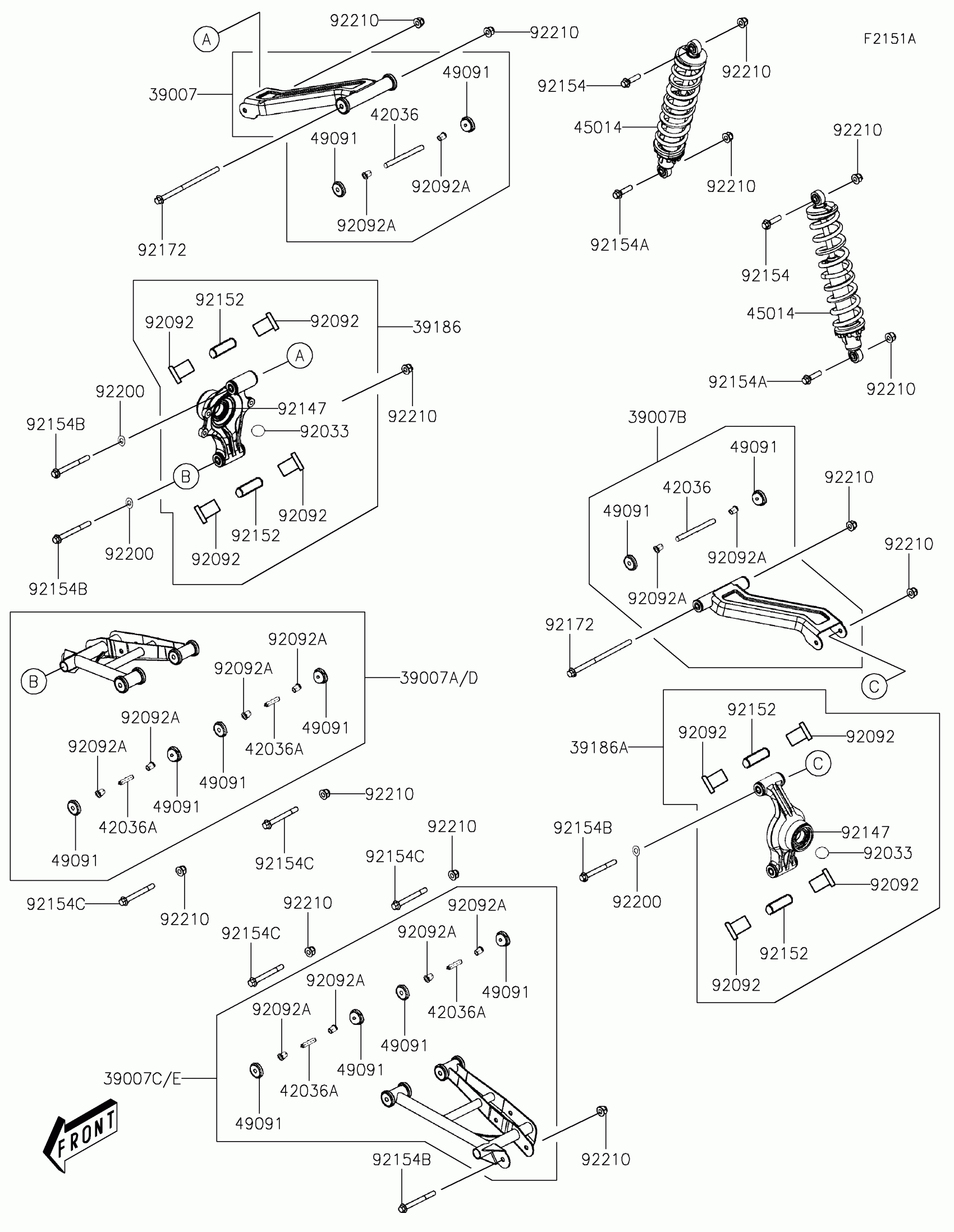

Kawasaki Brute Force 450 Suspension/Shock Absorber(Rear) Diagram

Description

Price

39007

ARM-SUSP,RR,UPP,RH,P.C.BLACK

39007-Y022-945

$73.61

39007A

ARM-SUSP,RR,LWR,RH,P.C.BLACK

39007-Y023-945

$107.58

39007B

ARM-SUSP,RR,UPP,LH,P.C.BLACK

39007-Y024-945

$73.61

39007C

ARM-SUSP,RR,LWR,LH,P.C.BLACK

39007-Y025-945

$107.58

39007D

ARM-SUSP,RR,LWR,RH,P.C.BLACK

39007-Y026-945

$107.58

39007E

ARM-SUSP,RR,LWR,LH,P.C.BLACK

39007-Y027-945

$107.58

39186

KNUCKLE,RR,RH

39186-Y013

$215.14

39186A

KNUCKLE,RR,LH

39186-Y014

$215.14

42036

SLEEVE,RR SUSPENSION,UPP

42036-Y004

$16.75

42036A

SLEEVE,RR SUSPENSION,LWR

42036-Y006

$9.37

45014

SHOCKABSORBER,RR,P.C.BLACK

45014-Y013-945

$192.92

49091

WASHER-SEAL,SUSPENSION

49091-Y001

$4.90

92033

RING-SNAP,55MM

92033-Y060

$5.61

92092

BUSHING-RUBBER,RR SUSPENSION

92092-Y009

$14.65

92092A

BUSHING-RUBBER,FR SUSPENSION

92092-Y010

$4.60

92147

BEARING,WHEEL

92147-Y004

$71.39

92152

COLLAR,RR SUSPENSION

92152-Y091

$21.69

92154

BOLT,FLANGE,10X40

92154-Y149

$4.39

92154A

BOLT,FLANGE,10X65

92154-Y251

$2.84

92154B

BOLT,FLANGE,10X95

92154-Y252

$5.30

92154C

BOLT,FLANGE,10X85

92154-Y254

$8.06

92172

SCREW,10X180

92172-Y107

$18.82

92200

WASHER,16MM

92200-Y131

$1.70

92210

NUT,10MM

92210-Y009

$3.12
